OWNER'S MANUAL
24V PRINCESS CARRIAGE
this manual contains important safety
maintenance information
first ride or allowing your child to ride your new electric
-
.
ride
on toy
keep the manual handy for future reference
DO NOT RETURN THIS ITEM TO THE STORE
CONTACT DYNACRAFT CUSTOMER SERVICE FOR ASSISTANCE
FOR AGES 3+
MAXIMUM WEIGHT: TOTAL 130 lb (59 kg), 65 lb (29.5 kg) per seat
NOTE: Illustrations in this Manual are for reference purposes only and may not reflect the
exact appearance of the actual product. Specifications are subject to change without notice.
.
read the manual before taking your
dynacraftwheels.com/contact
or 1-800-551-0032 8
,
performance and
– 5
ET
AM
PM
.
Advertisement
Table of Contents
Related Manuals for Dynacraft 24V PRINCESS CARRIAGE
Summary of Contents for Dynacraft 24V PRINCESS CARRIAGE
- Page 1 DO NOT RETURN THIS ITEM TO THE STORE CONTACT DYNACRAFT CUSTOMER SERVICE FOR ASSISTANCE dynacraftwheels.com/contact or 1-800-551-0032 8 – 5 FOR AGES 3+ MAXIMUM WEIGHT: TOTAL 130 lb (59 kg), 65 lb (29.5 kg) per seat...
- Page 2 TABLE OF CONTENTS A Introduction, Safety and Warnings B Before You Begin Assembly C Parts Diagram D Assembly E How to Use Your Ride-on toy F Detailed Maintenance and Repair G Troubleshooting Guide H Limited Warranty ELECTRIC CAR SPECIFICATIONS SUITABLE AGE CAPACITY Up to 130 lb (59 kg) MAX SPEED...
- Page 3 INTRODUCTION, SAFETY AND WARNINGS ABOUT THIS MANUAL: This Manual was written to help you and your child get the most performance, comfort, enjoyment and safety when riding your new electric ride-on toy. It is important for you to understand your new electric ride-on toy.
- Page 4 RIDER USE AND REQUIRED PARENTAL SUPERVISION RIDERS MUST NOT EXCEED THE WEIGHT LIMIT OF 130 LB (59 KG) AND MUST BE OVER 3 YEARS OLD. NEVER ALLOW MORE THAN 2 CHILDREN TO RIDE THE RIDE-ON TOY SIMULTANEOUSLY. The age grade for the electric ride-on toy is for 3 years and older. Just because your child is within the age and weight limitations specified for the electric ride- on toy, does not mean that his/her size is appropriate to fit or maintain control of the electric ride-on toy, or that he/she is capable of safely operating the electric...
- Page 5 SAFE RIDING PRACTICES AND WARNINGS • Check and obey all local laws or regulations which may be in effect in the locations where the electric ride-on toy may be used. • Always wear appropriate clothing and shoes. • Observe the age and weight limitations on the cover of this manual. •...
- Page 6 • This ride-on toy has no brake; to stop take foot off foot pedal. Do no park or ride on any slopes or steep inclines. • Do not allow hands, feet, hair, body parts, clothing, or similar articles to come in contact with wheels or other moving parts.
- Page 7 BEFORE YOU BEGIN ASSEMBLY Remove all packing and items from the display box. ESTIMATED ASSEMBLY TIME Because this ride-on toy is heavy and large, we strongly suggest two people to complete assembly. Allow approximately 90 minutes for assembly by two people, not including initial charging time.
- Page 8 PARTS DIAGRAM NOTE: Some parts shown are assembled on both sides of ride-on toy. Parts are packaged at both ends of box and in ride-on chassis. Ensure all parts are present before assembly. 1 Carriage Roof Tiara x1 21 Battery Cover x1 2 Carriage Roof x1 22 4x12 Round Head Screw x18 3 Lantern x4...
- Page 9 ASSEMBLY Your new ride-on toy requires adult assembly. Because your new ride-on toy is heavy and large, we strongly suggest using two people to finish assembly. Set aside around 90 minutes for assembly. Identify all parts before assembly and save all packaging material until assembly is completed to ensure that no parts are discarded.
- Page 10 2. FRONT WHEEL ASSEMBLY • Turn the carriage body upside down (handle gently by two people) to avoid damaging the door handles or flourishes. NOTE: Do not remove the packaging material from the handles until after completing the assembly! • Adjust the front wheel axle until the axle clicks into position for safety (see Figure A).
- Page 11 end of the rear axle with another 17mm socket wrench. DO NOT over tighten; the rear axle ends are supposed to be exposed; 1-2 threads exposed is acceptable. • For your safety, insert a split pin into the hole in the end of rear axle, and split it using standard needle nose pliers.
- Page 12 5. STEERING WHEEL ASSEMBLY • Remove the M5x35 machine screw and nut from the steering wheel. Steering M5 Nut Wheel • Insert the screwdriver in the hole in the steering column and lift it as high as possible so that when inserting the steering wheel M5x35 onto the end of the steering column, it can Machine...
- Page 13 7. FRONT ROOF SUPPORT ASSEMBLY 4x16 Round • Find the front roof support (labeled Head Screw inside) and the roof (labeled inside). • Slide the front roof support into the slots on the carriage roof and push until it clicks into place.
- Page 14 • Find the curtain support (labeled ) and center a curtain over the curtain support (make sure the small columns accommodate the curtain), then mount the curtain and curtain support onto the left side of the carriage roof. Secure with three 4x12 round head screws. NOTE: Make sure there are no creases where the curtain is attached to the support before tightening the screws.
- Page 15 • Repeat the previous steps to mount the right side curtain. Find the curtain supports and center the right side curtain over the curtain support (making sure the small columns accommodate the curtain), then mount the curtain with curtain supports onto the right side of the carriage roof.
- Page 16 13. LANTERN BATTERIES INSTALLATION NOTE: Batteries are not included. • Unscrew the two 3x10 round head screws Lantern Socket at the bottom of the lantern socket. • Remove the lantern wick and insert 2x1.5V size AAA or LR03 batteries. 3X10 Round Head Screw •...
- Page 17 14.ROOF TIARA ASSEMBLY Insert the carriage roof tiara (larger size) into the slots in the roof until it clicks into place. 15. DASHBOARD TIARA ASSEMBLY Insert the dashboard tiara (smaller size) into the slots in the dashboard until it clicks into place.

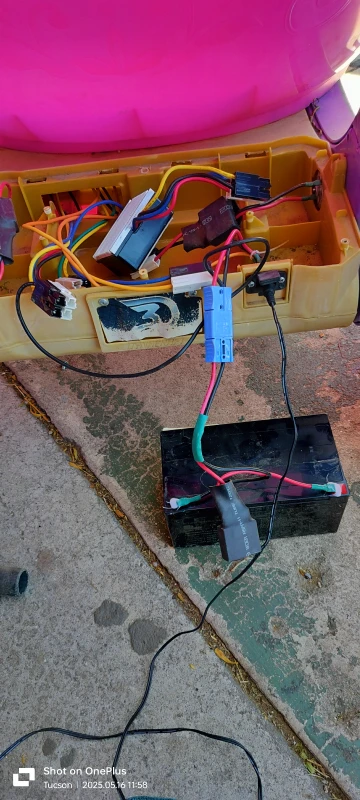

- Page 18 17. POWER SUPPLY CONNECTION NOTE: The battery is disconnected for shipment to prevent the battery from draining. • Unscrew the three screws on the battery box cover with a screwdriver and remove the battery box cover. • Securely plug the battery connector into the control model connector. •...
- Page 19 PREVENT FIRE • Never modify the electrical system. • Alterations could cause a fire resulting in serious injury and could also ruin the electrical system. • Use of the wrong type battery or charger could cause a fire or explosion resulting in serious injury.
- Page 20 IMPORTANT NOTE • The battery must be upright while charging. • The charger is not a toy. • Do not short-circuit the battery. • You do not need to remove the battery from your ride-on toy to recharge it. • Before charging the battery, examine the battery case for cracks and other damage which may cause sulfuric acid (electrolyte) to leak during the charging process.
- Page 21 HOW TO USE YOUR RIDE-ON TOY LED Switch Sound & Light Button Foot Pedal Forward/Reverse Shift Lever FOOT PEDAL • To move the ride-on toy, press the foot pedal down. • To stop, take your foot off the foot pedal. FORWARD-REVERSE SHIFT LEVER •...
- Page 22 OPENING THE DOOR To open the doors, push down on the handle. NOTE: Only the front doors (near the dashboard side) can be opened, the rear doors are fixed and do not open. USING THE LANTERN To turn on the light, press the button on the bottom of the lantern. To turn off the light, press the button again.
- Page 23 IMPORTANT • Always stop ride-on toy when changing the direction to avoid damage to the gears and motor. • This ride-on toy has an adjustable seat belt; instruct children on how to fasten the seat belt before using. • Do not let any child touch the wheels or be near them when the car is moving. •...
- Page 24 DETAILED MAINTENANCE AND REPAIR WARNING: Disconnect power supply before conducting any maintenance procedures. Phillips Screwdriver 17 mm Socket Wrench (Included) (not included) Flat head Screwdriver Needle-Nose Pliers (not included) (not included) HOW TO REPLACE FRONT WHEEL 1. Remove the axle cap by sliding a flat head Ø12 Front Axle Split Pin...
- Page 25 HOW TO REPLACE REAR WHEEL AND GEAR BOX 1. Remove the axle cap by sliding a flat head screwdriver along the edge of the cap and carefully pry the cap open. 2. Use needle nose pliers to remove the split pin in the hole of the rear axle end. 3.
- Page 26 HOW TO REPLACE THE FOOT PEDAL 1. Use a flat head screwdriver to gently pry the LEFT side of foot pedal. 2. Gently remove the foot pedal. 3. Disconnect the old foot pedal from the pedal switch socket. 4. Replace and reconnect the new foot pedal to the pedal switch socket to ensure they are connected in the correct position (see Figure 3) and then reinsert the foot pedal into the foot pedal compartment until it snaps into place.
- Page 27 HOW TO REPLACE FORWARD-REVERSE SHIFT LEVER 4x12 Round Head Screw Fool Proof Black Shift Lever White Bracket 1. Unscrew the four 4x12 screws on the shift lever bracket with a screwdriver and remove the Forward-Reverse Shift Lever Assembly. (Diagram A) 2.
- Page 28 BATTERY CARE AND DISPOSAL Do not store the battery in temperatures above 75° F (23.5° C) or below 32° F (0°C). THIS PRODUCT CONTAINS SEALED LEAD ACID BATTERIES WHICH MUST BE RECYCLED IN ACCORDANCE TO YOUR LOCAL AND STATE LAWS PLEASE CAREFULLY READ AND UNDERSTAND THE FOLLOWING DISPOSAL INSTRUCTIONS: DISPOSAL: This product contains sealed lead acid batteries which must be...
- Page 29 MAINTAINING YOUR RIDE-ON TOY Occasionally use a lightweight oil to lubricate moving parts such as wheels and the steering linkages. Park the ride-on toy indoors or cover it with a tarp to protect it from wet weather. Keep the ride-on toy away from sources of heat, such as stoves and heaters. Plastic parts may melt.
- Page 30 TROUBLE SHOOTING GUIDE Problem Possible Cause Solution Ride-on toy Undercharged Charge the battery. A new battery should have does not run battery been charged for at least 18 hours before using the ride-on toy for the first time. After first-time use, recharge the battery for at least 12 hours after each use.
- Page 31 Problem Possible Cause Solution Ride-on toy Loose wires or Check all wires and connectors. Make sure the was running connectors battery connector is tightly plugged into the but suddenly control module connector, and that there are no stopped loose wires around the motor. Tripped thermal fuse The thermal fuse may “trip”...
- Page 32 Problem Possible Cause Solution Ride-on toy runs Undercharged battery Charge the battery. A new battery should have sluggishly been charged for at least 18 hours before using the ride-on toy for the first time. After first-time use, recharge the battery for at least 12 hours after each use.
- Page 33 This Warranty is not transferrable to anyone else and is the only warranty for your Dynacraft product, to the extent permitted by law No other express or implied warranty is given Part or model specifications are subject...
- Page 34 DO NOT RETURN THIS ITEM TO THE STORE CONTACT DYNACRAFT CUSTOMER SERVICE FOR ASSISTANCE dynacraftwheels.com/contact or 1-800-551-0032 8 – 5 Please have the following information available: Model Number Example: 8000-00 Production Date Example: MM.DD.YYYY Serial Number Example: DA00000000000 This information is required to help us handle your request effectively.
