OWNER'S MANUAL

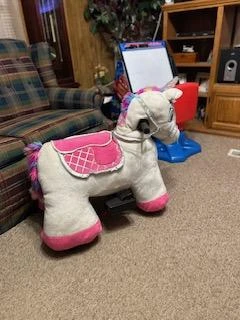

6V PLUSH RIDE-ON
this manual contains important safety
maintenance information
first ride or allowing your child to ride your new electric
-
.
ride
on toy
keep the manual handy for future reference
FOR AGES 3+
MAXIMUM WEIGHT: 65 lbs (29.5 kgs)
NOTE: Illustrations in this Manual are for reference purposes only and may not reflect the exact
appearance of the actual product. Specifications are subject to change without notice.
.
read the manual before taking your
DO NOT RETURN TO STORE!
QUESTIONS OR COMMENTS?
1-800-288-1560
,
performance and
.
Advertisement
Table of Contents
Related Manuals for Dynacraft 8803-92
Summary of Contents for Dynacraft 8803-92
- Page 1 OWNER’S MANUAL 6V PLUSH RIDE-ON this manual contains important safety performance and maintenance information read the manual before taking your first ride or allowing your child to ride your new electric ride on toy keep the manual handy for future reference DO NOT RETURN TO STORE! QUESTIONS OR COMMENTS? 1-800-288-1560...
- Page 2 TABLE OF CONTENTS A Introduction, Safety and Warnings B Before You Begin Assembly C Parts Diagram D Assembly E How to Use Your Ride-on Toy F Detailed Maintenance and Repair G Troubleshooting Guide H Warranty SPECIFICATIONS SUITABLE AGE CAPACITY Up to 65 lbs (29 5 kgs) SPEED 2 5 MPH CHARGER / INPUT...
- Page 3 INTRODUCTION, SAFETY AND WARNINGS ABOUT THIS MANUAL: This Manual was written to help you and your child get the most performance, comfort, enjoyment and safety when riding your new electric ride-on toy. It is important for you to understand your new electric ride-on toy.
- Page 4 RIDER USE AND REQUIRED PARENTAL SUPERVISION RIDERS MUST NOT EXCEED THE WEIGHT LIMIT OF 65 lb (29.5 kg) and MUST BE OVER 3 YEARS OLD. NEVER ALLOW MORE THAN 1 CHILD TO RIDE THE RIDE-ON TOY SIMULTANEOUSLY. The age grade for the electric ride-on toy is for 3 years and older. Just because your child is within the age and weight limitations specified for the electric ride- on toy, does not mean that his/her size is appropriate to fit or maintain control of the electric ride-on toy, or that he/she is capable of safely operating the electric...
- Page 5 SAFE RIDING PRACTICES AND WARNINGS • Check and obey all local laws or regulations which may be in effect in the locations where the electric ride-on toy may be used. • Always wear appropriate clothing and shoes. • Observe the age and weight limitations on the cover of this manual. •...
- Page 6 • Do not to allow hands, feet, hair, body parts, clothing, or similar articles to come in contact with wheels or other moving parts. • Before each cycle of operation, you must perform the preoperation checks specified in this manual or by the manufacturer, including: –...
- Page 7 BEFORE YOU BEGIN ASSEMBLY NOTE: Remove all packing and items from the display box. Make sure that the power switch is turned “OFF” before assembling the electric ride-on toy. ESTIMATED ASSEMBLY TIME You should allow approximately 5 minutes for assembly, not including initial charging time.
-
Page 8: Parts Diagram
PARTS DIAGRAM Tools Required Scissors (not included) NOTE: Some parts shown are assembled on both sides of ride-on toy. Head Assembly x1 Bandanna x1 M5 Locknut x1 M5x35 Machine Screw x1 Body Assembly x1 Battery (6V/4AH) x1 Stable x1 Charger x1... - Page 9 ASSEMBLY Your new ride-on toy has been already assembled by factory. TOOLS REQUIRED: Scissors (not included) WARNING: Children can be harmed by small parts, sharp edges and sharp points in the ride-on toy’s unassembled state, or by electrical items. In the unassembled state, this package contains small parts.
- Page 10 • Gently turn the ride-on body on its side, and unzip the zipper which is located on the underside of the body. • Plug the power connector into the battery connector, and zip up the zipper. Power Connector Battery Connector Zipper Zipper...
-
Page 11: Battery Charging
BATTERY CHARGING IMPORTANT! Before first time use, charge the battery for at least 18 hours. Charge the battery for at least 12 hours after each use of the ride-on toy. Never charge the battery longer than 30 hours. Overcharging or undercharging the battery may shorten battery life and decrease ride-on toy running time. - Page 12 • Use only an original charger (AC 120V 60Hz) with an output of DC 6V 0.5A to charge your ride-on toy battery. • NOTE TO ADULTS: Regularly examine the charger for damage to the cord, plug, housing or other parts that may result in the risk of fire, electric shock or injury. •...
- Page 13 HOW TO USE YOUR RIDE-ON TOY Sound Button Foot Pedal Power Switch POWER SWITCH Turn the ride-on toy on and off. FOOT PEDAL To move the ride-on toy, press the foot pedal down. To stop, take your foot off the foot pedal. SOUND BUTTON Press the sound buttons on the handle bar to play sounds.
-
Page 14: Safety Precautions
IMPORTANT • Do not let any child touch the wheels or be near them when the ride-on toy is moving. • To avoid accidents, inspect the ride-on toy before riding to ensure that it is in proper working order and safe to ride. •... - Page 15 DETAILED MAINTENANCE AND REPAIR Turn the power “OFF” before conducting any maintenance. TOOLS REQUIRED: Adjustable wrench Phillips Screwdriver (not included) (not included) HOW TO REPLACE FRONT WHEELS Front Wheel M8 X 45 Bolt M8 Locknut 1. Gently turn the ride-on body upside down. 2.
- Page 16 HOW TO REPLACE THE REAR WHEEL M6 X 25 Bolt Rear Wheel Locknut M6 Locknut Rear Wheel 1. Gently turn the ride-on body upside down. 2. Remove the M6 locknuts and the M6 x 25 bolts with a phillips screwdriver. 3.
- Page 17 HOW TO REPLACE THE POWER SWITCH Power Switch Socket Power Switch Power Switch 1. Gently turn the ride-on body on its side. 2. Use a screwdriver to remove the four screws from the left foot rest. 3. Carefully unplug the old power switch and plug in the new power switch for replacement.
- Page 18 HOW TO REPLACE THE FOOT PEDAL 1. Turn off the power switch in the car on the side of left foot rest. (see figure 1). 2. Use a flat head screwdriver to gently pry up the left side of the foot pedal (see figure 2). Power 3.
-
Page 19: Battery Care And Disposal
BATTERY CARE AND DISPOSAL Do not store the battery in temperatures above 75° F (23.5° C) or below 32° F (0°C). THIS PRODUCT CONTAINS SEALED LEAD ACID BATTERIES WHICH MUST BE RECYCLED IN ACCORDANCE TO YOUR LOCAL AND STATE LAWS PLEASE CAREFULLY READ AND UNDERSTAND THE FOLLOWING DISPOSAL INSTRUCTIONS: DISPOSAL: This product contains sealed lead acid batteries which must be... - Page 20 MAINTAINING YOUR RIDE-ON TOY Occasionally use a lightweight oil to lubricate moving parts such as wheels and the steering linkages. Park the ride-on toy indoors or cover it with a tarp to protect it from wet weather. Keep the ride-on toy away from sources of heat, such as stoves and heaters. Plastic parts may melt.
-
Page 21: Troubleshooting Guide
TROUBLESHOOTING GUIDE Problem Possible Cause Solution Ride-on toy Undercharged Charge the battery. A new battery should have does not run battery been charged for at least 18 hours before using the ride-on toy for the first time. After first-time use, recharge the battery for at least 12 hours after each use. - Page 22 Problem Possible Cause Solution Ride-on toy Loose wires or Check all wires and connectors. Make sure the was running connectors battery connector is tightly plugged into the power but suddenly connector, and that there are no loose wires around stopped the motor.
- Page 23 Problem Possible Cause Solution Ride-on toy Undercharged Charge the battery. A new battery should have runs sluggishly battery been charged for at least 18 hours before using the ride-on toy for the first time. After first-time use, recharge the battery for at least 12 hours after each use.
- Page 24 Problem Possible Cause Solution Charger gets It is normal for No action required. warm during some chargers to If your charger does not get warm during use, it get warm during does not mean that it is not working properly. use and is not reason for concern Some chargers...
-
Page 25: Limited Warranty
Dynacraft shall not have any responsibility for any resulting break down of the ride-on toy or its components, or for any rider injuries... - Page 26 Dynacraft Customer Service 1-800-288-1560 7AM to 4PM Pacific Standard Time DO NOT return this item to the store. STOP Please call Dynacraft for assistance. Please have the following information available when you call: Model Number: (sample: 8802-33) Production Date: (sample: 03.03.2015)
