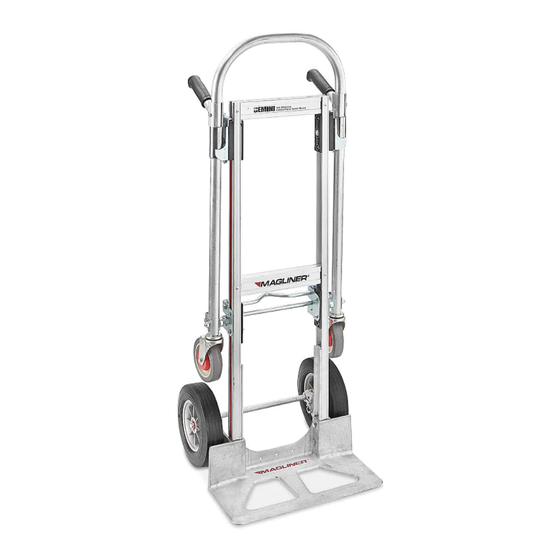

Magliner convertible jr. aluminum hand truck

Advertisement

Available languages

Available languages

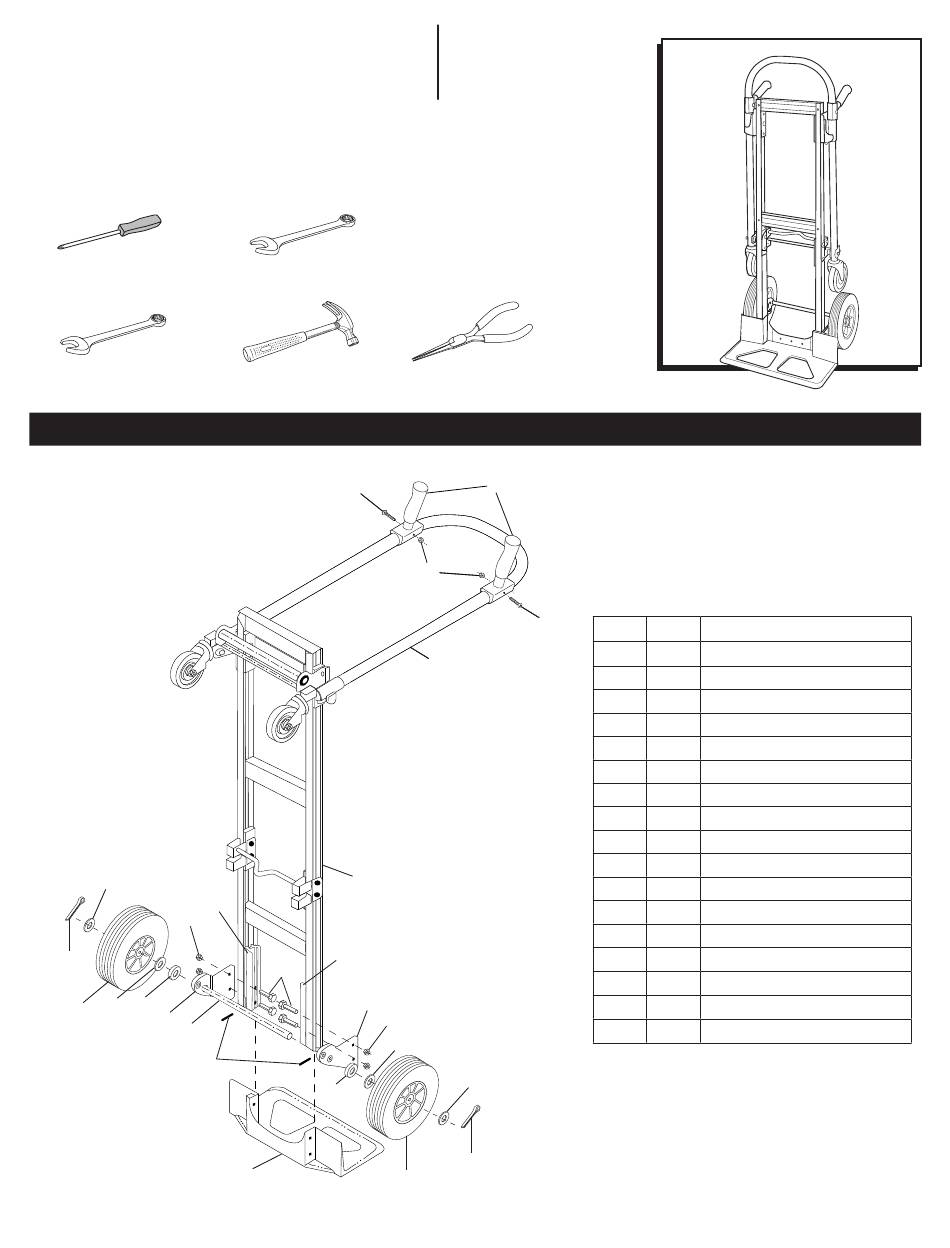

π
H-4937
MAGLINER
CONVERTIBLE JR.
®
ALUMINUM HAND TRUCK
WITH SOLID RUBBER WHEELS

TOOLS NEEDED

#3 Phillips Screwdriver
7/16" Combination Wrench
or Socket Wrench
7
15
14
6
7
9
8
10
11
12
PAGE 1 OF 6
1/2" Combination Wrench
or Socket Wrench
Hammer
2
5
15
16
13
14
7
9
17
8
1-800-295-5510
uline.com
Pliers

PARTS

1
3
2
4
7
6
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
REF.
QTY.
DESCRIPTION
1
2
Handle With Bracket
2
2
1/4"-20 x 1⁄" Pan Head Bolt
3
2
1/4" Locknut
4
1
Extended Handle
5
1
Frame
6
2
Cotter Pin
7
4
Thin Washer
8
2
Wheel
9
2
Thick Washer
10
1
Left Hand (LH) Wheel Bracket
11
1
Axle
12
2
Roll Pin
13
1
Right Hand (RH) Wheel Bracket
14
4
5/16" Locknut
15
2
Side Channel Reinforcement
16
4
5/16"-18 x 2⁄" Hex Head Bolt
17
1
Nose Plate
0521 IH-4937

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-4937 and is the answer not in the manual?

Questions and answers

Summary of Contents for U-Line H-4937

  • Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. π H-4937 1-800-295-5510 uline.com MAGLINER CONVERTIBLE JR. ® ALUMINUM HAND TRUCK WITH SOLID RUBBER WHEELS TOOLS NEEDED #3 Phillips Screwdriver 1/2" Combination Wrench or Socket Wrench 7/16" Combination Wrench...
  • Page 2 ASSEMBLY ATTACH NOSE PLATE, WHEEL BRACKETS AND AXLE Figure 1a Position side channel reinforcements against bottom Frame frame rail. (See Figure 1a) Slide nose plate into channel on side channel reinforcement, keeping bolt holes aligned. (See Figure 1) 2. Insert four 5/16"-18 x 2⁄" hex head bolts through the nose plate, side channel reinforcements and frame.
  • Page 3 π H-4937 800-295-5510 uline.mx MAGLINER DIABLITO DE ® ALUMINIO CONVERTIBLE JUNIOR CON LLANTAS DE CAUCHO SÓLIDO HERRAMIENTAS NECESARIAS Desarmador Phillips Núm. 3 Llave Combinada o de Dado de 1/2" Llave Combinada o de Pinzas Dado de 7/16" Martillo PARTES REF.
  • Page 4 ENSAMBLE COLOCACIÓN DE BASE, LOS SOPORTES DE LA LLANTA Y EL EJE Diagrama 1a 1. Coloque los refuerzos del canal lateral contra el Armazón Frame fondo del riel del marco. (Vea Diagrama 1a) Deslice la base hacia el canal en los refuerzos del canal lateral, manteniendo alineados los orificios de los pernos.
  • Page 5 π H-4937 1-800-295-5510 uline.ca MAGLINER - DIABLE DE MANUTENTION CONVERTIBLE COMPACT EN ALUMINIUM AVEC ROUES À BANDAGE PLEIN EN CAOUTCHOUC OUTILS REQUIS Tournevis cruciforme nº 3 Clé mixte ou à douilles de 1/2 po Clé mixte ou à douilles de Marteau Pince 7/16 po...
  • Page 6 MONTAGE FIXATION DE LA BAVETTE, DES SUPPORTS DE ROUE ET DE L'ESSIEU Figure 1a Cadre Frame Positionnez les renforts de rainure latéraux contre les glissières à l'extrémité inférieure du cadre. (Voir Figure 1a) Glissez la bavette dans la cannelure des renforts de rainure latéraux en gardant les trous de boulon alignés.
