U-Line H-2185 Manual

H-2185, H-2186
CORROSION RESISTANT
PALLET TRUCK
WARNING! Operator must read and understand
instructions here and on truck prior to use.

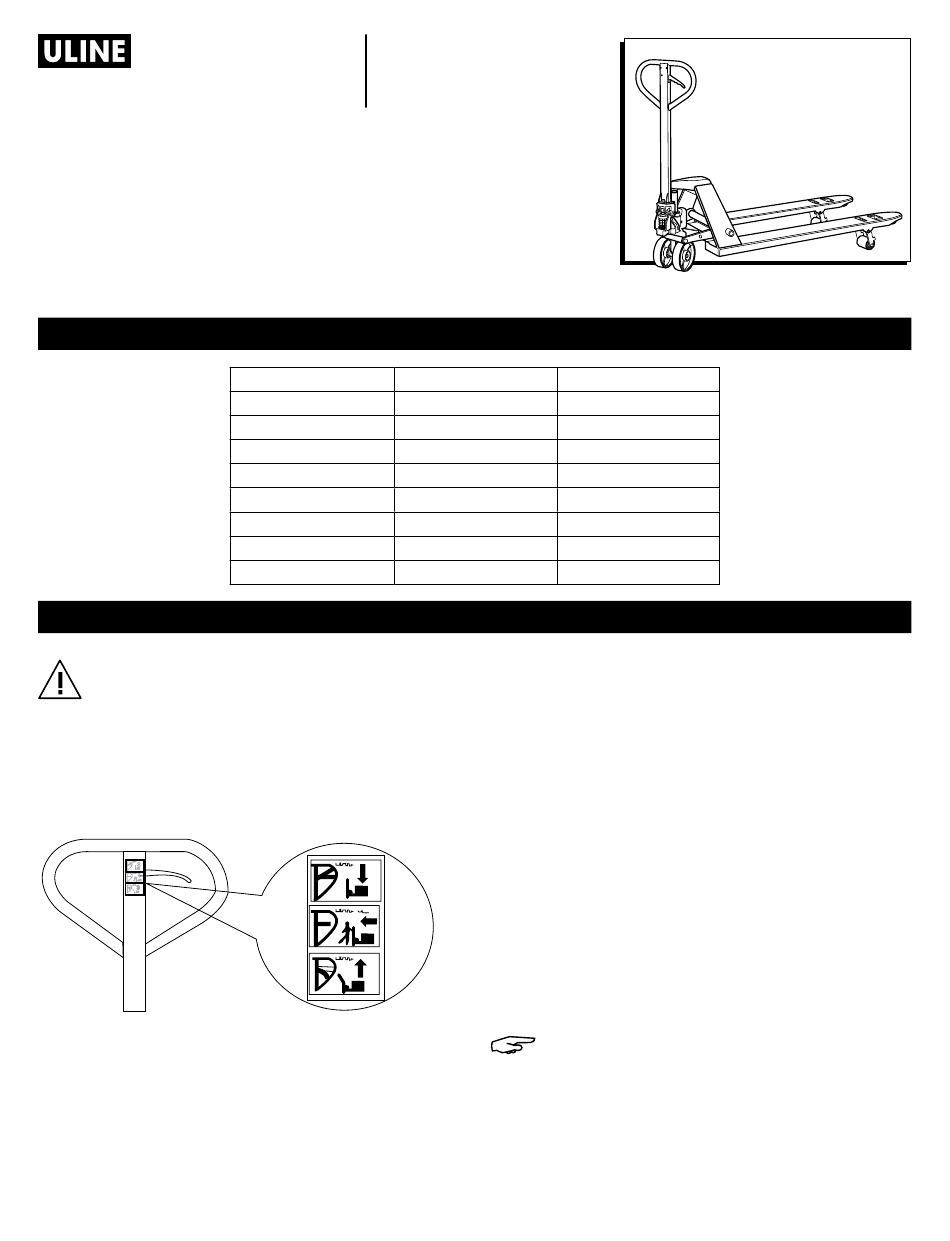

On the handle of the pallet truck, you will find the
control lever, which can be set in three positions.
(See Figure 1)
Figure 1
- LOWER = to lower the forks
- NEUTRAL = to move the load
- RAISE = to raise the forks
PAGE 1 OF 9
1-800-295-5510
uline.com
TECHNICAL DATA
MODEL
Capacity
Max. Fork Height
Min. Fork Height
Fork Length
Overall Fork Width
Fork Wheel Diameter
Steering Wheel Diameter
Net Weight
OPERATION
H-2185 H-2186
5,500 lbs. 5,500 lbs.
7.5"
3"
48"
27"
3" Nylon 3" Nylon
7" Nylon 7" Nylon
173 lbs. 157 lbs.
If the forks elevate while pumping in the NEUTRAL
position, turn the setting screw clockwise until pumping
the handle does not raise the forks and the NEUTRAL
position functions correctly.
1. If the forks descend while pumping in the NEUTRAL
position, turn the setting screw counterclockwise until
the forks do not lower.
2. If the forks do not descend when the control lever
is in the LOWER position, turn the setting screw
clockwise until raising the control lever lowers the
forks. Then check the NEUTRAL position as per step 1
and 2.
3. If the forks do not lift while pumping in the RAISE
position, turn the setting screw counterclockwise
until the forks elevate while pumping in the RAISED
position. Then check the NEUTRAL and LOWER
positions as per steps 1, 2 and 3.
NOTE: When viewing the truck from the handle
side, the setting screw is located on the right
side of the pump above the right wheel. The
truck will lower faster or slower depending on
how far in or out the screw is adjusted.
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
7.5"
3"
48"
27"
