2. Remove the paper seal (1) from the sticky side of the gasket (2) and apply it to the back
side of the bezel (3).

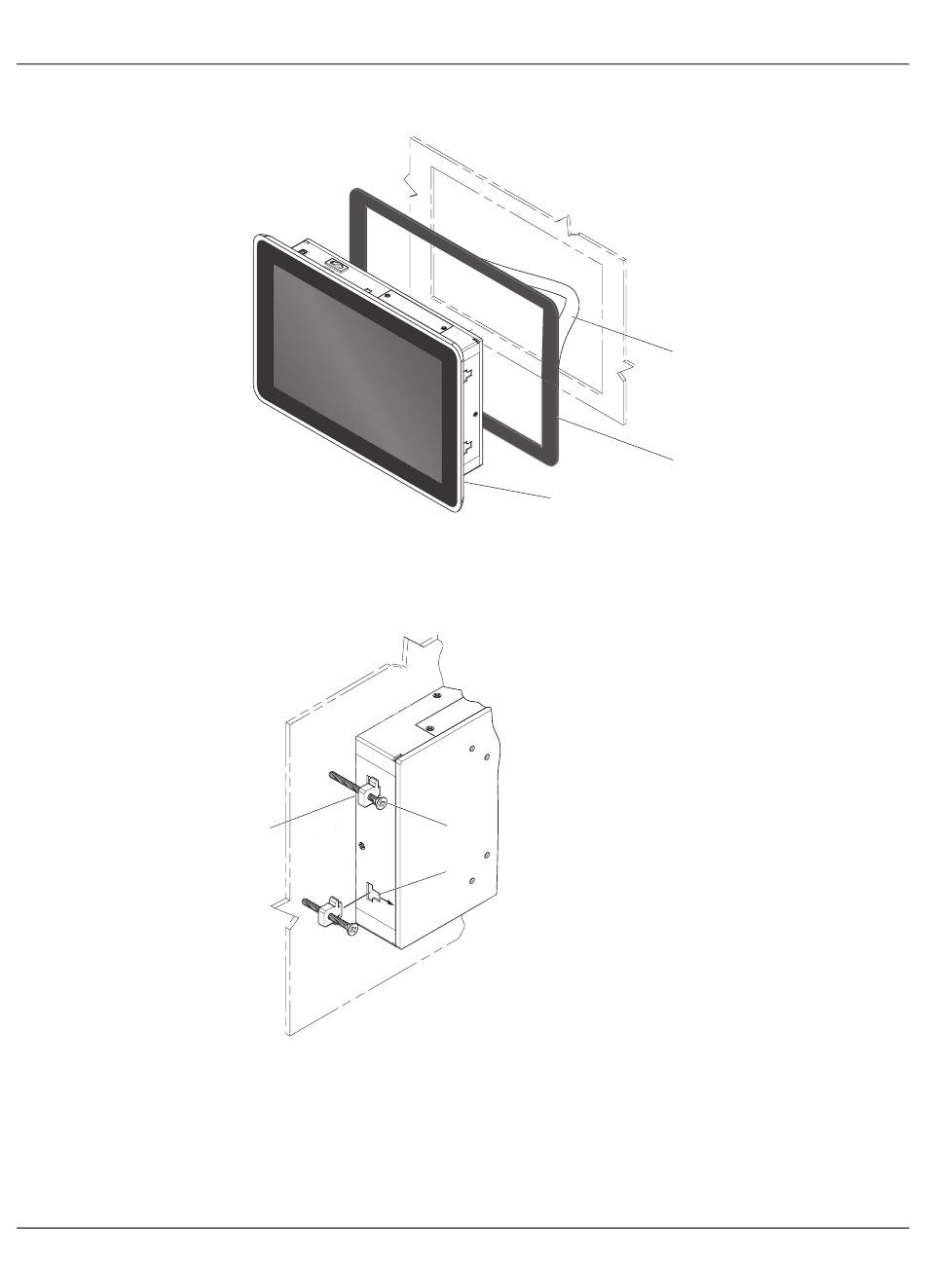

Figure 3-2 Gasket installation
3. Insert the BL2 PPC 1201-4/... through the opening.
4. Insert the screws (1) through the clamps (2).
2
Figure 3-3 Panel-mounting clamps
5. From the rear of the enclosure, place a clamp in each slot (3) and slide away from the
enclosure panel.
6. Using an alternating pattern, turn each screw clockwise until the BL2 PPC 1201-4/... is
secured in the enclosure panel.
7. Torque each clamp screw to 0.88 Nm.
3
1
3
1
2
