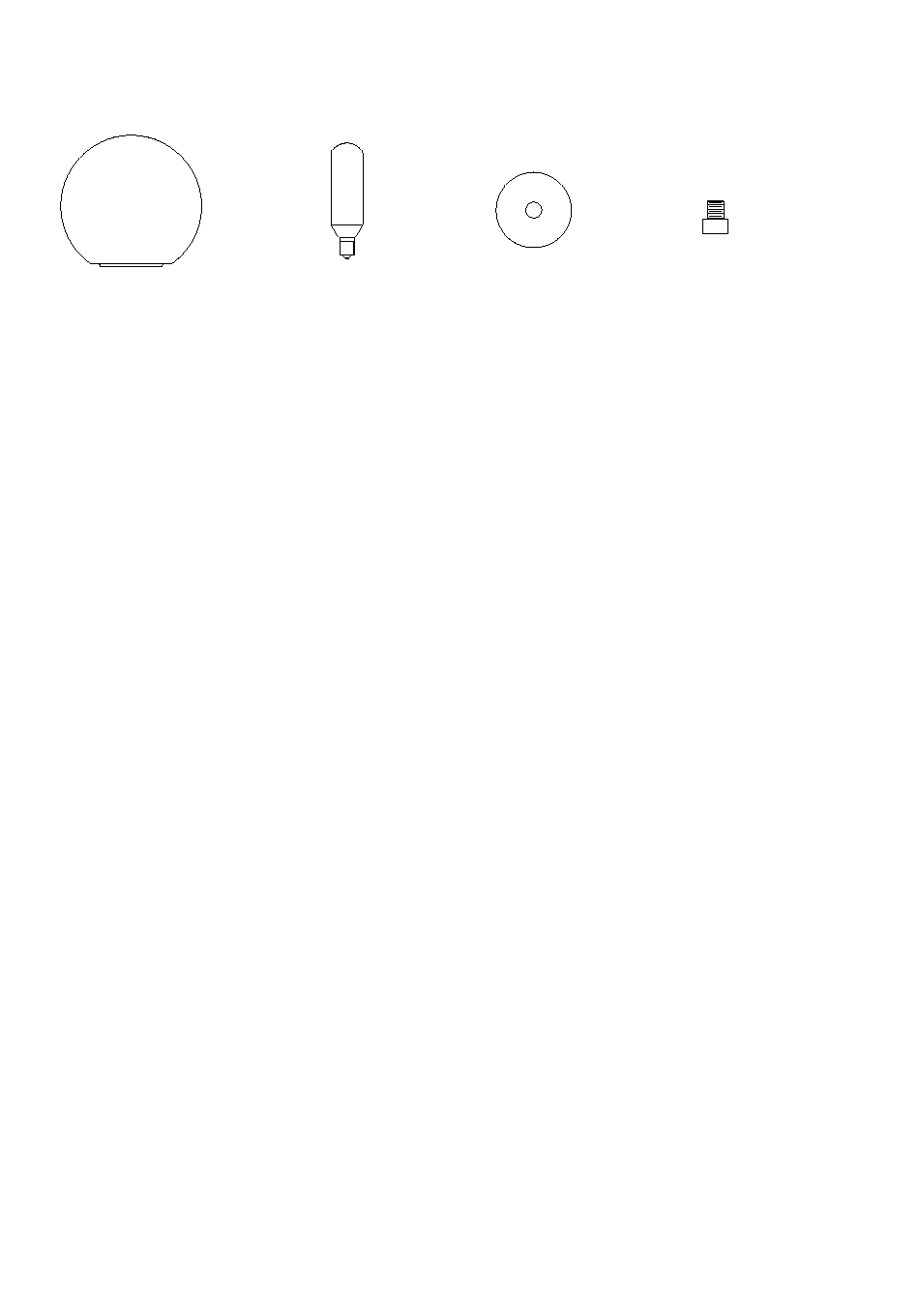

PARTS INCLUDED FOR ASSEMBLY (parts are not to scale):
5 Glass Shade (#7)
ASSEMBLY INSTRUCTIONS:
1.
Shut o ff power at the fuse box or circuit breaker box, if necessary remove old fixture
and all mounting hardware from outlet box.
2.
Carefully unpack your new fixture and lay out all the parts on a clear area. Take care
not to lose any small parts necessary for installation.
3.
Adjust the Arms (#4) to the proper position.
4.
Take apart the Cylinder Nut (#20) from the Center Stem (#23), place the Spacer (#9)
onto the center stem (#23) and tighten with Cylinder Nut (#20).
5.
Install the Light Bulb (#8) onto the socket. Put the Glass shade (#7) obliquely over one
end of the Bracket (#22). Move the Glass Shade (#7) slightly until the other end of bracket
slides into the Glass Shade interior. Hold the Glass Shade (#7) against the Bracket (#22),
while holding the Glass Shade, slide the Cup (#21) up towards the glass shade until they
are both touching. Holding the Cup (#21), move up the Column Nut (#1) fasten the Cup
securely. (See Image 5-1, 5-2, 5-3, 5-4, 5-5 on next page)
5 Bulb (#8)
1 Spacer (#9)
1 Cylinder Nut (#20)
