Item #1007 953 084
Model # FZA71024-ST2
USE AND CARE GUIDE

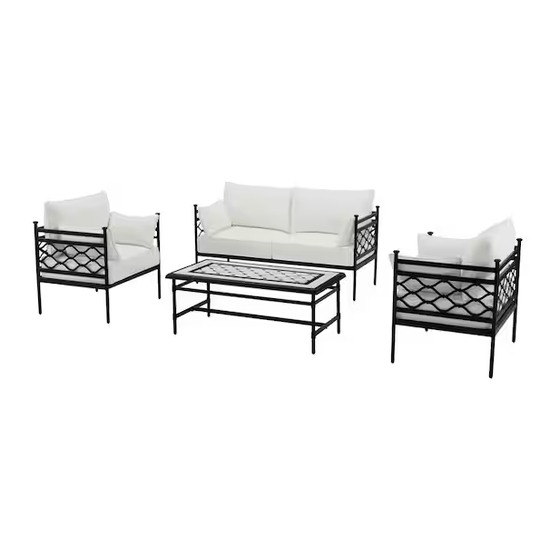

WAKEFIELD ALUMINUM 4PC CHAT SET
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this set. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Home Decorators Collection!
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection WAKEFIELD FZA71024-ST2
Summary of Contents for Home Decorators Collection WAKEFIELD FZA71024-ST2
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this set. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Pre-A ssembly ............... 3 Planning Assembly ..............3 Important Safety Instructions ........2 Hardware Included ..............3 Save These Instructions ............2 Club Chair Package Contents ..........4 Read All Instructions Before Use ..........2 Loveseat Package Contents ........... -
Page 3: Warranty
Warranty 5 YEAR FRAME AND 5 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frame to be free of manufacturing defects to the the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover is warranty. -
Page 4: Club Chair Package Contents
Pre-Assembly (continued) CLUB CHAIR KAGE CONTENTS Part Description Quantity Club Chair Back Left Arm Right Arm Club Chair Seat Back Cushion Seat Cushion Pillow... -
Page 5: Loveseat Package Contents
Pre-Assembly (continued) LOVESEAT KAGE CONTENTS Part Description Quantity Left Arm Right Arm Back Cushion Seat Cushion Pillow Loveseat Back Loveseat Seat HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance. -
Page 6: Coffee Table Package Contents
Pre-Assembly (continued) COFFEE TABLE KAGE CONTENTS Part Description Quantity Table Top Leg Connector Connector Bar Table Leg... -
Page 7: Club Chair Assembly
Club Chair Assembly Attaching the Club Chair Seat and Club Chair Back to the Left Arm Place the left arm (B) on a soft surface. Attach the club chair seat (D) to the left arm (B) using M6 x 35 combination bolts (BB). Attach the club chair back (A) to the left arm (B) using M6 x 20 combination bolts (AA). - Page 8 Club Chair Assembly (continued) Checking the Club Chair Turn the club chair right side up. Place the seat cushion (F), the back cushion (E) and the pillows (G) to nish the assembly of the club chair. Ensure all connections are secure before use.
-
Page 9: Loveseat Assembly
Loveseat Assembly Attaching the Loveseat Seat to the Loveseat Back Place the loveseat back (H) on a soft surface. Attach the loveseat seat (I) to the loveseat back (H) using M6 x 35 combination bolts (BB). Do not tighten the bolts at this step. Attaching the Assembled Loveseat Seat and Loveseat Back to the Left Arm Attach the assembled loveseat seat (I) and loveseat back (H) to the left arm (B) using M6 x 35 combination bolts (BB) and M6 x 20 combination bolts (AA), as shown below. - Page 10 Loveseat Assembly (continued) Attaching the Assembled Loveseat Seat and Loveseat Back to the Right Arm Attach the assembled loveseat seat (I) and loveseat back (H) to the right arm(C) using M6 x 35 combination bolts (BB) and M6 x 20 combination bolts (AA), as shown below. Once all bolts are in place, fully tighten all bolts using the hex wrench (CC).
-
Page 11: Coffee Table Assembly
Coffee Table Assembly Attaching the Table Legs to the Table Top Place the table top (J) upside down on a soft surface. Attach the table legs (M) to the table top (J) using M6 x 20 combination bolts (AA). Do not fully tighten the bolts at this step. Attaching the Leg Connector to the Table Legs Attach the leg connector (K) to the table legs (M) using M6 x 20 combination bolts (AA). - Page 12 Coffee Table Assembly (continued) Attaching the Connector Bar to the Table Legs Attach the connector bar (L) to the table legs (M) using M6 x 20 combination bolts (AA). Once all of the bolts are in place, fully tighten the bolts using the hex wrench (CC). Checking the Coffee Table Turn the coffee table right side up.
-
Page 13: Care And Cleaning
Care and Cleaning For best results, clean the chat set with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. Do not clean with abrasive materials, bleach, or solvents. Store the chat set in a dry, sheltered place when not in use. Keep the chat set away from re, extreme heat, freezing conditions, and inclement weather such as rain, hail, sleet, snow, or wind. - Page 14 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use. For certification use only...
