Summary of Contents for HydroLogic EvolutionRo
- Page 1 USER MANUAL...
-
Page 2: Table Of Contents

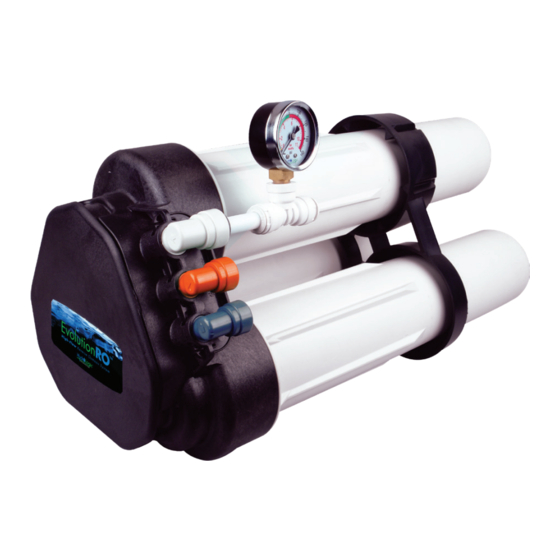

DESCRIPTION The EvolutionRO is a customized Reverse Osmosis water filter that is made in the USA. This system is capable of reducing up to 95% of most contaminants. This system is designed and built for use with hydroponic or horticultural applications. This system is built to give the maximum amount of flow from the membrane while sending less waste water to the drain, compared to similar RO filters. -
Page 3: Precautions
Hand tighten the housings only. Take care not to over-tighten. Do not install where leakage or failure may cause damage to property. • If you are going to store or not use your EvolutionRO for an extended period of time (2 weeks+), it is •... -
Page 4: Filter Replacement Schedule
Depending on water use and the amount of impurities, this filter should be replaced a minimum of 2,500 gallons of purified water produced. membrane (HL 22045): The functional life of the EvolutionRO EvolutionRO membranes will vary based on feed water quality. -
Page 5: Includes
EVOLUTION-RO INCLUDES 1. Filter Housings (X3) ChloraShield Carbon Filter (X1) 3. 600+ Gallon Per Day Membranes (X2) 4. White Feed Fitting (X1) 5. Dark Blue Product Water Fitting (X1) 6. Orange 1:1 Ratio Drain Fitting (X1) 7. Green 2:1 Ratio Drain Fitting (X1) 8. -
Page 6: Installation
EVOLUTION-RO INSTALLATION STEP 1: Put a thin layer of lube on the o-rings of the 3 STEP 2: housings, and both o-rings on the 2 membranes. Install carbon filter. The filter can Be sure to completely cover the o-rings. only be installed in the manifold in the position shown. - Page 7 EVOLUTION-RO INSTALLATION, CONT. STEP 7: STEP 8: Install the pressure gauge assembly. Push the Install the Support Leg/Housing Wrench, short length of tubing into the left side of the as shown. gauge. Push the other end of the tubing in to the elbow connector fitting as shown.
-
Page 8: Performance And Dimensions
PERFORMANCE TFC Membrane Rejection Chart The TFC membrane rejection chart can be very helpful as a general guideline, but is not a guarantee. Every water source has a different chemistry, temperature and TDS, and it is best to test your water thoroughly to determine your unique water profile. -
Page 9: Component Specs
Exceptionally low pressure drop RO Membrane: HL 22045 HydroLogic Membranes are recognized as one of the industry’s most reliable EvolutionRO and highest performing membranes that deliver consistent performance and quality. Advanced membrane technology and manufacturing processes allow these membranes to deliver consistent results. -
Page 10: Quick Connect Fittings
QUICK CONNECT FITTINGS (QC) Connecting QC Fittings: Push tubing firmly into the fitting, all the way until the tube stops. The collet (gripper) has stainless steel teeth which hold the tube firmly in position while the O-ring provides a leak proof seal. Pull tubing to check for security. -
Page 11: Warranty And Support
WARRANTY AND SUPPORT Do not bring unit back to the dealer, contact HydroLogic directly for questions and warranty issues. A one year warranty against manufacturer’s defects comes with each unit. This does not include clogged or damaged pre-filters or RO membranes due to lack of regular maintenance or excessive sediment, chlorine, chloramines, iron, silica, manganese, sulfur or PPM in the source water. -
Page 12: Troubleshooting
Q: Why are both the 1:1 and 2:1 Flow Restrictors included in the box? A: The Flow Restrictor(s) determines your waste to purified water ratio. HydroLogic has always provided two options for the waste to purified water ratio, because water conditions vary across the world;... -
Page 13: Options
OPTIONS TDS Monitor HL 28010 Measures PPM of dirty water going in Flowmaster and pure water going out. Monitors HL 19020 performance of your membranes. Gallon meter and filter capacity monitor. Indicates when to change your filters. Pressure Regulator HL 26020 Required for water pressure over 80 psi. -
Page 14: Filter Replacement Notes
FILTER REPLACEMENT LOG MEMBRANE DATE CARBON PREFILTER DATE... -
Page 15: User Notes
NOTES...
