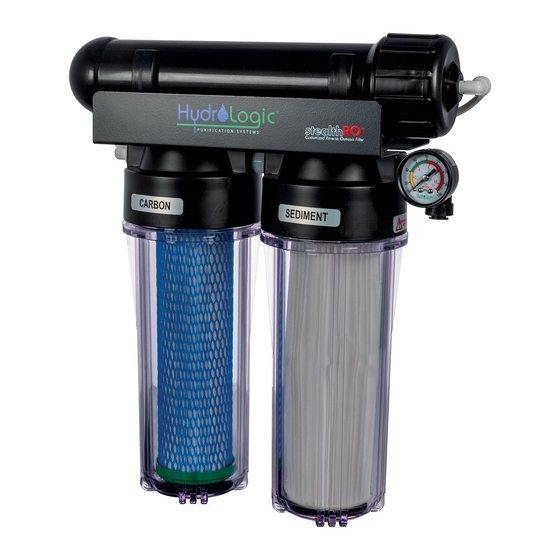

HydroLogic stealthRO150 User Manual
  1. Manuals
  2. Brands
  3. HydroLogic Manuals
  4. Water Filtration Systems
  5. stealthRO150
  6. User manual

HydroLogic stealthRO150 User Manual

Hide thumbs

Advertisement

Table of Contents

USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the stealthRO150 and is the answer not in the manual?

Questions and answers

Related Manuals for HydroLogic stealthRO150

Summary of Contents for HydroLogic stealthRO150

  • Page 1 USER MANUAL...

  • Page 2: Table Of Contents

    DESCRIPTION is a customized Reverse Osmosis water filter that is capable of reducing up to 99% of most contaminants. This system is designed and built for use with hydroponic or horticultural applications. This system is built to give the maximum amount of flow from the membrane while sending less wastewater to the drain, compared to similar RO filters.
  • Page 3 " pressure regulator (HL 10071 see pg. 15), available at your 80 psi, install a dealer or through HydroLogic. • Keep out of direct sunlight or high intensity lights, which degrade the housing and fittings over time. For added protection use the Algae Block Sleeve (HL 26009 see pg.

  • Page 4: Filter Replacement Schedule/Upgrade Filters Replacement Schedule

    BE SURE TO CHANGE YOUR PRE-FILTERS BASED ON THE FILTER REPLACEMENT SCHEDULE! The Flowmaster filter capacity monitor is a great way to keep track of your filter changes. (HL 19014 See pg. 15) Replacement HydroLogic Part # Filter Schedule clean regularly, Sediment filter—Pleated...
  • Page 5 • Specialty Carbon Filter for 100% Chloramines Removal • Meets NSF/ANSI component certification standards HL 22021 • Meets Prop 65 standards • 1,500 Gallon Capacity • 100% USA Made Replacement HydroLogic Part # Filter Schedule 1,500 gallons of purified HL 22021 water Note: Chloramines are a disinfecting agent that is being added by some cities to the water supply in place of, or in addition to, chlorine.

  • Page 6: Stealth-Ro150 Includes

    STEALTH-RO150 INCLUDES 1. Stage 1—Pleated, Cleanable Sediment filter Reduces dirt, sediment, silt, rust, etc. 2. Stage 2—Green Coconut Carbon KDF85/Catalytic Carbon upgraded filter Reduces chlorine and other toxins 3. Stage 3—150 GPD Reverse Osmosis Membrane Reduces PPMs of Total Dissolved Solids 4.

  • Page 7: Flow Restrictor Setup

    FLOW RESTRICTOR/FLUSH KIT SETUP 1:1 red 2:1 purple The system comes with Flow Restrictors which determine the wastewater to purified water ratios. The 2:1 (purple tubing) Flow Restrictor will give you the best trade-off between membrane life and wastewater. If you have relatively low Parts Per Million (PPM) source water or desire less wastewater you can choose to use the included 1:1 (red tubing)
  • Page 8 FLOW RESTRICTOR/FLUSH KIT ASSEMBLY, CONT. Open ASOV Next take the Flow Restrictor/Flush Kit Assembly and install it on the system by pushing the short piece of pre-installed black tubing on the Flow Restrictor/Flush Kit Assembly into the open black quick connect fitting on the ASOV. Note: When starting up the system for the first time, make sure that the blue valve an the Flow Restrictor/Flush Kit Assembly is in the open position (parallel with tubing).
  • Page 9 Assembly. You are now ready to connect the included garden hose adapter to your source water and the other end of the " white inlet tubing. There are a variety of feed valve options available to connect to any existing plumbing. Inquire at your dealer, or through HydroLogic.
  • Page 10 It is also a good way to make sure that the ASOV is working properly, meaning the black drain line is also shutting off shortly after the blue line shuts off. If there are problems of any kind please contact HydroLogic directly at 888-426-5644 Note: It may take up to 24 hours of running the system for the PPM of the purified water to stabilize at the lowest rejectiion reading.
  • Page 11 QUICK CONNECT FITTINGS (QC) Connecting QC Fittings: Scan To View Instruction Video Push tubing firmly into the fitting, all the way until the tube stops. The collet (gripper) has stainless steel teeth which hold the tube firmly in position while the O-ring provides a leak proof seal. Pull tubing to check for security.
  • Page 12 2. The flow rate of the product water slows down significantly. This can also happen if your pre-filters are clogged. If you change your pre-filters and the product water still flows slowly, this is an indication you need a new membrane. When in doubt, contact HydroLogic at 888.426.5644 or email us at techsupport@hydrologicsystems.com.
  • Page 13 CHANGING THE RO MEMBRANE, CONT. STEP 2: Firmly grip the membrane housing and twist the membrane cap counter clockwise using the provided filter wrench. STEP 3: You can now remove the membrane with either a strong set of needle nose pliers or something similar.
  • Page 14 CHANGING THE RO MEMBRANE, CONT. STEP 4: Push the new membrane back into the housing with the end that has the two black O-rings going in first. Push firmly until it bottoms out and can’t go in further. Then thread the cap back on tightly and reconnect the white 1/4"...

  • Page 15: Accessories

    ACCESSORIES Booster Pump with High Pressure Switch HL 29020 Boosts pressure to 65+ psi for increased flow rate of purified water. For low pressure situations Pressure Regulator (below 40 psi) or those wanting HL 10071 higher flow rates. high inlet pressure.
  • Page 16 ACCESSORIES, CONT. UV Sterilizer Kit HL 35015 Kills 100% of all bacteria and viruses. Ensures the safest water. Leak Detector & Shut Off Valve HL 19023 Installs on source/inlet line. If there is a leak anywhere in the system and water reaches the pad on the bottom of the leak protector the valve shuts off all incoming water, preventing further damage from the leak.

  • Page 17: Component Specs

    Green Coconut Carbon Filter—(Earth Friendly) HL 22110 HydroLogic is proud to introduce the first Carbon Block to use NSF61 listed green carbon. This high performance coconut shell carbon is manufactured using a patented process that significantly reduces harmful greenhouse gas emissions.
  • Page 18 NOTE: Operating your membranes outside of the parameters voids the warranty. Use only with microbiologically safe water. Do not use with water of any unknown origin or water quality. When in doubt contact HydroLogic to order a water analysis kit.

  • Page 19: Performance

    The membrane in the is capable of removing 99% of salts that are introduced by the softener. Contact HydroLogic for more info at 888-426-5644. All RO systems exhibit “TDS creep. ” The first few ounces of RO water produced are higher in PPM than after the system has run for a few minutes.

  • Page 20: Warranty And Support

    Change both clear pre-filter housings every three years, available through your local dealer or HydroLogic. HL 23165 Do not bring unit back to the dealer without contacting HydroLogic first. Contact HydroLogic directly for questions and warranty issues. The manufacturer believes the information and data contained herein to be accurate and useful.

  • Page 21: Troubleshooting

    77°F, 500 PPM, 60 psi. If your source water is colder than this, or your inlet pressure is lower, or your PPMs are significantly higher, then you will experience less than the rated GPD flow rates. HydroLogic provides solutions to these less-than-desirable source water conditions. For instance, we have a pressure booster pump for low psi, and additional pre-filtration for high PPM.
  • Page 22 Q: Why are both the Flow Restrictors included in the box? A: The Flow Restrictor(s) determines your waste to purified water ratio. HydroLogic has always provided two options for the waste to purified water ratio, because water conditions vary across the world; one fixed ratio would not work for every water...

  • Page 23: Contact Info

    Tech Support / Contact: If you have a particular application or steup question, you can call or email HydroLogic: techsupport@hydrologicsystems.com 1-888-H2O-LOGIC (1-888-426-5644) Visit us on the web at: www.hydrologicsystems.com Follow us! instagram.com/hydrologic facebook.com/hydrologicpurification...
  • Page 24 370 Encinal Street Suite 150 Santa Cruz, CA ph: 888.426.5644 fax: 831.336.9840 techsupport@hydrologicsystems.com ACCREDITED hydrologicsystems.com BUSINESS...
