Summary of Contents for HydroLogic micro75

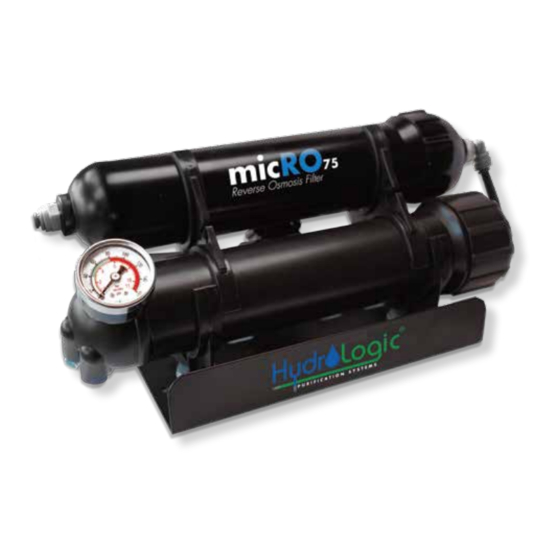

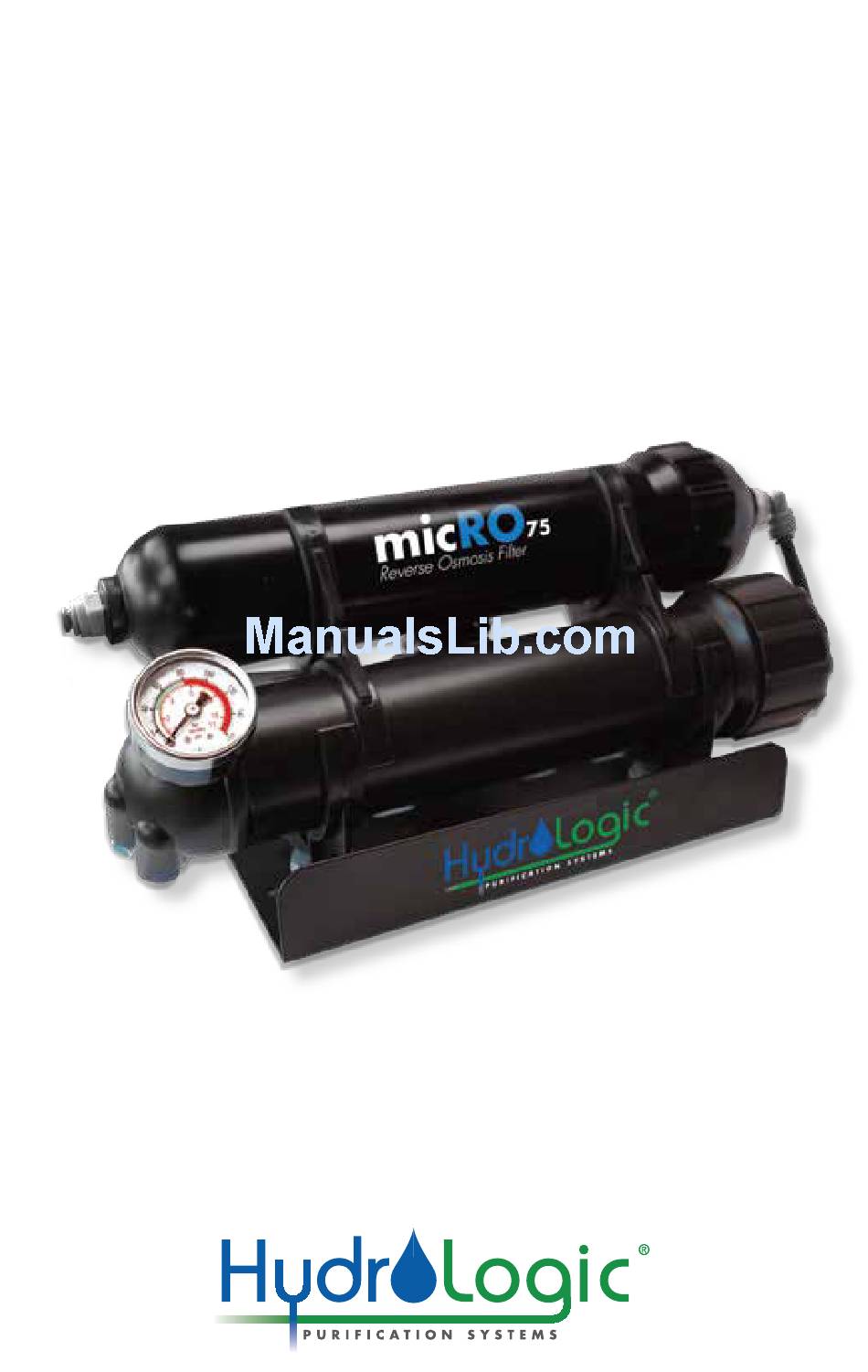

- Page 1 micRO Compact Reverse Osmosis System 75 GALLONS PER DAY User Manual...
- Page 2 Ready to GROW? HydroLogic’s family of world-class reverse osmosis and dechlorinator water filters offer something for everyone. Visit us at HydroLogicSystems.com and check out our huge line of diverse water filter solu- tions. pure water’s not magic..it’s logic...
- Page 3 Warranty: A One Year Warranty comes with each unit against manufacturer’s defects. This does not include clogged filters due to lack of regular maintenance or excessive sediment and/or con- taminants in water. This warranty also excludes damage to units caused by using the unit outside of the specified parameters.
- Page 4 The ratio of waste water is determined by the restrictor used on the drain line. The micRO75 is designed to run at a ratio of 2:1 ( 2 parts drain to 1 part product water) being about 50% more efficient than similar RO systems.
- Page 5 Description: The micRO75 is a customized Reverse Osmosis water filter that is capable of removing up to 98%+ of most contaminants. The system is designed for use with hydroponic or horticul- tural applications, but can also be used effectively in a variety of other settings as well. The filter is built to give the maximum amount of flow from the membrane while sending less waste water to drain, compared to similar RO filters.
- Page 6 4. Wall/floor mount bracket 8. Flow-restrictor 9. 1/4” inline shut-off valve Your micRO75 has some simple plumbing that consists of quick connect push in fittings and food grade tubing. Insert tubing into proper fittings. The White inlet tubing (with garden hose con- nector) goes into the right side of the top canister (#2, above).
- Page 7 Membrane/Filter Changes: It is essential that you keep the micRO75 pre-filter changed often. The filter has a rated life of approximately 1,000 gallons of Reverse Osmosis product water. The membrane usually lasts 6-18 months depending on the quality of your tap water and how often you change the carbon/KDF pre-filter.
- Page 8 1.5+ years. The only way to truly know is to test the RO and inlet water and see what percentage of the inlet water’s PPM the micRO75 is filtering out. You should see at least a 94% rejection of incoming PPM’s.
- Page 9 HydroLogic Purification Systems obligation shall limited solely to the refund of the purchase price or replacement of the product proven defective, is HydroLogic Purification System’s sole discretion.
- Page 10 Push In/Quick Connect Fittings: Connecting Push-In Fittings: Push tube firmly into the fitting, all the way to tube stop. The collet (gripper) has stainless steel teeth which hold the pipe firmly in position whilst the ‘0’ Ring provides a permanent leak proof seal. Pull tubing to check for security. If some tube pulls out then push all the way in again until it stops.
- Page 11 Upgrade Options: DI Post Filter #HL22072 Clips onto the micRO75 as a final polishing stage. Removes any last traces of TDS to produce ultra pure water. TDS Monitor #HL19006 Measures unpurified water PPM going in to reverse osmosis system and purified water PPM coming out. Monitors the performance of your RO system.
- Page 12 pure water’s not magic logic it’s 370 Encinal Street Suite 150 Santa Cruz, CA 95060 ph: 888.H20.LOGIC (888.426.5644) fax: 831.336.9840 info@hydrologicsystems.com www.hydrologicsystems.com...
