Summary of Contents for HydroLogic stealthro300

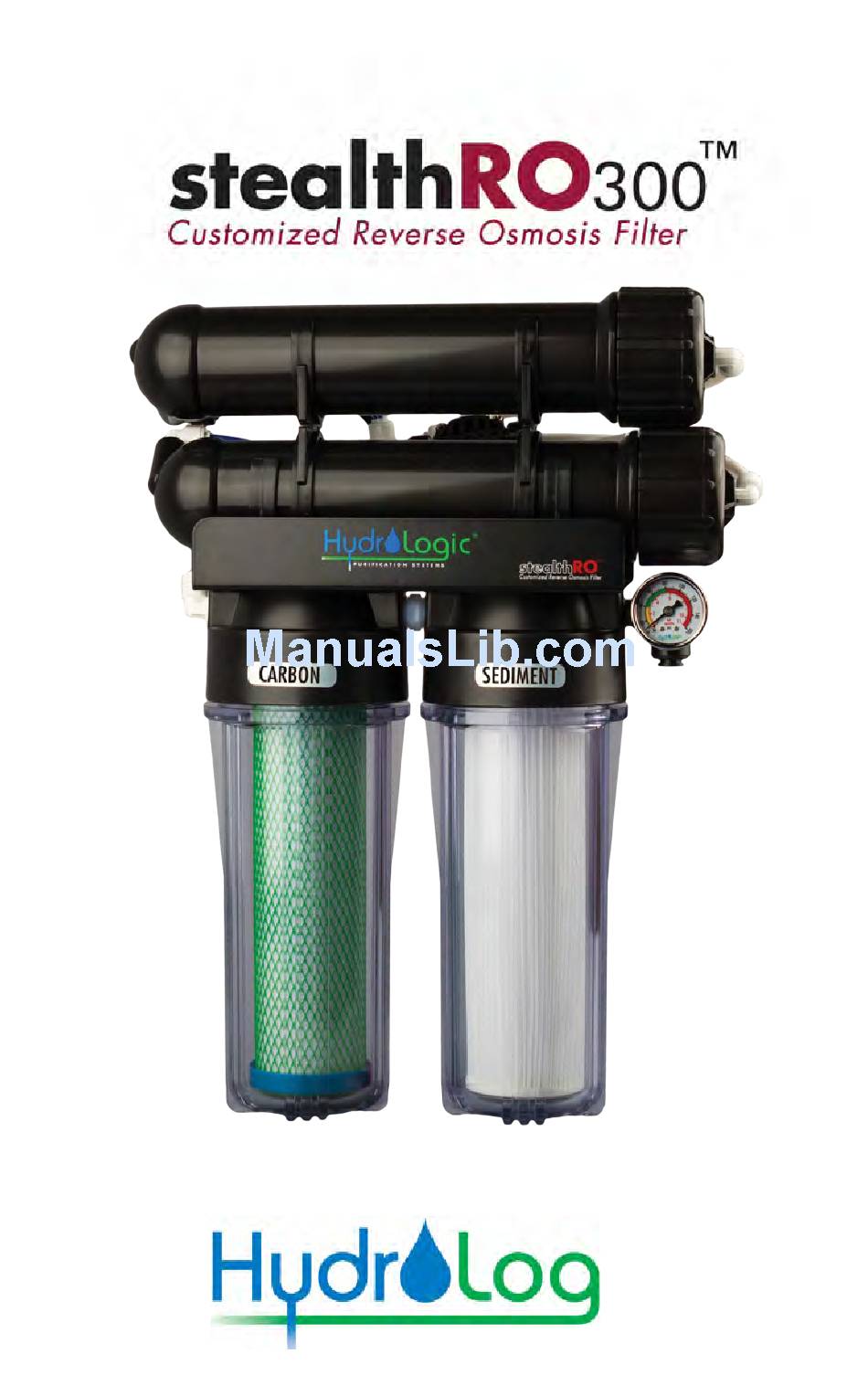

- Page 1 User Manual • ® PURIFICATION SYSTEMS...
-
Page 2: Table Of Contents

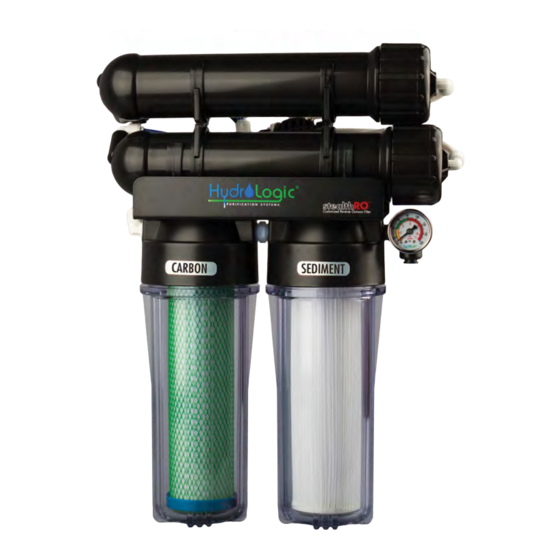

Description The stealthRO is a customized Reverse Osmosis water filter that ™ is capable of reducing up to 99% of most contaminants. This system is designed for use with hydroponic or horticultural applications. This system is built to give the maximum amount of flow from the membrane while sending less waste water to the drain, compared to similar RO filters. - Page 3 3/8” pressure regulator (HL#10071 see pg. 14), available at your dealer or through HydroLogic. If you suspect you may have a problem with water hammer or pressure spikes, use the high limit pressure gauge (HL#19036 see pg. 15) to determine what your upper pressure reading is.
-
Page 4: Filter Replacement Schedule
Filter Replacement Schedule: Hydro-Logic Replacement Filter Part Number Schedule 22121 6 months - 2 years Membrane Element - 2 x 150 GPD 1,250 gallons of Carbon Filter - Green - Coconut 22110 purified water 10” x 2.5” clean regularly , Sediment Filter - Pleated 22125 change every 6-12 months... - Page 5 Reverse Osmosis membranes quickly and lead to poor water quality and as a result lead to decreased yields and nutrient lock out. Thank you for choosing HydroLogic Purification Systems for your water filtration needs.
- Page 6 stealthRO Unit Includes: ™ - Pleated, Cleanable Sediment Pre-Filter reduces dirt, sediment, silt, rust, etc. 2. S - Green Coconut Carbon Block Pre-Filter reduces chlorine and other toxins - 2 x150 GPD Reverse Osmosis Membranes reduces PPMs of Total Dissolved Solids 4.
-
Page 7: Setup P
Setup ™ The system comes with 2:1 and 1:1 flow restrictors which determines the waste water to purified water ratios. The 2:1 (white tubing) flow restrictor will give you the best trade off between membrane life and waste water. If you have relatively low Parts Per Million (PPM) source water or desire less waste water you can choose to use the included 1:1 (purple tubing) flow restrictor. - Page 8 Setup ™ (cont.) ASOV Next take the flow restrictor/flush kit assembly and install it on the system by pushing the short piece of pre-installed black tubing on the flow restrictor/flush kit assembly into the open black quick connect fitting on the ASOV. When starting up the system for the first time, make sure that the blue valve on the flow restrictor/flush kit assembly is in the open position (parallel with tubing).
- Page 9 3/8” white inlet tubing. There are a variety of feed valve options available to connect to any existing plumbing. Inquire at your dealer, or through HydroLogic.
- Page 10 If there are problems kind please contact HydroLogic directly 888-426-5644 Note: It may take up to 24 hours of running the system for the PPM & pH of the purified water to stabilize.
- Page 11 Push In/QuickConnect Fittings Connecting Push-In Fittings: Link To Instruction Video https://goo.gl/L8b5Ri Push tubing firmly into the fitting, all the way to tube stop. The collet (gripper) has stainless steel teeth which hold the tube firmly in position while the O-ring provides a permanent leak proof seal. Pull tubing to check for security.
- Page 12 This can also happen if your pre-filters are clogged. If you change your pre-filters and the product water still flows slowly then it’s an indication you need a new membrane(s). When in doubt, contact HydroLogic. STEP 1: Remove the white 1/4” tubing...
-
Page 13: Changing The Ro Membranes
Changing the RO Membrane (cont.) STEP 2: Firmly grip the membrane . h ousing and twist the membrane cap counter clockwise using the provided filter wrench. STEP 3: You can now remove the membrane with either a strong set of needle nose pliers or something similar. - Page 14 The flow of purified water is determined by the GPD rating of the membrane, inlet pressure and inlet temperature. The stealthRO300™ has the capacity to produce 300 gallons per day (approx. 12.50 gallons/hour) when your inlet water is at 77 ºF, 60 PSI, 500 PPM. If your inlet pressure is less than 60 psi, you may experience less than the rated 300 GPD flow rate.
-
Page 15: Options P
Options Fo For low inlet pressure under 40 PSI. Boosts pressure to 60+ PSI, giving faster flow rates. Simply connects onto the source/inlet line. For high inlet pressure. Limits pressure to below 85 PSI. Fill any tank or reservoir unattended. Simply connects onto the Can be installed in lid or sidewall of tank. - Page 16 Options (cont.) De-Ionization Add On Kit Pressure Gauge - High Limit HL# 33005 HL# 19036 This de-ionization filter is designed to serve as Measures static pressure as well as high limit a post polishing stage for any Reverse Osmosis pressure. Used to diagnose water hammer or system delivering ultra pure 000 PPM water.
- Page 17 • NSF certified for material safety • Industry leading performance Use only with microbiologically safe and adequately disinfected water. Do not use with water of any unknown origin or water quality. When in doubt contact HydroLogic to order a water analysis kit.
- Page 18 Component Specifications (cont.) RO Membrane: stealthRO TF Membrane Elements are recognized as one of the ™ industry’s most reliable and highest performing membrane elements that deliver consistent performance quality. Advanced membrane technology and manufacturing processes allow these elements to deliver consistent results. •...
- Page 19 TFC Membrane Rejection Chart PolyP...
-
Page 20: Warranty/Support P
DO NOT BRING UNIT BACK TO THE DEALER WITHOUT CONTACTING HYDROLOGIC FIRST Contact HydroLogic directly for questions and warranty issues The manufacturer believes the information and data contained herein to be accurate and useful. The information and data are offered in good faith, but without guarantee, as conditions and methods of use of products are beyond the manufacturer ’s control. -
Page 21: Troubleshooting P
77 °F, 500 PPMs, 60 PSI. If your source water is colder than this, or your inlet pressure is lower, or your PPMs are significantly higher, then you will experience less than the rated GPD flow rates. Hydrologic provides solutions to these less-than-desirable source water conditions. For instance, we have a pressure booster pump for low psi, pre-filtration for high PPMs, and cold water specific membranes. - Page 22 9. Q: Why are both the 1:1 and 2:1 flow restrictors included in the box? A: The flow restrictor determines your waste to purified water ratio. HydroLogic has always provided two options for the waste to purified water ratio, because water conditions vary considerabley across the world;...
- Page 23 Follow us! instagram.com/hydrologic facebook.com/hydrologicpurification pinterest.com/hydrologic...
- Page 24 370 Encinal Street Suite 150 Santa Cruz, CA 95060 ph: 888.426.5644 fax: 831.336.9840 info@hydrologicsystems.com www.hydrologicsystems.com ACCREDITED BUSINESS ® what‘s Earth Friendly Company your water Built in USA footprint?
