Suction Filter; Suction Filter Removal Instructions; Figure 30 - Rpe-48-Bd Filter Element - AAON RZ Series Installation Operation & Maintenance

Suction Filter

In an effort to help protect the compressors
from contaminants during testing and startup,
AAON is now factory installing pleated
replaceable core suction line filters on the
RNE Series products (55, 65, and 75-140
tons)

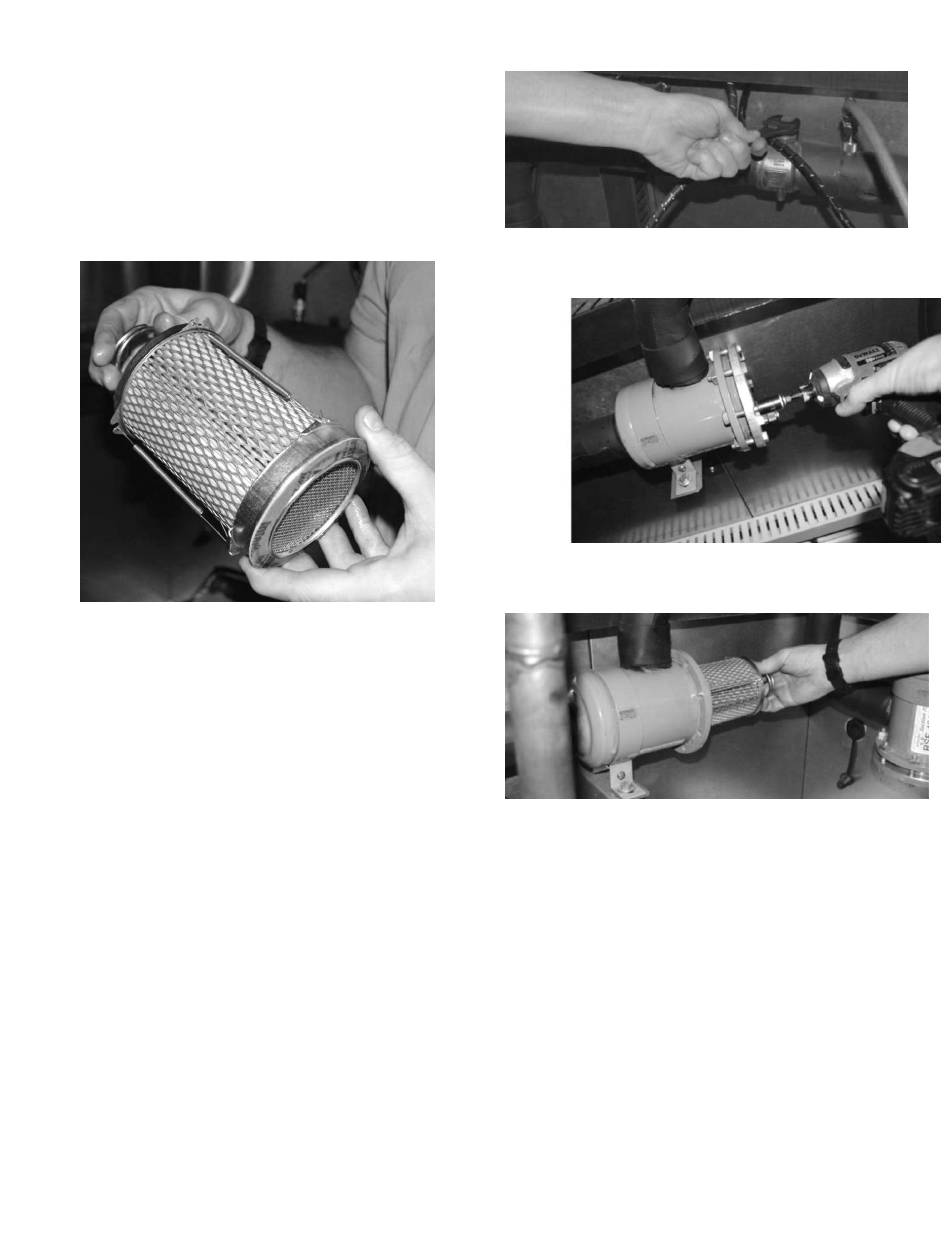

Figure 30 - RPE-48-BD filter element

One month after startup, remove the RPE-48-
BD filter element for the lowest possible
pressure drop. Removing the suction line
filter will improve the efficiency and capacity
of the unit. AAON installs isolation ball
valves on both sides of the suction line filter
so the complete system will not have to be
reclaimed/evacuated.

Suction Filter Removal Instructions

1. Shut down operation of the unit
2. Close both shut-off valves to isolate
the suction filter
3. Reclaim the refrigerant from the
suction filter section
4. Remove the bolts from the suction
filter end plate
5. Remove the pleated filter assembly
6. Replace the suction filter end plate
and bolts
7. Evacuate the suction filter assembly
to 300 microns
8. Open both shut-off valves
