Everpure Coldrink Series Installation And Operation Manual

Selecting A Mounting Location

1. Give consideration to the weight of the unit when operating (filled with water). Operating
weights of the Coldrink Systems are:
• System 1 - 24 lbs. (10.8 kg.)
• System 2 - 35 lbs. (15.8 kg)
• System 3 - 45 lbs. (20.2 kg)
2. The location should allow for:
• Minimum clearance of 2-1/2" under the cartridge(s) so it can be lowered for removal
and replacement.
• Adequate space for "in" and "out" water line connections.
• Be near a drain for flushing and near a 110V outlet if the accessory (sold separately)
Everguard Low Pressure Alarm is used. See Figures 1-6.

OPERATING SPECIFICATIONS*

Combined
Model Name
Coldrink System 1 - MC
Coldrink System 1 - XC
Coldrink System 1 - 4CB5
Coldrink System 1 - 7CB5
Coldrink System 2 - MC
Coldrink System 2 - XC
Coldrink System 2 - 4CB5
Coldrink System 2 - 7CB5
Coldrink System 3 - MC
Coldrink System 3 - XC
Coldrink System 3 - 4CB5
Coldrink System 3 - 7CB5
* For individual cartridge specifications, refer to cartridge literature.
Temperature: 35-100°F (2-38°C)
Pressure: 10 - 125 psi (0.7 - 8.6 bar), non-shock
For cold water use only.
Manufactured by Everpure
Installation and Operation Guide
Replacement
Cartridge Flow Rate
MC 1.67 gpm (6.3 lpm)
XC 1.67 gpm (6.3 lpm)
4CB5 1.67 gpm (6.3 lpm)
7CB5 2.5 gpm (9.4 lpm)
MC 3.3 gpm (12.6 lpm)
XC 3.3 gpm (12.6 lpm)
4CB5 3.3 gpm (12.6 lpm)
7CB5 5.0 gpm (18.9 lpm)
MC 5.0 gpm (18.9 lpm)
XC 5.0 gpm (18.9 lpm)
4CB5 5.0 gpm (18.9 lpm)
7CB5 7.5 gpm (28.2 lpm)
Coldrink Series Filter Systems
Capacity
9,000 gal (34,000 L)
12,000 gal (45,420 L)
6,000 gal (22,710 L)
10,000 gal (37,850 L)
18,000 gal (68,000 L)
24,000 gal (90,840 L)
12,000 gal (45,420 L)
20,000 gal (75,700 L)
27,000 gal (102,000 L)
36,000 gal (136,260 L)
18,000 gal (68,000 L)
30,000 gal (113,550 L)
Figure 1 - Coldrink 1 System
Figure 2 - Coldrink 2 System

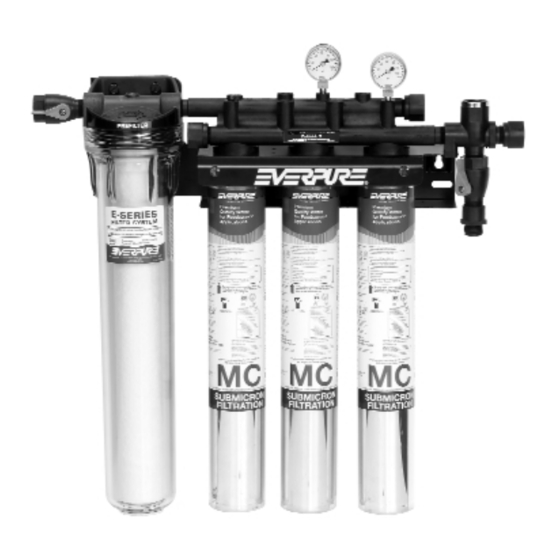

Figure 3 - Coldrink 3 System
