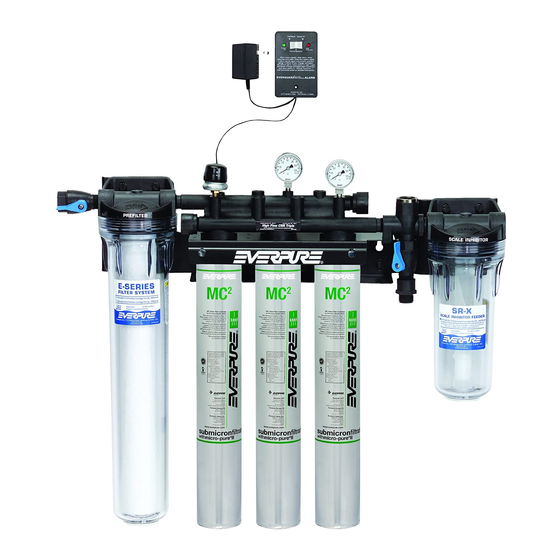

High flow csr filter systems

Advertisement

Quick Links

Selecting A Mounting locAtion

1. Give consideration to the weight of the unit when operating (filled with water). Operating weights
of High Flow CSR Systems are:
• Twin System - 45 lbs (20.2 kg)
• Triple System - 47 lbs (21.2 kg)
• Quad System - 49 lbs (22.2 kg)
• Quad Plus System - 49 lbs (21.2 kg) + separate surge/storage tank @ 60 lbs (27.2 kg)
2. The location should allow for (See figures 1-8):
• M inimum clearance of 2
1
2
replacement.
• A dequate space for "in" and "out" water line connections. Be near a drain for flushing and near
a 110V outlet if the optional Everguard
• A dditional mounting and floor space for the separate SR-X Feeder and surge/storage tank
Plus).

operAting SpecificAtionS*

combined Model name
High Flow CSR Twin - MC
High Flow CSR Twin - MC
2
High Flow CSR Twin - XC
High Flow CSR Twin - XC
2
High Flow CSR Twin - 4CB5
High Flow CSR Twin - 7CB5
High Flow CSR Triple - MC
High Flow CSR Triple - MC
2
High Flow CSR Triple - XC
High Flow CSR Triple - XC
2
High Flow CSR Triple - 4CB5
High Flow CSR Triple - 7CB5
High Flow CSR Quad - MC
High Flow CSR Quad - MC
2
High Flow CSR Quad Plus - XC
High Flow CSR Quad Plus - XC
* For individual cartridge specifications, refer to cartridge literature.
temperature: 35-100°F (2-38°C)
pressure:
10 - 125 psi (0.7 - 8.6 bar), non-shock
For cold water use only.

inStAllAtion

1. U se the predrilled mounting holes in the manifold bracket as guides. Mark and drill anchor holes.
Mount securely. See Figures 5-8.
2. S hut off power to equipment. If system is a High Flow CSR Quad Plus (separate SR-X Feeder and
surge/storage tank
), proceed to step 3b.
3a. C onnect outlet ports of High Flow system to equipment served per the instructions below. Always
use NSF approved pipe dope or Teflon tape at all connections. Use a backup wrench on all fittings
while connecting to avoid stress on the system components.
• T he cross fitting before the SR-X Feeder has a threaded outlet on top. Connect a minimum 1/2"
I.D. line from this outlet to fountain beverage equipment.
• T he cross fitting has a flushing valve installed on the bottom. Connect tubing to the flushing valve
and run to drain. Note: Some municipal plumbing codes and good sanitary practices require an
air gap at the drain termination point.
Manufactured by Everpure
" under the cartridge(s) so it can be lowered for removal and
Low Pressure Alarm is used.
replacement
flow rate
cartridge
MC
3.3 gpm (12.5 lpm) 18,000 gal.(68,000 L)
MC
3.3 gpm (12.5 lpm) 18,000 gal.(68,000 L)
2
XC
3.3 gpm (12.5 lpm) 18,000 gal.(68,000 L)
XC
2
3.3 gpm (12.5 lpm) 18,000 gal.(68,000 L)
4CB5
3.3 gpm (12.5 lpm) 12,000 gal.(45,400 L)
7CB5
5.0 gpm (18.9 lpm) 20,000 gal.(75,700 L)
MC
5.0 gpm (18.9 lpm) 27,000 gal.(102,000 L)
MC
5.0 gpm (18.9 lpm) 27,000 gal.(102,000 L)
2
XC
5.0 gpm (18.9 lpm) 36,000 gal.(136,000 L)
XC
5.0 gpm (18.9 lpm) 36,000 gal.(136,000 L)
2
4CB5
5.0 gpm (18.9 lpm) 18,000 gal.(68,000 L)
7CB5
7.5 gpm (28.5 lpm) 30,000 gal.(113,550 L)
MC
6.6 gpm (25.2 lpm) 36,000 gal.(136,000 L)
MC
6.6 gpm (25.2 lpm) 36,000 gal.(136,000 L)
2
XC
6.6 gpm (25.2 lpm) 48,000 gal.(181,600 L)
XC
6.6 gpm (25.2 lpm) 48,000 gal.(181,600 L)
2
2
Installation and Operation Guide
(Quad
capacity
High Flow CSR Filter Systems

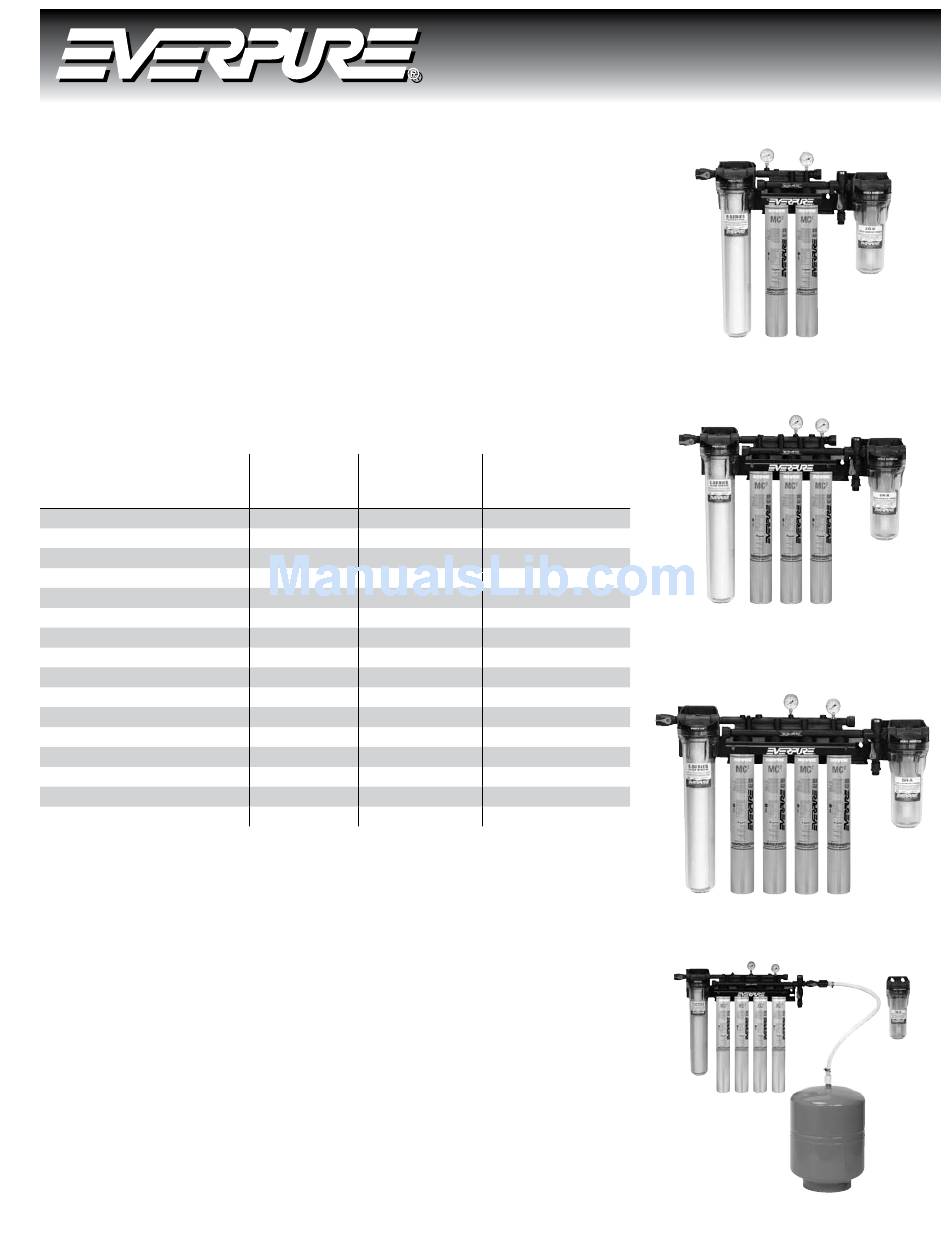

Figure 1 – Twin
Figure 2 – Triple
Figure 3 – Quad
Figure 4 – Quad Plus
EV3112-78 Rev E AP08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV3112 and is the answer not in the manual?

Questions and answers

Summary of Contents for Everpure EV3112

  • Page 1: Operating Specifications

    3.3 gpm (12.5 lpm) 18,000 gal.(68,000 L) 3.3 gpm (12.5 lpm) 18,000 gal.(68,000 L) 3.3 gpm (12.5 lpm) 12,000 gal.(45,400 L) 5.0 gpm (18.9 lpm) 20,000 gal.(75,700 L) 5.0 gpm (18.9 lpm) 27,000 gal.(102,000 L) 5.0 gpm (18.9 lpm) 27,000 gal.(102,000 L) 5.0 gpm (18.9 lpm) 36,000 gal.(136,000 L) 5.0 gpm (18.9 lpm) 36,000 gal.(136,000 L) 5.0 gpm (18.9 lpm) 18,000 gal.(68,000 L) 7.5 gpm (28.5 lpm) 30,000 gal.(113,550 L) 6.6 gpm (25.2 lpm) 36,000 gal.(136,000 L) 6.6 gpm (25.2 lpm) 36,000 gal.(136,000 L) 6.6 gpm (25.2 lpm) 48,000 gal.(181,600 L) 6.6 gpm (25.2 lpm) 48,000 gal.(181,600 L) High Flow CSR Filter Systems Figure 1 – Twin (Quad † Figure 2 – Triple Figure 3 – Quad Figure 4 – Quad Plus EV3112-78 Rev E AP08...
  • Page 2 • P lug the LPA power adapter into an outlet. The audible alarm should activate. Push the reset switch to silence. • Unplug the LPA unit. 7. Shut off the system inlet valve located on the inlet of the prefilter head. 8. C heck to be sure the o-ring on the prefilter housing is sufficiently lubricated. Use a good grade of silicone lubricant, if needed. Position the EC210 prefilter cartridge on guide seat in the bottom of the bowl. Then thread the bowl into the head by hand. Use a sump wrench to snug the bowl onto the head. 9. I nstall only genuine Everpure™ carbon filter cartridge(s) into the filter head(s) following directions on the cartridge label or as shown in the Cartridge Change illustrations. Install the SS-10 Scale Inhibitor cartridge into the SR-X housing. 10. Turn on inlet water to the filter system and check for leaks. 11. O pen the flushing valve and flush the cartridge(s) by running water through at full force for five minutes. This will set the filtering media and purge any air and fines, insuring maximum filter life. See illustrations. 12. A fter flushing, close the flushing valve, turn on power to equipment and plug the LPA (if so equipped) into the electrical outlet. The system is ready for operation. fluSHing for maximum life, all carbon filter cartridges must be flushed for five minutes at full flow before use. All...
  • Page 3 1. S hut off power to equipment. Shut 2. P ush red relief valve. Unscrew off inlet water ahead of system. bowl. Remove prefilter cartridge. everpure carbon filter cartridge 2. O pen flushing valve to relieve change pressure. 1. S hut off power to equipment. Shut 3. Hold head firmly and push upward.
  • Page 4: Replacement Parts

    Any part found defective within the terms of this warranty will be repaired or replaced (at everpure’s discretion) by your local dealer or everpure technical service. you pay only freight from our factory and local dealer charges.
