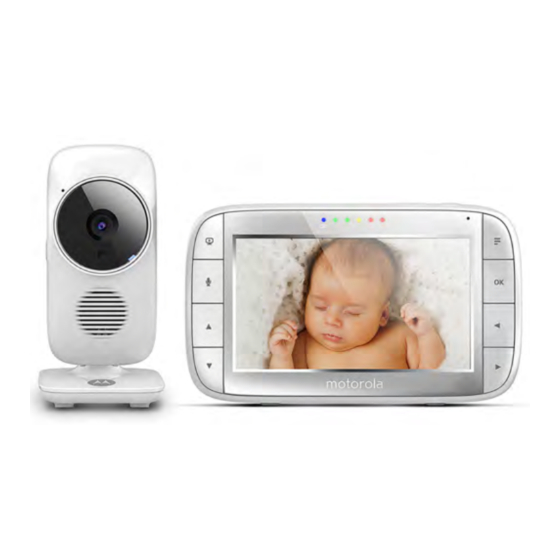

Motorola MBP48 Quick Start Manual

Digital video baby monitor
Hide thumbs

Advertisement

Quick Links

QUICK START GUIDE
1. Setting up your Digital Video Baby Monitor
MODELS:
MBP48
A. Connecting the power supply for the Baby Unit.
MBP48-2,
MBP48-3,
MBP48-4
WARNING:
Strangulation Hazard: Children have STRANGLED in cords. Keep this cord out of the
reach of children (more than 3 feet away).
Never use extension cords with AC Adapters. Only use the AC Adapters provided.
B. Connecting the power supply for the Parent Unit.
• Connect the micro USB plug of the power adapter to the parent unit and the other
end to a suitable mains power outlet.
• Only use the enclosed adapter (5V DC/1000mA).
• A rechargeable battery inside the Parent Unit allows you to move it without losing the
link and picture from the Baby Unit. The battery gives up to 5 hours operation for the
Parent Unit. We recommend you charge it for at least 16 hours before first use, or
when the Parent Unit indicates the battery is low.
• Press and hold the POWER button
N
E
2. Basic operation of the keys
Parent Unit
0
Baby Unit
• Connect the small plug of the power
adapter to the Baby Unit and the other
end to a suitable mains power outlet.
• Only use the enclosed adapter (6V DC /
500mA).
• Ensure the ON/OFF switch is at the
"ON" position.
0
on the top of the Parent Unit to turn it ON.
U
U
U
Press and hold to switch the Parent Unit ON//OFF.
ON/OFF button
Press to turn the screen off (audio stays on and any
button turns screen back on).
When in zoom mode, press and hold to move up
UP/DOWN buttons
or down the image.
Press to adjust menu settings.
When in zoom mode, press and hold to move left
LEFT/RIGHT
or right across the image.
buttons
Press to access different menu options.
MENU button
Press to open or close the menu options.
OK button
Press to confirm a selection.
VIDEO button
Press to turn the LCD screen ON/OFF.
TALK button
Press and hold to talk to your baby.
Volume buttons
Press -/+ to select volume level of the parent unit.
RESET button
Press and hold with a small pin to reset the unit.
Slide the power switch down to switch on the Unit.
ON/OFF switch
Slide the power switch up to switch off the Unit.
PAIR button
Press and hold to pair with a Parent Unit.
US EN
MODÈLES :
MBP48
MBP48-2,
MBP48-3,
MBP48-4
U
GU
1. I
p
A. Al
Dan
cord
N'ut
adap
B. Al
• Bra
bra
• Uti
• La
de
d'e
ava
• Ap
po
REM
Lorsq
capt
si la p
de l'é
2. F
Unité
0
Unité
