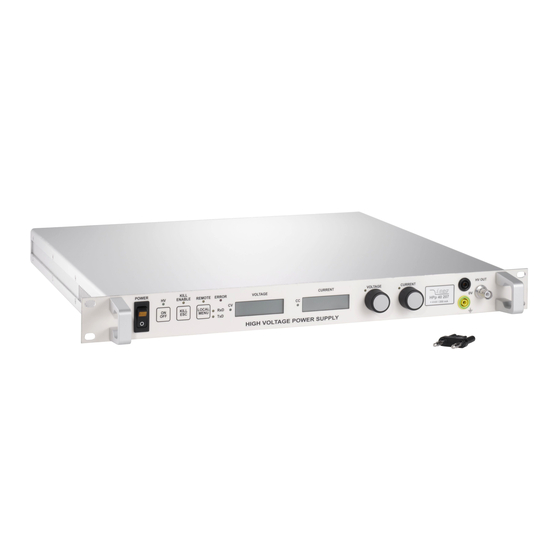

iseg HPS 300 W Manual

High voltage power supply
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
iseg Spezialelektronik GmbH
Bautzner Landstr. 23
D - 01454 Radeberg/ Rossendorf
Manual
High Voltage Power Supply
of the Device Classes
HPS 300 W, HPS 800 W
Email: sales@iseg-hv.de
http://www.iseg-hv.de
Tel ++ 49 (0)351 / 26 996 - 0
Fax ++ 49 (0)351 / 26 996 - 21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HPS 300 W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iseg HPS 300 W

Summary of Contents for iseg HPS 300 W

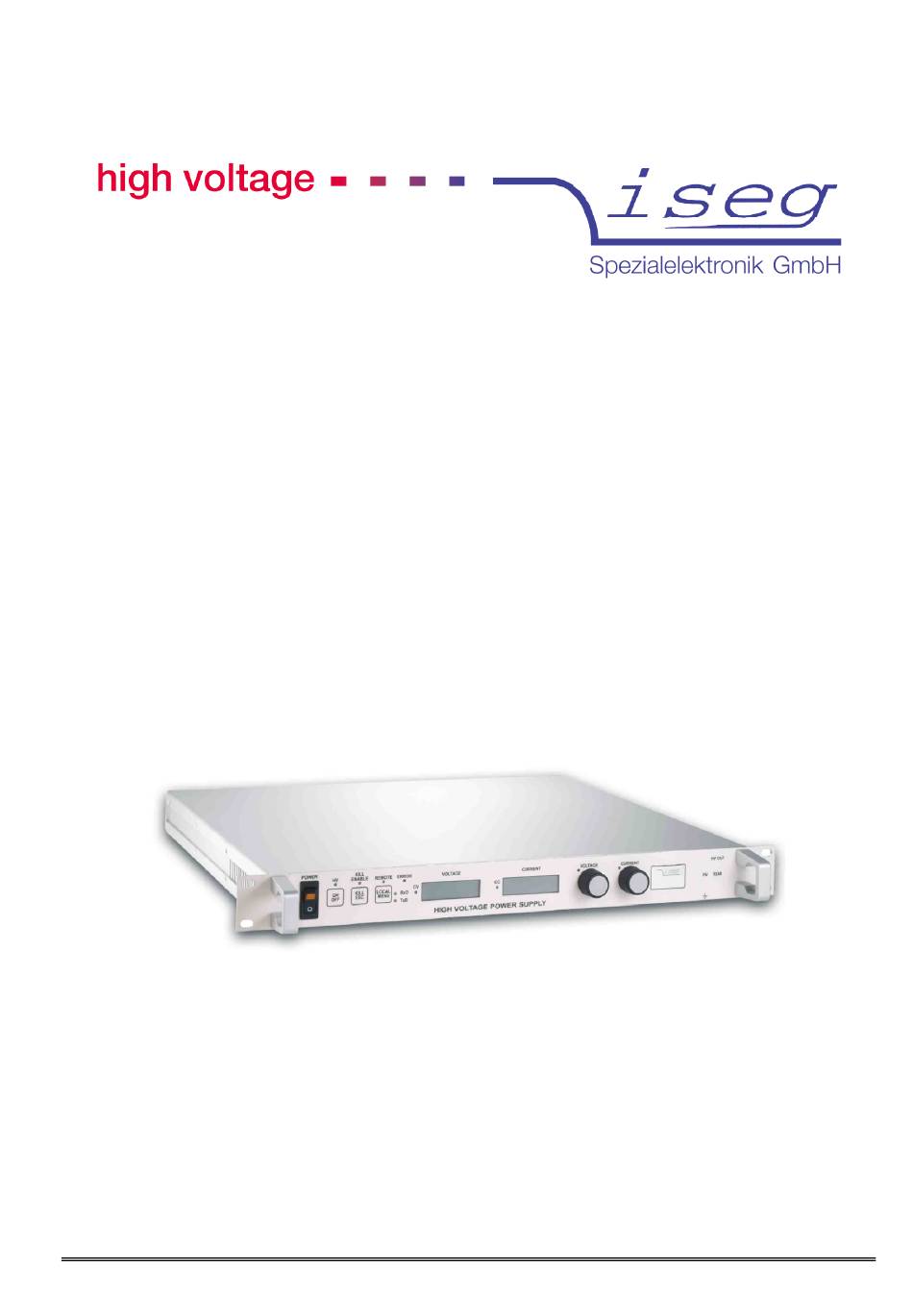

  • Page 1 Manual High Voltage Power Supply of the Device Classes HPS 300 W, HPS 800 W iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0)351 / 26 996 - 0 Bautzner Landstr. 23 http://www.iseg-hv.de Fax ++ 49 (0)351 / 26 996 - 21...
  • Page 2 Note! notes in the text point to special features. iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0)351 / 26 996 - 0 Bautzner Landstr. 23 http://www.iseg-hv.de...

  • Page 3: Table Of Contents

    Figure 6.3: Set values the display in HV ON state ........................16 Figure 5.4: Electrical wiring of the analogue and digital in- and outputs .................. 26 iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0) 351 / 26 996 - 0 Bautzner Landstr.
  • Page 4 Table 5.3: Pinout CAN connector ............................20 Table 5.4: Pin assignment male D Sub 9 connector ....................... 25 Table 6.1: Further Errors ................................. 27 iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0)351 / 26 996 - 0 Bautzner Landstr. 23 http://www.iseg-hv.de...

  • Page 5: Safety Instructions

    This High Voltage Power Supply has to be installed by trained and qualified personnel only. Warning! High voltage power supplies of the device class HPS 300 W, 800 W are supplied from single phase mains voltage and generate an output voltage up to 30 kV. The disregard of this voltage condition can cause death, heavy injuries or material damage.

  • Page 6: Device Description

    Device description High voltage power supplies of the device class HPS 300 W and 800 W are supplied from single phase mains voltage and generates an output voltage up to 30 kV as well as an output current up to 800 mA.

  • Page 7: Technical Data Device Class Hps, 300 W

    > 10 ∗ V Electrically isolated return of the high voltage Potential difference between return conductor and protective ground up to ± 400 V iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0) 351 / 26 996 - 0 Bautzner Landstr. 23 http://www.iseg-hv.de...

  • Page 8: Table 2.2: Additional Technical Data Hps 300W

    LEMO ERA3Y 660.0750-1 1U, 19“, 410 mm, 5 kg CLD, RS2, ETH, IEE or GES HB31T Note: Not all interfaces can be combined iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0)351 / 26 996 - 0 Bautzner Landstr. 23 http://www.iseg-hv.de...

  • Page 9: Technical Data Device Class Hps, 800 W

    > 10 ∗ V Electrically isolated return of the high voltage Potential difference between return conductor and protective ground up to ± 400 V iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0) 351 / 26 996 - 0 Bautzner Landstr. 23 http://www.iseg-hv.de...

  • Page 10: Electrical Wiring Of The High Voltage Output

    Note: Not all interfaces can be combined Electrical wiring of the high voltage output Figure 2.1: Electrical wiring of the high voltage output iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0)351 / 26 996 - 0 Bautzner Landstr. 23 http://www.iseg-hv.de...

  • Page 11: Dimensions

    Luftaustr itt Luftaustritt AIR EXHOUST AIR EXHOUST Figure 2.2: Dimensioned drawing, in mm iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0) 351 / 26 996 - 0 Bautzner Landstr. 23 http://www.iseg-hv.de Fax ++ 49 (0) 351 / 26 996 - 21...

  • Page 12: Functional Description

    Output current Operating area Output voltage Figure 3.1: Operating area of the device. iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0)351 / 26 996 - 0 Bautzner Landstr. 23 http://www.iseg-hv.de Fax ++ 49 (0)351 / 26 996 - 21...

  • Page 13: Monitoring

    (see Figure 3.2). Output power % 85 90 95 100 260 265 Input voltage (V iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0) 351 / 26 996 - 0 Bautzner Landstr. 23 http://www.iseg-hv.de Fax ++ 49 (0) 351 / 26 996 - 21...

  • Page 14: Interlock

    Table 3.2: Parameters of the ARC Management ARC-Number / second ARC-Wait ARC-Ramp Adjustable voltage ramp iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0)351 / 26 996 - 0 Bautzner Landstr. 23 http://www.iseg-hv.de Fax ++ 49 (0)351 / 26 996 - 21...

  • Page 15: Killenable

    IL connection See section 3.3 Interlock Interface connection See section USB, RS232 interface, CAN interface, IEEE interface, Ethernet interface and AIO interface. iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0) 351 / 26 996 - 0 Bautzner Landstr. 23 http://www.iseg-hv.de...

  • Page 16: Operation

    In HV-ON state the measured values of voltage and current are displayed: 0.995kV 752.3mA Figure 5.3: Set values the display in HV ON state iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0)351 / 26 996 - 0 Bautzner Landstr. 23 http://www.iseg-hv.de...
  • Page 17 The setting can be changed by the active rotary encoder (shown by yellow LED). By pressing the active rotary encoder the changes are stored and the main menu is displayed again. iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0) 351 / 26 996 - 0 Bautzner Landstr.
  • Page 18 + 0.02 • I OUTmax In kill mode "Enable" the bits "EVLIM" or "ECLIM" cause the high voltage to be switched off without a ramp. iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0)351 / 26 996 - 0 Bautzner Landstr. 23 http://www.iseg-hv.de...

  • Page 19: Interface Control

    For remote control, “RS-232” must be selected in Menu “F07 Set Interfce“. The device switches to the “REMOTE” state when receiving the first command via interface. iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0) 351 / 26 996 - 0 Bautzner Landstr.

  • Page 20: Table 5.1: Electrical Wiring Of The Rs232 Interface

    CAN-Interface Multi-Channel High Voltage Power Supply Module EHS xxx and EDS xxx. To control the device, the programs “IsegCANHVControl” or “iseg OPC Server” can be used. iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0)351 / 26 996 - 0 Bautzner Landstr.
  • Page 21 10001 (fixed) The connection can be tested with the ping command (Start programs accessories command). iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0) 351 / 26 996 - 0 Bautzner Landstr. 23 http://www.iseg-hv.de Fax ++ 49 (0) 351 / 26 996 - 21...
  • Page 22 SYN, ACK send() "*IDN?\r\n" recv() "iseg Spezialelektronik GmbH [...]" closesocket() FIN, ACK FIN, ACK The first three packages are for the establishing of a TCP-Connection (three way handshake). Fourth step is the inquiry from PC to HV unit. The order is ASCII coded in data field of the TCP packet. The answer is also ASCII coded send to the PC in step 5.
  • Page 23 WSACleanup(); // print answer to screen printf("%s\n", ans); return 0; iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0) 351 / 26 996 - 0 Bautzner Landstr. 23 http://www.iseg-hv.de Fax ++ 49 (0) 351 / 26 996 - 21...
  • Page 24 // close socket (three way handshake) and clean up closesocket(sock); WSACleanup(); // print answer to screen printf("%s\n", ans); return 0; iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0)351 / 26 996 - 0 Bautzner Landstr. 23 http://www.iseg-hv.de Fax ++ 49 (0)351 / 26 996 - 21...

  • Page 25: Description Of The Analogue I/O Interface (Aio)

    Now the generation of high voltage will start with a rising edge of the INHIBIT function. (without pushing the button “HV ON”). If another interface is chosen, the function “Auto AIF” will be disabled automatically. iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0) 351 / 26 996 - 0 Bautzner Landstr.

  • Page 26: Figure 5.4: Electrical Wiring Of The Analogue And Digital In- And Outputs

    Figure 5.4 shows the electrical wiring of the analogue and digital in- and outputs. Figure 5.4: Electrical wiring of the analogue and digital in- and outputs iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0)351 / 26 996 - 0 Bautzner Landstr.

  • Page 27: Troubleshooting

    For compliance of the specified accuracy of set and monitor signals, the unit has to be recalibrated once a year. Repair and maintenance may only be performed by trained and authorized personnel. iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Tel ++ 49 (0) 351 / 26 996 - 0 Bautzner Landstr.
