Summary of Contents for Eastwood 20254

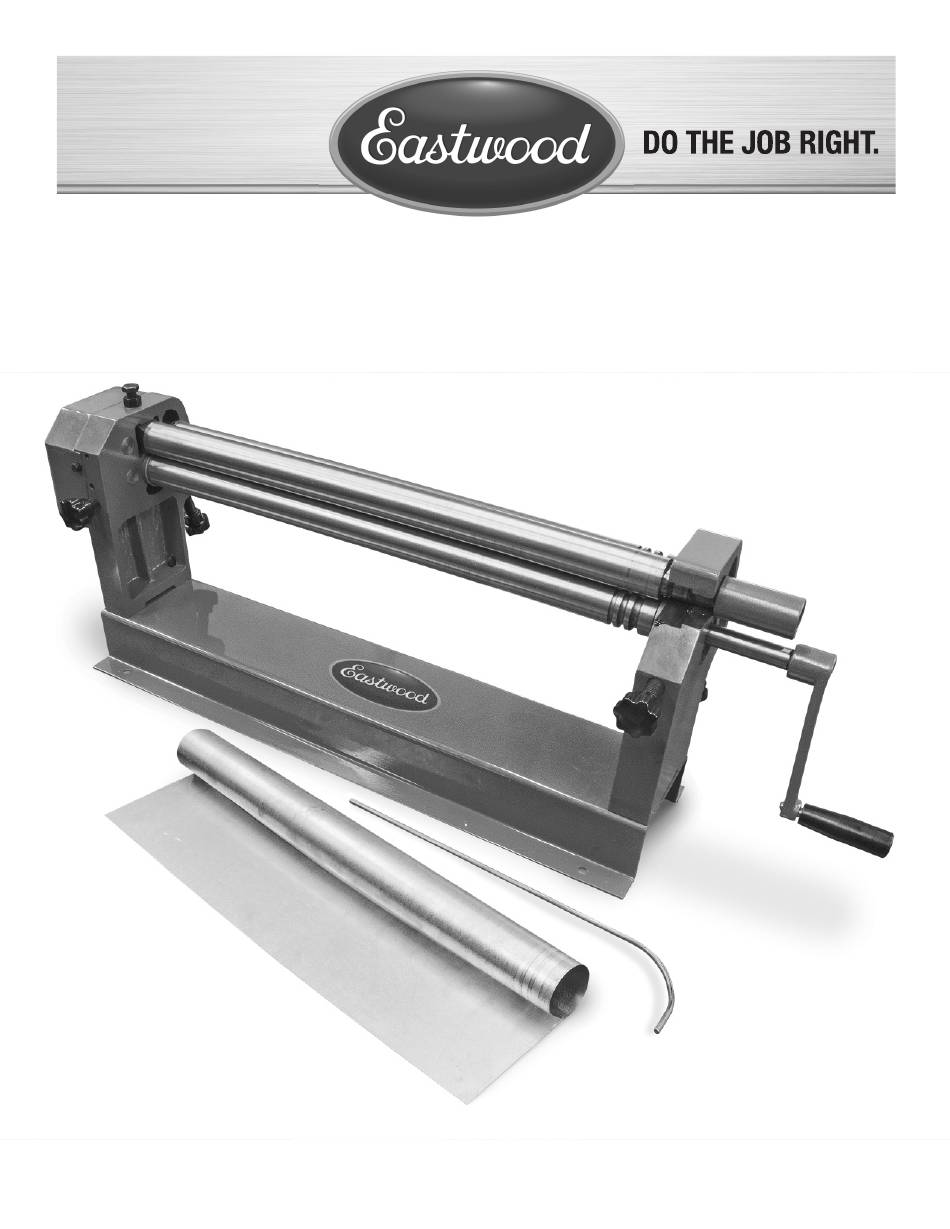

- Page 1 Item #20254 24" SLIP ROLL INSTRUCTIONS...
-
Page 2: Specifications
The Eastwood 24" Slip Roll is a professional metal fabricators tool which is indispensable for producing accurate bends, cylinders and conical shapes for virtually all metal working projects. In addition, the Upper and Rear Rollers feature grooves in 3 popular sizes for forming curves in Wire and Tubing. - Page 3 Align the dimple in the hole on the top roller and insert the bolt so the taper sits in the dimple. Tighten the locknuts. Thickness Thickness Adjustment Pin Adjustment Pin Fig. 3 Fig. 2 Crank Handle 3mm Set Screw Rear Roller Knob To order parts and supplies: 800.345.1178 >> eastwood.com...
-
Page 4: Operation
CREATING CURVED SHAPES The Eastwood Slip Roll is a great metal working tool that will expand your metal working possibilities. Before making an actual piece for your project, work with some scrap pieces of the same size and thickness to practice on and to dial in the desired radius. It is not possible to preset the Slip Roll to a pre determined radius so it will require some trial and error to get the correct radius. - Page 5 CREATING CYLINDERS The Eastwood Slip Roll can not only create bends but can also be used to form cylinders. Determine the diameter of the cylinder you want to form and calculate the circumference by using the formula below: Circumference = 3.14 X Diameter •...
- Page 6 WIRE & TUBE FORMING The Eastwood Slip Roll has features 3 grooves in the right end of the rollers. These are for forming bends into solid wire and tubing. The three sizes of wire and tubing that this tool can be used to form are: 3/16", 1/4", 5/16" [4.7mm, 6.3mm, 7.9mm].
-
Page 7: Maintenance
• Check operation for binding. Lubricate pivot points periodically with medium bodied lubricating oil. • Add grease to the drive gears by removing the metal guard located on the left side frame. To order parts and supplies: 800.345.1178 >> eastwood.com... - Page 8 Versa Bend Sheet Metal Brake If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 800.544.5118 >> email: techelp@eastwood.com PDF version of this manual is available online >> eastwood.com/20254manual The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA US and Canada: 800.345.1178...
