ESL Intensifier
010583-3 (Rev. P)

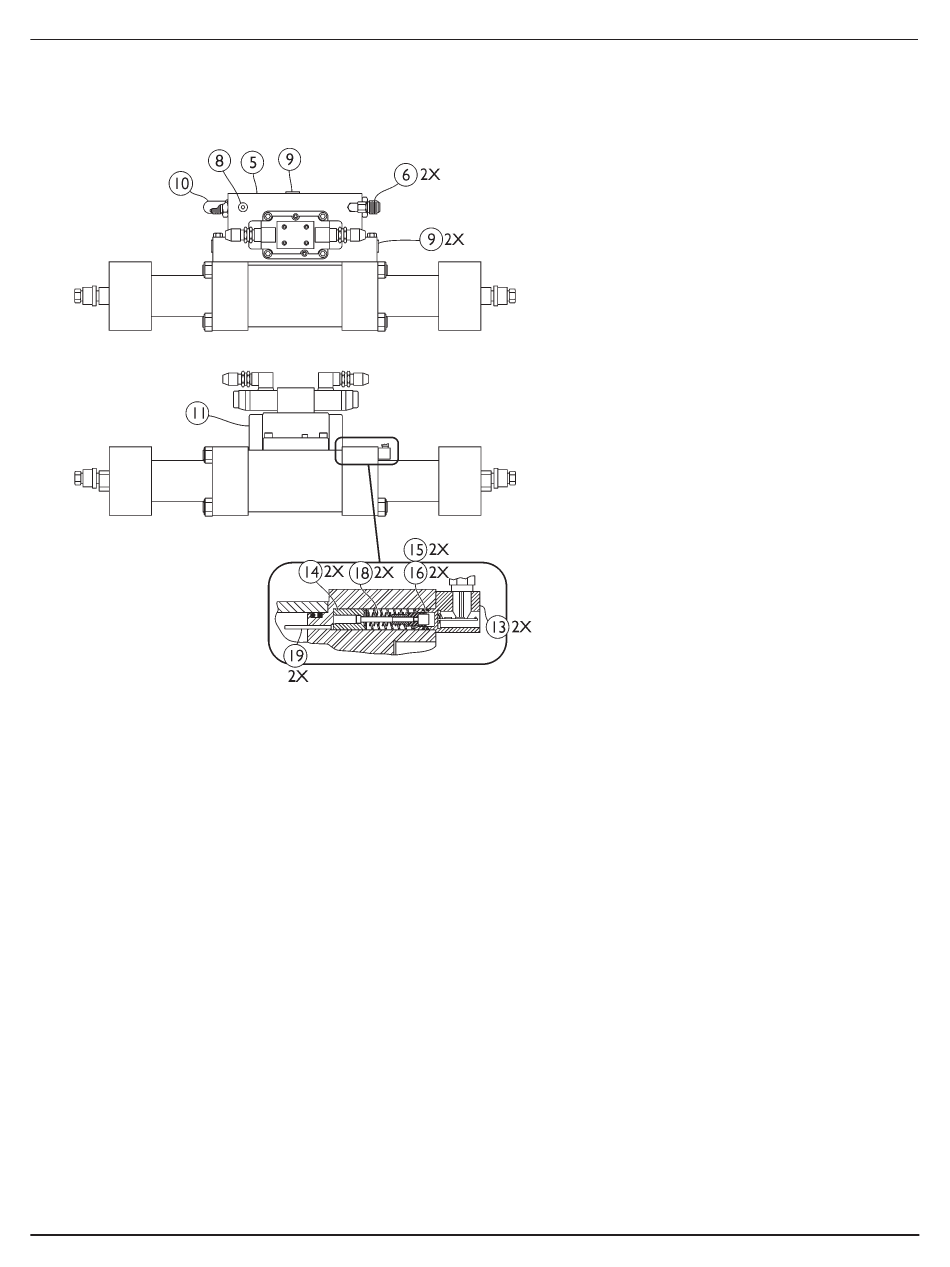

Manifold assembly, electric shift
Item Part #
Qty
1
010558-30
1
5
013403-1
1
6
A-0636-23
2
8
A-0641-6
1
9
A-0641-7
3
11
A-18862
1
13
011275-1
2
14
B-8346-1
2
15
A-0276-012
2
16
A-0275-012
2
17
A-0102-16
4
18
A-2409
2
19
B-1702-1
2
38 | M-310
Description
Intensifier assembly
Manifold
Connector
Plug
Plug
Shift valve
Sensor assembly
Actuator assembly
Backup ring
O-ring
Screw
Compression spring
Firing pin
