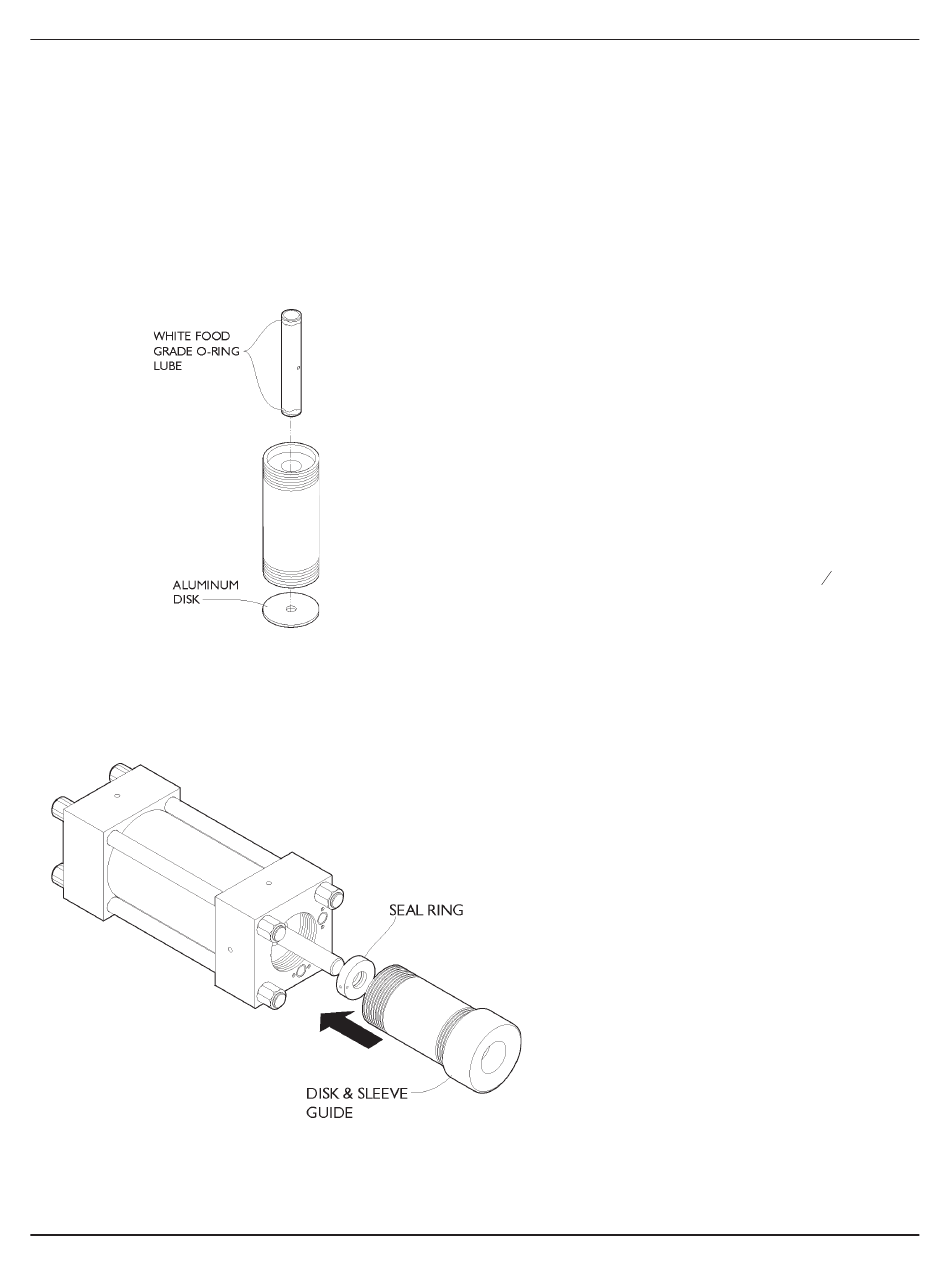

24. Lubricate inside and outside the hoop with white food grade
o-ring lube. Reassemble the sleeve guide and sleeve onto the
cylinder, place the hoop in the sleeve, and insert the hoop by
tapping the installation tool lightly with a mallet.
25. Place the flat end of the cylinder on the aluminum disk. Lightly
lubricate each end of the backup sleeve with white food grade
o-ring lube; insert the sleeve into the cylinder. Take care not to
damage parts or dislodge the seal and hoop.
Repeat Steps 21–25 to install the remaining seal assem-
•
bly into the recessed end of the cylinder.
26. Place the aluminum disk on the non-recessed end of the cylin-
der. Thread the sleeve guide over it onto the cylinder. The disk
prevents the seals, hoops, and sleeve from being dislodged
while installing the cylinder.
18 | M-310
27. Slide the new seal ring onto the plunger. It
should fit tightly, but should slide along
the plunger with only slight, intermittent
resistance.
Note: The seal ring is a wear item and
must be replaced at every seal change.
28. Coat the plunger evenly with a thin layer
of white food grade o-ring lube.
29. Coat the threads of the end bell with a
thin layer of Blue Lubricant. Carefully
slide the cylinder onto the plunger until it
can be threaded into the end bell.
Notes:
If the plunger has been fully re-
•
tracted, the plunger will not contact
the seal until the cylinder has been
partially threaded onto the end bell.
This will make installation easier.
Thread the cylinder on until hand
•
tight. The cylinder should thread on
easily and stop firmly. If you can
turn the cylinder another
more beyond full thread
engagement, the hoop could be dis-
lodged. Remove the cylinder and
check for problems.
The high-pressure seals are fully
•
functional at a torque value only
slightly more than hand tight.
Torquing the cylinder to a value
greater than 120 ft-lb (88 N-m) is
unnecessary and makes disassembly
more difficult.
Never use a girth wrench for instal-
•
lation.
© Flow International Corporation
ESL Intensifier
turn or
1
8
