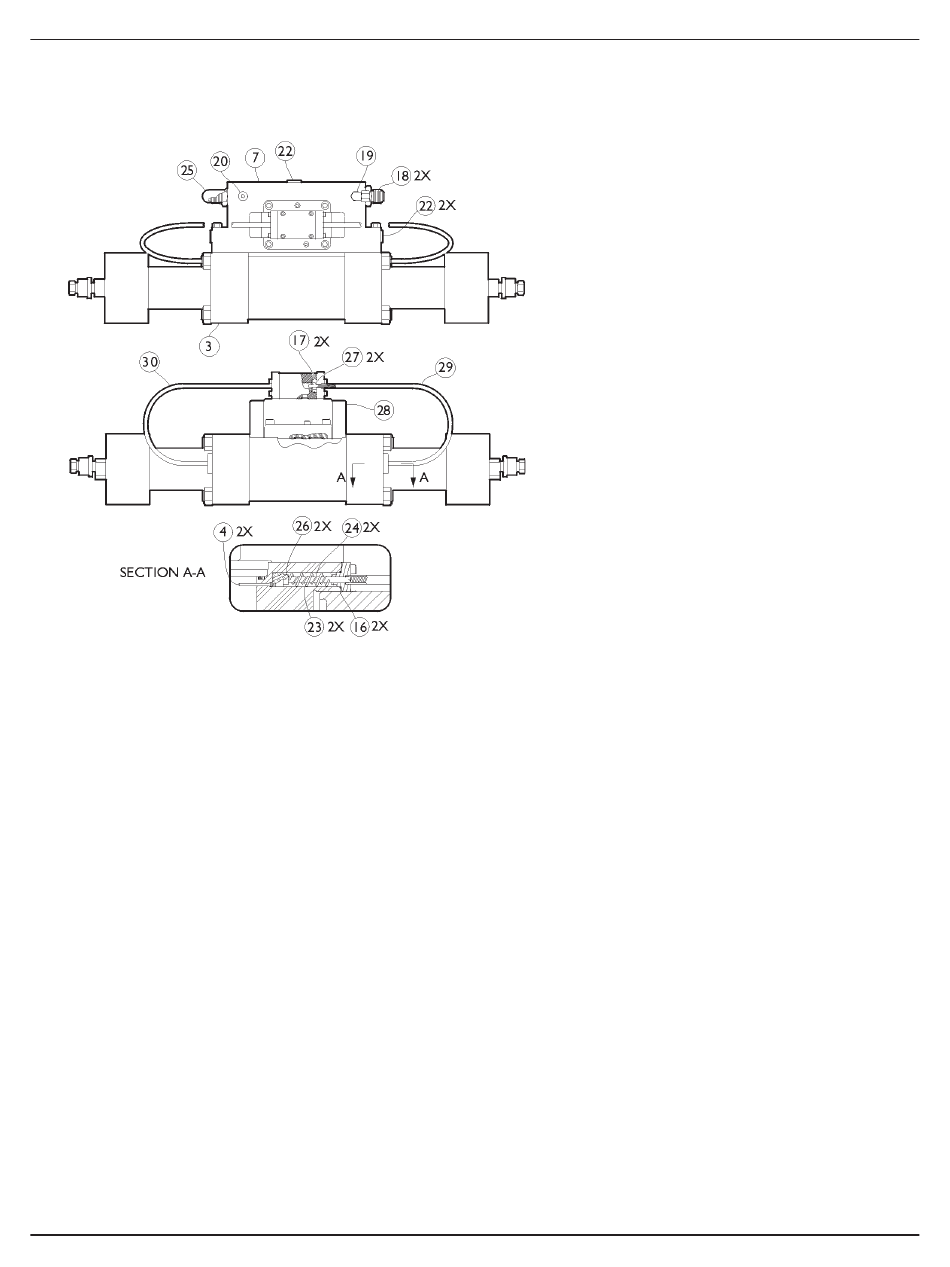

Manifold assembly, mechanical shift
Item Part #
Qty
3
010558-30
1
4
002226-1
2
7
013403-1
1
16
A-0275-014
2
17
A-0275-019
2
18
A-0636-23
2
19
A-0638-3
1
20
A-0641-6
1
22
A-0641-7
3
23
A-1012
2
24
A-1713
2
26
B-1007-1
2
27
B-1611-1
2
28
A-11215
1
29
C-5461
1
30
C-5462
1
© Flow International Corporation
Description
Intensifier assembly
Actuator pin
Manifold
O-ring
O-ring
Connector
Elbow
Plug
Plug
Spring
Compression spring
Actuating plunger
Shift pin
Shift valve/pilot valve assy
(C-2743-1, shift valve & 006869-1, pilot valve)
Cable guide assembly, RH
Cable guide assembly, LH
ESL Intensifier
