Sub-assemblies
010559-X (Rev. G)

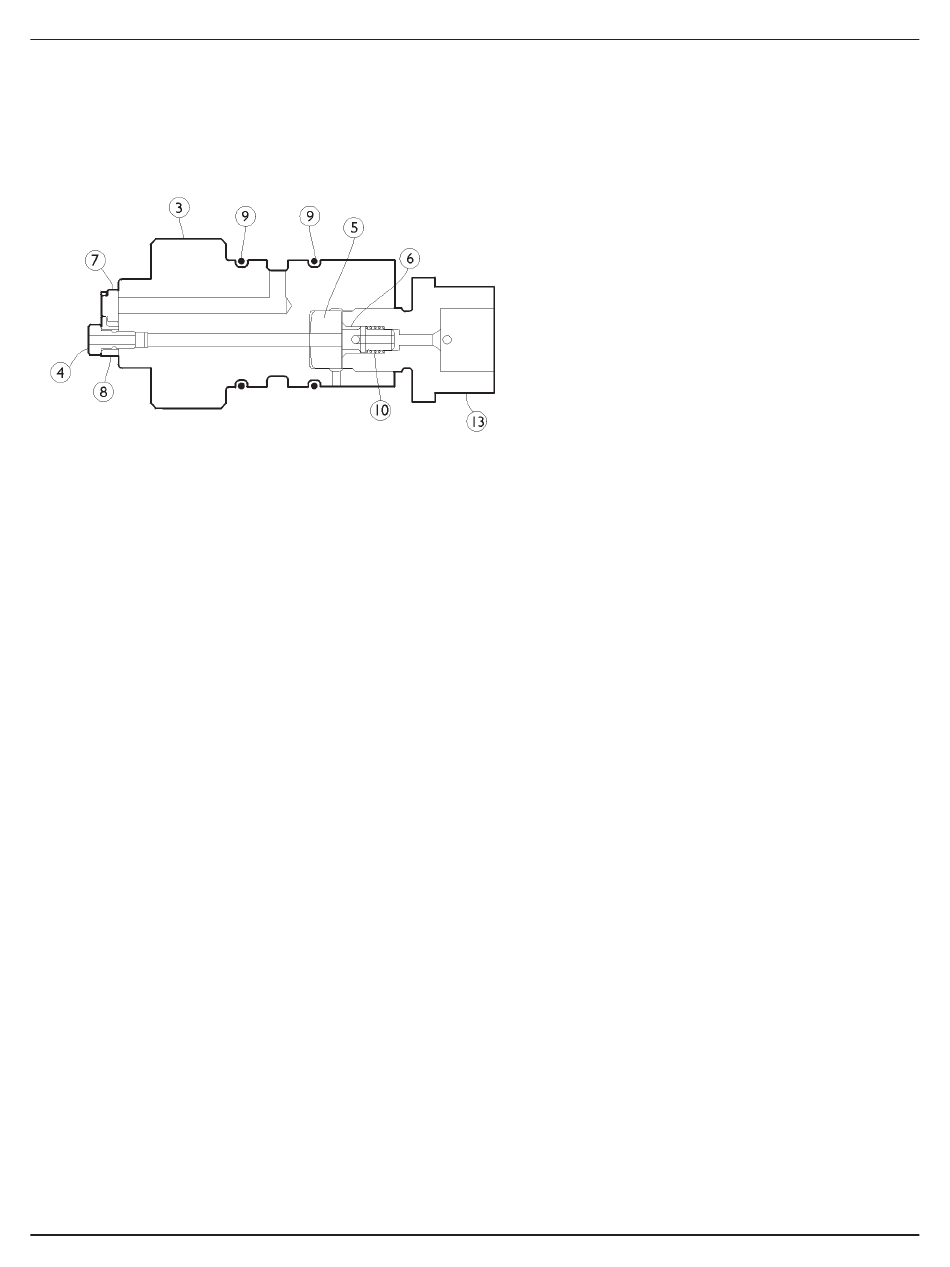

Check valve assembly
Item Part #
Qty
2
004383-2
1
3
004383-3
1
4
004380-1
1
5
004382-1
1
6
005917-1
1
7
015384-1
1
8
010564-1
1
9
A-0275-125
2
10
A-1606
1
11
A-2185
AR
12
A-3202
AR
13
C-1313-1
1
* not shown
010559-2 40,000 psi valve
010559-3 60,000 psi valve
© Flow International Corporation
Description
Check valve body (-2 only)
Check valve body (-3 only)
Inlet retaining screw
Insert
Outlet poppet
Inlet poppet
Support assembly
O-ring
Compression spring
Blue Lubricant *
Loctite #242 *
Outlet body
ESL Intensifier
M-310 | 35
