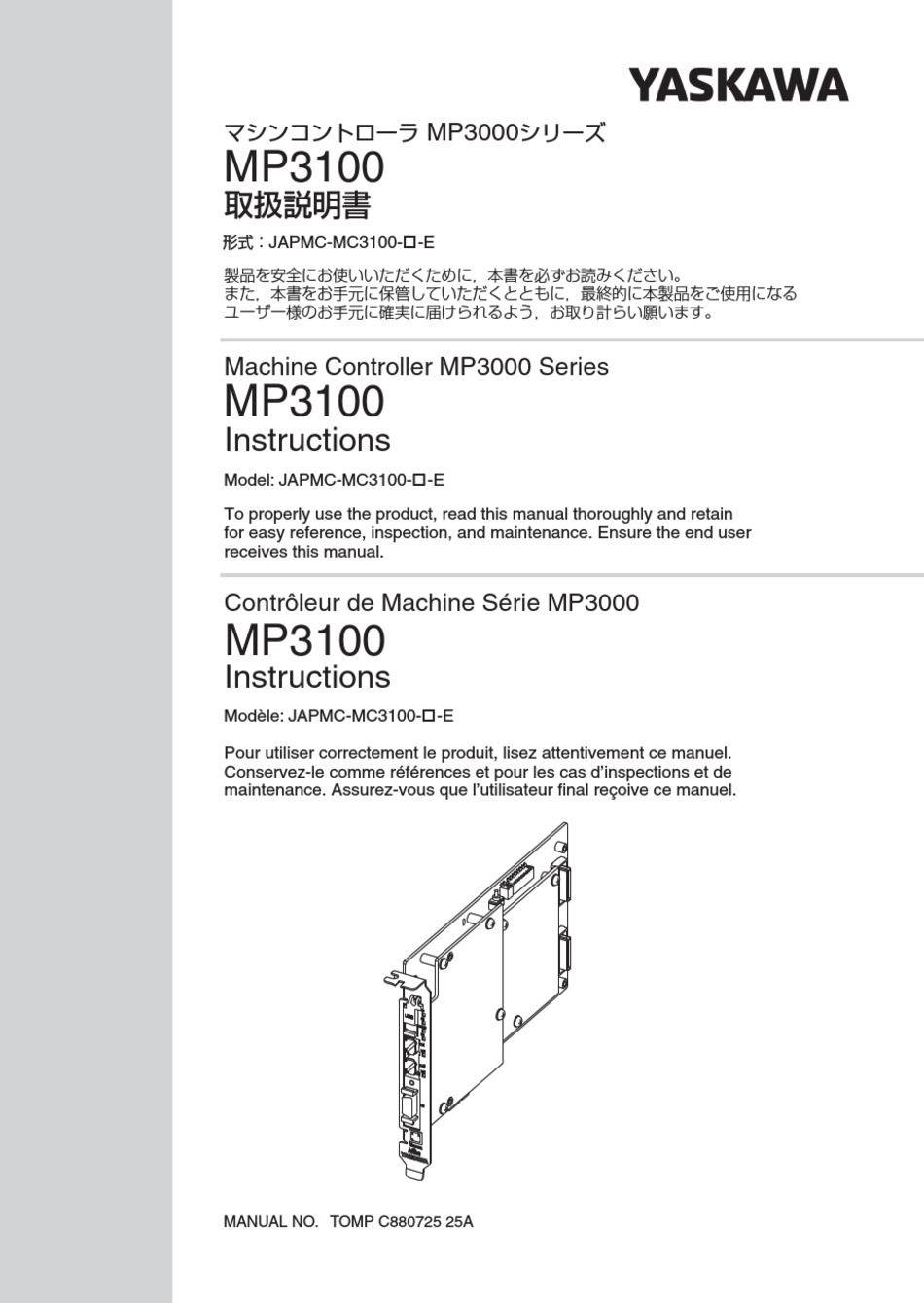

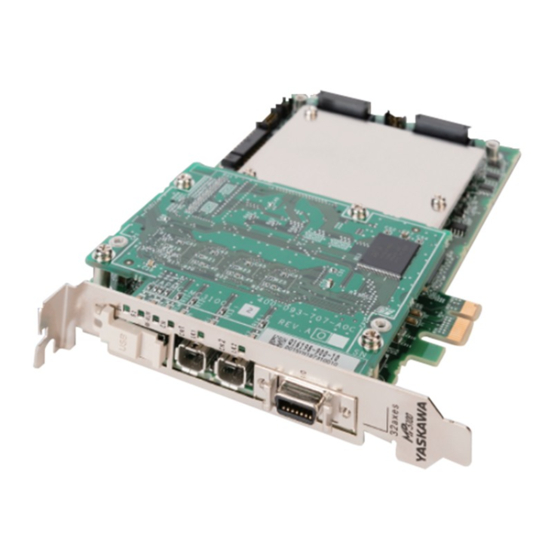

MP3000
マシンコントローラ
シリーズ
MP3100
取扱説明書
形式：
JAPMC-MC3100--E
製品を安全にお使いいただくために，本書を必ずお読みください。
また，本書をお手元に保管していただくとともに，最終的に本製品をご使用になる
ユーザー様のお手元に確実に届けられるよう，お取り計らい願います。
Machine Controller MP3000 Series
MP3100
Instructions
Model: JAPMC-MC3100--E
To properly use the product, read this manual thoroughly and retain
for easy reference, inspection, and maintenance. Ensure the end user
receives this manual.
Contrôleur de Machine Série MP3000
MP3100
Instructions
Modèle: JAPMC-MC3100--E
Pour utiliser correctement le produit, lisez attentivement ce manuel.
Conservez-le comme références et pour les cas d'inspections et de
maintenance. Assurez-vous que l'utilisateur final reçoive ce manuel.
MANUAL NO. TOMP C880725 25A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP3100 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for YASKAWA MP3100 Series

Summary of Contents for YASKAWA MP3100 Series

  • Page 1 MP3000 マシンコントローラ  シリーズ MP3100 取扱説明書 形式： JAPMC-MC3100--E 製品を安全にお使いいただくために，本書を必ずお読みください。 また，本書をお手元に保管していただくとともに，最終的に本製品をご使用になる ユーザー様のお手元に確実に届けられるよう，お取り計らい願います。 Machine Controller MP3000 Series MP3100 Instructions Model: JAPMC-MC3100--E To properly use the product, read this manual thoroughly and retain for easy reference, inspection, and maintenance. Ensure the end user receives this manual. Contrôleur de Machine Série MP3000 MP3100 Instructions...
  • Page 2 Yaskawa. No patent liability is assumed with respect to the use of the information contained herein. Moreover, because Yaskawa is constantly striving to improve its high-quality products, the information contained in this manual is subject to change without notice.

  • Page 3: Safety Precautions

    Safety Precautions  Safety Information To prevent personal injury and equipment damage in advance, the following sig- nal words are used to indicate safety precautions in this document. The signal words are used to classify the hazards and the degree of damage or injury that may occur if a product is used incorrectly.
  • Page 4  Safety Precautions That Must Always Be Observed  General Precautions 　 DANGER • Read and understand this manual to ensure the safe usage of the product. • Keep this manual in a safe, convenient place so that it can be referred to whenever necessary.
  • Page 5 　 NOTICE • Do not attempt to use a product that is damaged or that has missing parts. • Install external emergency stop circuits that shut OFF the power sup- ply and stop operation immediately when an error occurs. • Do not touch the product with wet hands. There is a risk of product failure.
  • Page 6  Transportation Precautions 　 CAUTION • Hold onto the main body of the product when transporting it. Holding the cables or connectors may damage them or result in injury. • When you handle the product, be careful of sharp parts, such as the corners.
  • Page 7  Installation Precautions 　 CAUTION • Install the product in the specified orientation. There is a risk of fire or failure. • Do not step on or place a heavy object on the product. There is a risk of failure, damage, or injury. •...
  • Page 8 　 NOTICE • Do not install or store the product in any of the following locations. • Locations that are subject to direct sunlight • Locations that are subject to ambient temperatures that exceed prod- uct specifications • Locations that are subject to relative humidities that exceed product specifications •...
  • Page 9  Wiring Precautions 　 DANGER • Do not change any wiring while power is being supplied. There is a risk of electric shock or injury. 　 WARNING • Wiring and inspections must be performed only by qualified engineers. There is a risk of electric shock or product failure. 　...
  • Page 10 　 NOTICE • Whenever possible, use the Cables specified by Yaskawa. If you use any other cables, confirm the rated current and application environment of your model and use the wiring materials specified by Yaskawa or equivalent materials.
  • Page 11  Operation Precautions 　 WARNING • Do not radically change the settings of the parameters. There is a risk of unstable operation, machine damage, or injury. • For trial operation, securely mount the Servomotor and disconnect it from the machine. There is a risk of injury.
  • Page 12  Maintenance and Inspection Precautions 　 DANGER • Do not change any wiring while power is being supplied. There is a risk of electric shock or injury. 　 WARNING • Wiring and inspections must be performed only by qualified engineers. There is a risk of electric shock or product failure.
  • Page 13 We will update the document number of the manual and issue revisions when changes are made. • Any and all quality guarantees provided by Yaskawa are null and void if the customer modifies the product in any way. Yaskawa disavows any responsibility for damages or losses that are caused by modified prod- ucts.

  • Page 14: Warranty

     Limitations of Liability • Yaskawa shall in no event be responsible for any damage or loss of opportu- nity to the customer that arises due to failure of the delivered product. • Yaskawa shall not be responsible for any programs (including parameter set- tings) or the results of program execution of the programs provided by the user or by a third party for use with programmable Yaskawa products.
  • Page 15 Yaskawa product is used in combination with any other products. • The customer must confirm that the Yaskawa product is suitable for the sys- tems, machines, and equipment used by the customer. • Consult with Yaskawa to determine whether use in the following applications is acceptable.

  • Page 16: Table Of Contents

    Contents Safety Precautions....... .1 Warranty ........12 Confirmations Upon Delivery .

  • Page 17: Confirmations Upon Delivery

    Is the product damaged in any product for any damage that might way? have occurred during shipment. If you find any problems with the above items, contact the place of pur- chase or your Yaskawa representative immediately. 1.1 Accessories Name Model Number Remarks...

  • Page 18: Installation And Wiring

    2 Installation and Wiring Installation and Wiring Refer to the following manual for details on installing and wiring the prod- uct. Machine Controller MP3000 Series MP3100 Product Manual (Manual No.: SIEP C880725 24) Inspections Perform inspections according to the information that is provided in this section.

  • Page 19: Periodic Inspections

    At least 1 time looseness in terminal Tighten the Loose screws a year screws or connector screws. lock screws. There must be no Abnormalities in Contact your discoloration due to the PCB compo- Yaskawa repre- heat, damage, or nents sentative. disconnections. E-17...

  • Page 20: Emc Standard Compliance

    4 EMC Standard Compliance EMC Standard Compliance The product complies with the following EMC standards: EN 55011 group 1 class A, EN 61000-6-2, and EN 61000-6-4. However, the product is an electric device that is used as part of a machine or manufacturing equip- ment.

  • Page 21: Revision History

    Revision History The revision dates and numbers of the revised manuals are given on the bot- tom of the back cover. MANUAL NO. TOMP C880725 25A <1>-1 WEB revision number Revision number Published in Japan January 2017 Date of publication Date of Rev.
  • Page 22 Phone 81-4-2962-5151 Fax 81-4-2962-6138 http://www.yaskawa.co.jp YASKAWA AMERICA, INC. 2121, Norman Drive South, Waukegan, IL 60085, U.S.A. Phone 1-800-YASKAWA (927-5292) or 1-847-887-7000 Fax 1-847-887-7310 http://www.yaskawa.com YASKAWA ELÉTRICO DO BRASIL LTDA. 777, Avenida Piraporinha, Diadema, São Paulo, 09950-000, Brasil Phone 55-11-3585-1100 Fax 55-11-3585-1187 http://www.yaskawa.com.br...
  • Page 23 有有害物质的信息 控制器中含 コントローラの有害物質含有情報 Information on hazardous substances in controllers 本资料根据中国 《电器电子产品有害物质限制使用管理办法》制定。 本資料は , 中国「電器電子製品有害物質使用制限管理弁法」に基づいて 記載しています。 This is based on the “Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products.” 产品中有害物质的名称及含量 製品中の有害物質名称及び含有量 Contents of hazardous substances in products 有害物质...
  • Page 24  ： 該当部品全ての均質材料による有害物質の含有量が GB/T 26572 に定め る限度量の要求以下であることを示します。 × ： 該当部品中の少なくとも1種類の均質材料における当該有害物質の含有 量が，GB/T 26572 に定める限度量を上回っていることを示します。  ： Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below or equal to the limit requirement of GB/T 26572.
  • Page 25 한국 전파법에 관한 주의사항 韓国電波法に関連する注意事項 Precautions for Korean Radio Waves Act 针对韩国电波法的注意 事项 Précautions pour la Loi coréenne relative aux ondes radio 사용자 안내문 기종별 사용자 안내문 A 급 기기 이 기기는 업무용 (A 급 ) 전자파 적합 기기로서 판매자 ( 업무용...
