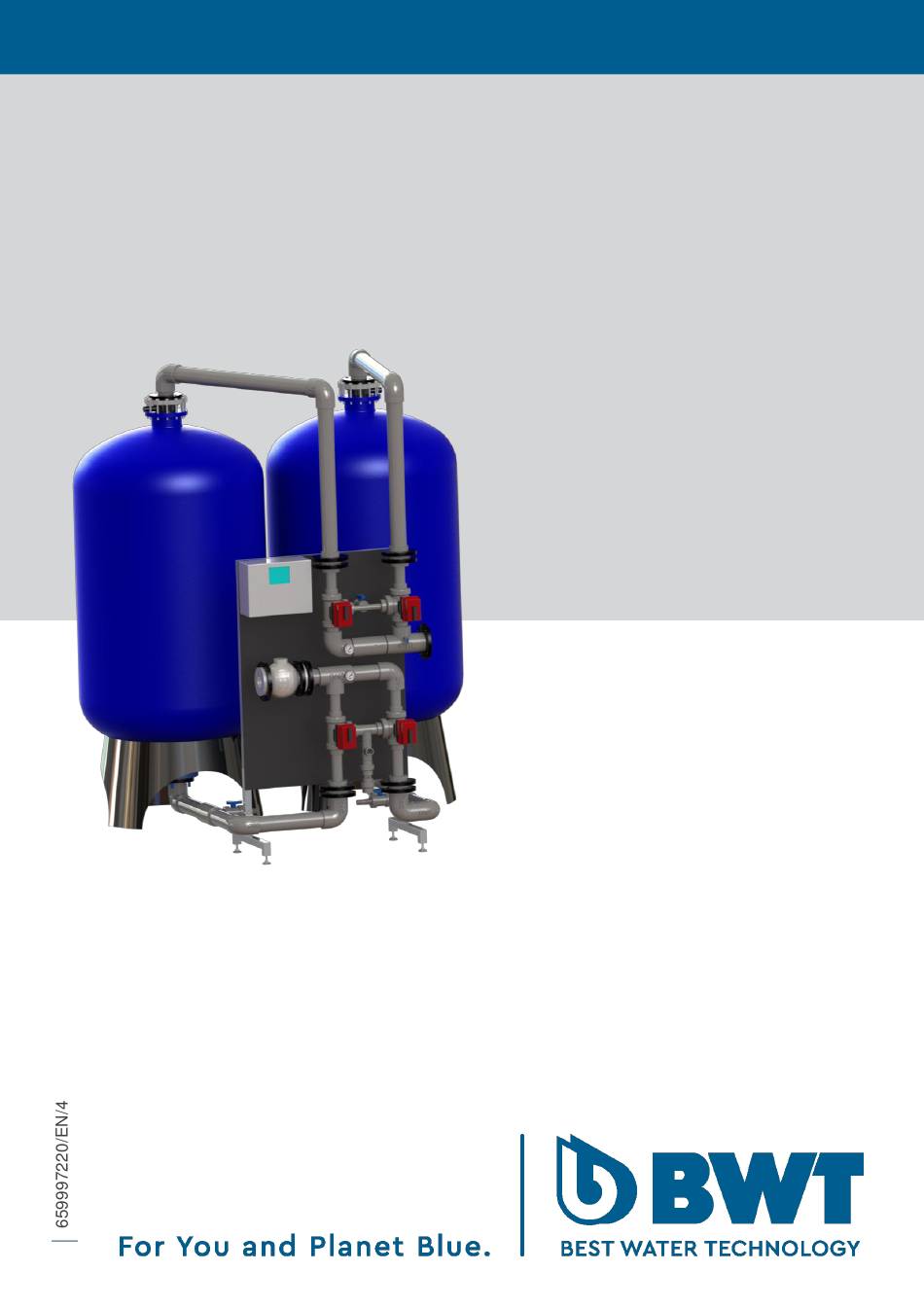

- Page 1 Installation and operation manual Rondomat HVD 400-1550 Softening Unit...
-
Page 2: Table Of Contents
Table of contents 1 General ....................4 The Unit - Rondomat HVD ................... 4 2 Function ....................5 Ion exchange ......................5 Regeneration ......................5 3 Installation ....................5 4 Commissioning ..................5 Handling and filling the ion exchange resin ..............6 Filing of salt ...................... - Page 3 Information in Reg. Settings ................12 5.7.1 Functions in Reg. Settings ................. 12 5.7.2 Alarm ........................12 Information in Alarm ..................12 5.8.1 Alarm Log ....................... 13 Information in Alarm Log ................... 13 5.9.1 Functions in Alarm Log..................13 5.9.2 5.10 Counters ........................
-
Page 4: General

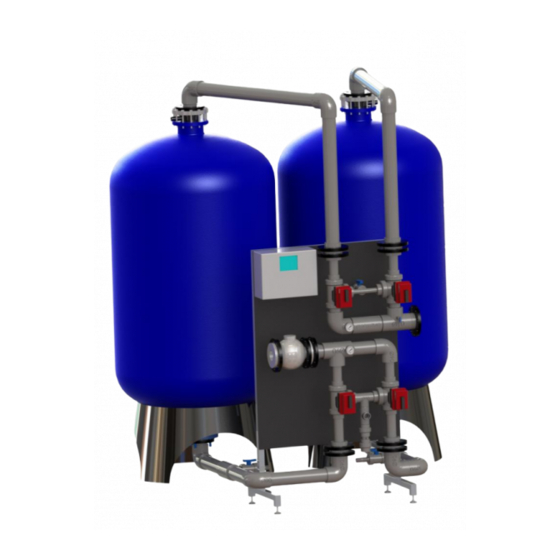

Appropriate electrical equipment is connected General to 220 V, 10A. BWT's Rondomat HVD – Series of volume controlled softening units are designed for On the side is there a salt container supplied industry, municipal waterworks, and with a lid. It is made of polyethylene residential complexes and delivers efficient, reliable and economical softening. -
Page 5: Function
Calcium and magnesium are consequently Function released and rinsed to drain while the ion exchange mass is again saturated with sodium. Once the salt solution is introduced, the regeneration continues with the first rinse, OPERATION which displaces the salt solution through the ion exchanger. -
Page 6: Handling And Filling The Ion Exchange Resin
The amount of ion exchange resin should be correct. divide into two equally. After 1 – 2 months of operation BWT suggest Remove the upper connection of the filter that the amount of resin is controlled. column via coupling and screw the remaining Possibly fill extra if needed. - Page 7 c. Fill the salt container with water, by opening the valve for incoming water. Let the valve stay open for operation. Keep undissolved salt out of the tube Figure 2 - Salt Container...
-
Page 8: Control Panel
Control panel Menu 5.1.1 Information in menu All screen images are designed with a header with logo, time, menu and alarm keys. If an alarm occurs, the “alarm” key will flash in a slow frequency. Alarm Press In the Alarm screen, all active alarms will be displayed. -
Page 9: Operation
Alarm log Changes to alarm history where all alarm Press occurrences are stamped with time and date. Counter Press In the counter screen image is shown operating hours, valve operations and capacities. Language Press In the Language screen image, you can choose various languages directly on the screens. -
Page 10: Mimic
Mimic 5.3.1 Information in Mimic Conductivity in waste water under regeneration Capacity left in each column before regeneration Operation status on valves and pumps Pumps: (Black = OFF, White = ON) Valves: (Black = closed, White = open) Auto/Man 5.4.1 Information in Auto/Manuel This function visualize the manual interference (AUT-MAN) 5.4.2 Functions in Auto/Manuel... -
Page 11: Plant Type
Plant type 5.5.1 Information in plant type The K-factor of the water meter The selected plant type Selected options: Reservoir Saturator Testomat 5.5.2 Functions in Plant type Select the filter size that matches the unit. Set the k-factor for the water meter (number of impulses pr.m³) Select options. -
Page 12: Reg. Settings
5.7 Reg. Settings 5.7.1 Information in Reg. Settings The capacity between each regeneration is shown in ”capacity/ Filter”. 5.7.2 Functions in Reg. Settings Change the times in the regeneration sequence. Define the hardness of the raw water It´s possible change between °dH, °fH and ppm CaCO3. -
Page 13: Alarm Log
Alarm Log 5.9.1 Information in Alarm Log In this picture, the last 128 alarms are displayed with the date and time of the alarm. When more than 128 alarms have occurred, the oldest alarms will be deleted. 5.9.2 Functions in Alarm Log By pressing the ”START”... -
Page 14: Language
5.11 Language 5.11.1 Information in Language Displays all the available language options. 5.11.2 Functions in Language To select a language, Press the preferred language 5.12 Time and date 5.12.1 Information in time/date Date and time. 5.12.2 Functions in time/date Date and time can be changed by pressing the individual buttons, and set the value and confirm with”ENT”. -
Page 15: Password
If the correct password is not entered within 10 seconds, the image will automatically return to Menu. Password can be given out by calling BWT Denmark Tlf. +45 43 600 500 Maintenance Salt container We recommend to use salt tablets or granulated vacuum salt if using a Saturator. -
Page 16: Periodic Inspections
/ maintenance is carried exchanger. out with time intervals as prescribed and BWT Denmark A/S offers various types of that the results are noted in the operating service agreements to ensure a smooth record. -
Page 17: Technical Data
Technical data Rondomat HVD Unit 1200 1550 Max. flow velocity* m³/t 10/15 18/21 25/30 32/39 41/50 Pressure drop at max. flow 1,1 / 1,5 velocity Min. flow velocity * m³/t 0,08 0,35 0,35 Capacity at 1°dH m³ 1085 1680 2520 3290 4340 Capacity at 5°dH... -
Page 18: Spare Part Drawing
Spare part drawing... -
Page 19: Spare Parts List
10 Spare parts list Recommended Position Spare part Recommended BWT Rondomat HVD replacement spare parts frequency Level switch 5 m. cable. 110851050 2-4 years Weight for level switch. 110860000 Non-return valve 25 mm PVC. 200315025 Ball valve 25 mm. PVC. -
Page 20: I Diagram
11 P & I Diagram... -
Page 21: Declaration Of Conformity
EC Declaration of Conformity Machinery Directive 2006/42/EC, Annex II, A Low Voltage Directive EMC-Directive BWT Denmark A/S Geminivej 24 - DK-2670 Greve tel.: +45 43 600 500 - fax: +45 43 600 900 BWT@BWT.dk - www.BWT.dk Here by declares that: HVD 400, 600, 900,1200 &... -
Page 22: Note
13 Note _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________... - Page 23 _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________...
