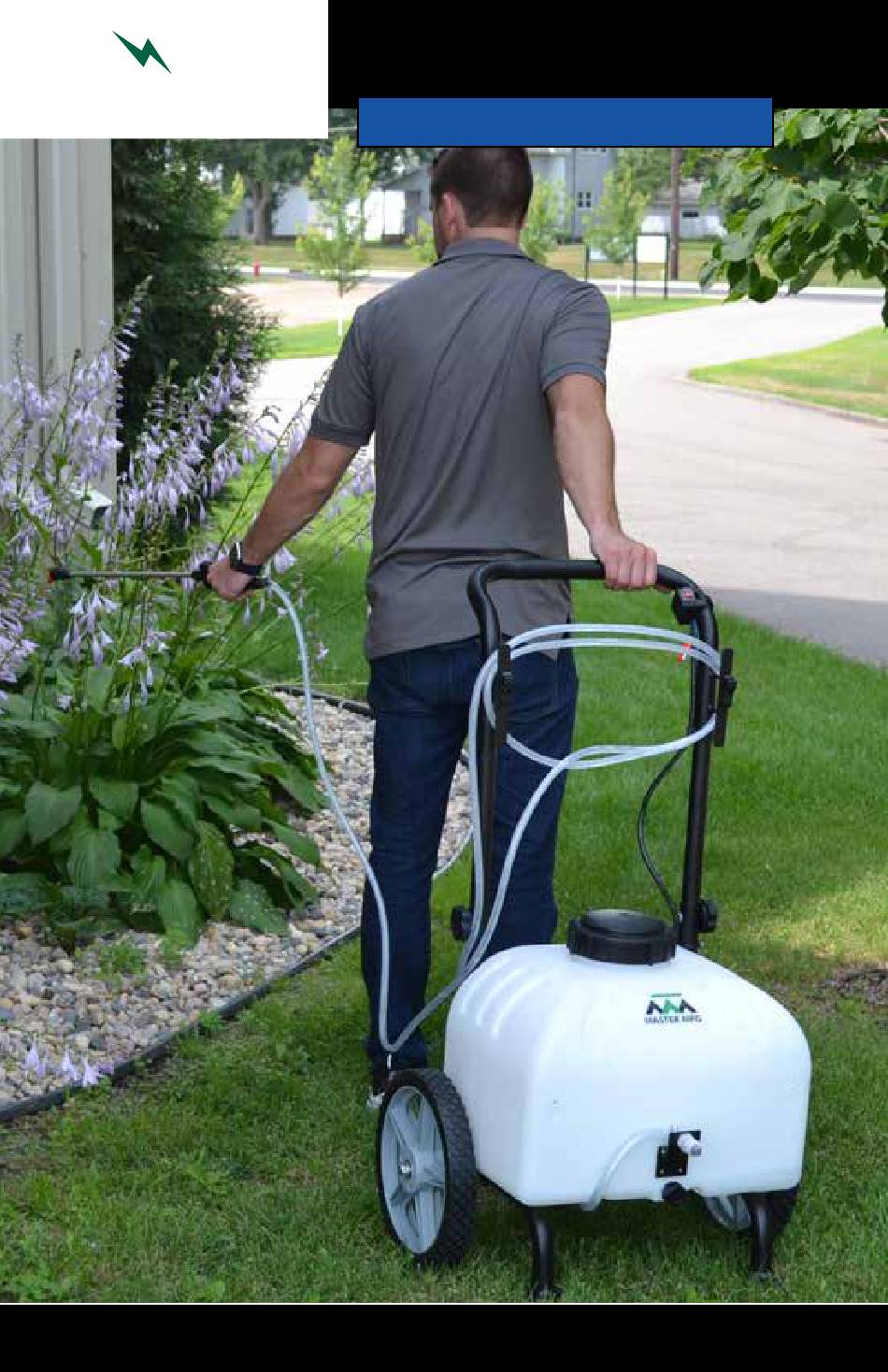

- Page 1 INSTRUCTIONS FOR ASSEMBLY, 800.825.5397 OPERATION, SERVICING & STORAGE A BRAND OF MASTER MANUFACTURING RECHARGEABLE MASTER GARDENER 800.825.5397 www.MASTER-MFG.com REVMAS-M...
-
Page 2: Table Of Contents

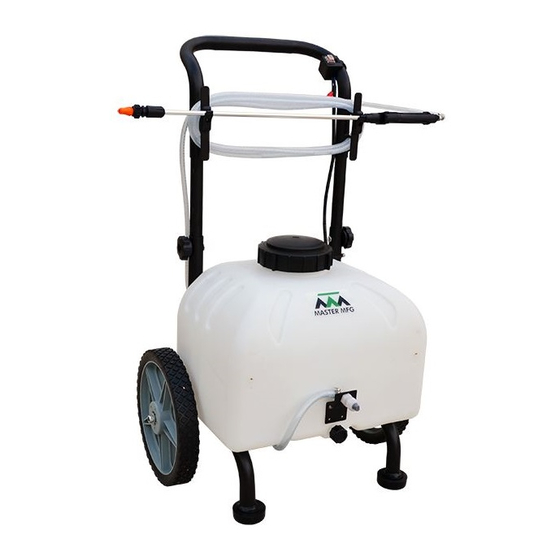

TABLE OF CONTENTS SPRAYER COMPONENTS ..........4 SPRAYER ASSEMBLY . - Page 3 800.825.5397 INTRODUCTION Congratulations on the purchase of your Revolt Master Gardener. This sprayer has been manufactured to provide years of dependable and efficient use in spraying a wide range agricultural pesticides, herbicides and other non-flammable liquids. IMPORTANT NOTE: THE PURPOSE OF THIS MANUAL IS TO ASSIST YOU IN THE ASSEMBLY, OPERATION, SERVICING AND STORAGE OF YOUR SPRAYER.
-
Page 4: Sprayer Assembly
TOOLS REQUIRED PHILLIPS SCREWDRIVER INCLUDED HARDWARE Sprayer Base Assembly (1) Spray Gun Lance (1) Handle Adjustment Sprayer Handle (1) Knob & Bolt (2) 33-100157... - Page 5 800.825.5397 IMPORTANT NOTE: THE REVOLT BATTERY PACK IS NOT CHARGED PRIOR TO SHIPPING. IT WILL REQUIRE APPROXIMATELY FOUR HOURS TO FULLY CHARGE WITH THE INCLUDED REVOLT BATTERY CHARGER. Trailer Tongue (1) Hitch Pin (1) Cotter Pin (1) 33-100156 Revolt Battery Pack (1)
- Page 6 Pack is not charged out of the carton and requires four hours to fully charge. None Charging Revolt Battery Pack Connect Battery Charger to the open hole on top of Revolt Battery Pack. Plug the Battery Charger into an appropriate outlet. PARTS None Installs Sprayer Handle on Sprayer Insert the Sprayer Handle into the Sprayer Base Assembly.
- Page 7 800.825.5397 PARTS Secures Sprayer Handle to Sprayer Secure Sprayer Handle to the Sprayer with Handle Adjustment Knobs & Bolts. Tighten securely. Use Phillips Screwdriver to tighten screw that is on the Wire Clamp to secure wiring to frame. PARTS None Connects Battery Dock to Power Switch Locate the Wiring Harness Connectors at base of the Sprayer Handle and exiting the back panel of the Sprayer.
- Page 8 Battery Pack. None Installs Revolt Battery Pack in Dock Insert the Revolt Battery Pack into the open dock that is situated at the bottom of the back panel of Sprayer. A click will be heard when properly attached.
- Page 9 800.825.5397 PARTS NOTE: The Power Switch will light up on the ON position. If it doesn’t, the Battery Pack will need to be fully charged. None Turns On Power to Sprayer When ready for spraying, flip the Power Switch on that is located on the Sprayer Handle.
- Page 10 PARTS None Allows for Broadcast Spraying To convert over to broadcast spraying, turn the Back Panel Valve Switch from Off to On.
- Page 11 • Before Using The Battery Pack & Charger: Read this operator’s manual and all labels on the battery pack. • Caution: To reduce risk of injury, ONLY CHARGE REVOLT BATTERY PACK WITH REVOLT SERIES CHARGERS. Other types of batteries may burst causing personal injury and damage. Do not wire a battery pack to a power supply plug or the DC outlet of a vehicle.
-
Page 12: Important Safety
OPERATION - IMPORTANT SAFETY INFORMATION Now that you have assembled your sprayer, there is some important safety and health information you need to know with regard to handling and spraying chemicals. TAKE NOTE! THIS SAFETY ALERT SYMBOL FOUND THROUGHOUT THIS SECTION IS USED TO CALL YOUR ATTENTION TO INSTRUCTIONS INVOLVING YOUR PERSONAL SAFETY AND THE SAFETY OF OTHERS. -
Page 13: Before Spraying
800.825.5397 BEFORE SPRAYING • Sprayer Prep: ALWAYS inspect and prepare the sprayer before use according to the directions provided in this manual. • Keep Sprayer Off: Do not turn power on to the sprayer until ready to spray in order to avoid unintentional spray release. -
Page 14: After Spraying
AFTER SPRAYING • Clean Sprayer: ALWAYS clean the sprayer immediately after use according to the directions provided in this manual. • Decontaminate: ALWAYS decontaminate yourself immediately after you are finished with spraying and handling chemicals. Wash all exposed areas of the body with soap and water. -
Page 15: Preparing Sprayer
800.825.5397 PREPARING SPRAYER • Review Safety Information: Review safety information in this manual and manufacturer chemical label before use. • Sprayer Attachment: Ensure the sprayer is securely attached to a vehicle if using trailer hitch for spraying. • Empty Tank: Ensure the sprayer has been thoroughly flushed and drained of all residual chemical prior to uses. -
Page 16: Spot Spraying
USING SPRAYER (CONTINUED) • Broadcast Valve Switch: Close broadcast valve switch to prevent accidental spray release. • Turn On Power: Flip on power switch that is located on the sprayer handle. SPOT SPRAYING • Spot Spraying: To spot spray, pull the gun trigger. Make sure nozzle of gun is pointed towards vegetation in need of spraying. -
Page 17: Operation - Cleaning
800.825.5397 OPERATION - CLEANING, DECONTAMINATING & STORAGE When done using the sprayer, it is always important to clean the sprayer and decontaminate yourself. Do not store the sprayer with chemicals in the tank, as it is unsafe and could also result in damage. WARNING Clean-up and decontamination procedures must be followed after each use. - Page 18 SPRAYER STORAGE Prepare the sprayer for end-of-season storage by running RV anti-freeze through the system. This will keep internal parts lubricated, protect against corrosion, and keep the unit from freezing. IMPORTANT NOTE: ALLOWING YOUR SPRAYER TO FREEZE, WITHOUT TAKING PROPER WINTERIZATION STEPS, VOIDS YOUR WARRANTY. WARNING The sprayer will be damaged if it freezes.
-
Page 19: Troubleshooting
800.825.5397 TROUBLESHOOTING Here you will find solutions for some of the most common issues users have with sprayers. PROBLEM CAUSE SOLUTION Pump Will Not Prime Out of Product Refill Supply Container Pump Will Not Turn On Battery Not Connected Check Battery Connection Low Voltage Check Voltage Fuse Blown... - Page 20 BREAKDOWN - TANK ASSEMBLY PART # DESCRIPTION 8027 Nozzle Nut - 11/16" D77012 O-Ring - NBR DF3.0 Gray Deflector Nozzle NS-50 Nozzle Strainer Nozzle Body Nut - 11/16" 31-100249 Nozzle Bracket E3412 Adapter - 3/4" MGHT x 1/2" NPT 33-100137 Groove Screw - 1/2"...
- Page 21 800.825.5397 BREAKDOWN - POWER ASSEMBLY PART # DESCRIPTION Revolt Battery System Wiring Metal Clip Self-Tapping Screws Base Plate Switch Bracket Type Switch - LED Button Card Holder Teeth Tapping Screw Head Screws Back Panel...
- Page 22 BREAKDOWN - FRAME ASSEMBLY PART # DESCRIPTION 33-100158 Frame Handle (Only Available As Entire Frame) 33-100157 Handle Adjustment Knobs & Bolts 33-100155 Axel Nut & Washer TWA12x1.75-1/2 12" Wheels 33-100158 Lower Frame (Only Available As Entire Frame) 33-100160 Bolts - 1.5" 33-100156 Hitch Pin 33-100158...
- Page 23 800.825.5397 NOTES...
- Page 24 PLEASE FOLLOW ALL WARNINGS IN THIS MANUAL, FAILURE TO DO SO COULD RESULT IN PROPERTY DAMAGE & INJURY. 800.825.5397 800.825.5397 REVMAS-M...
