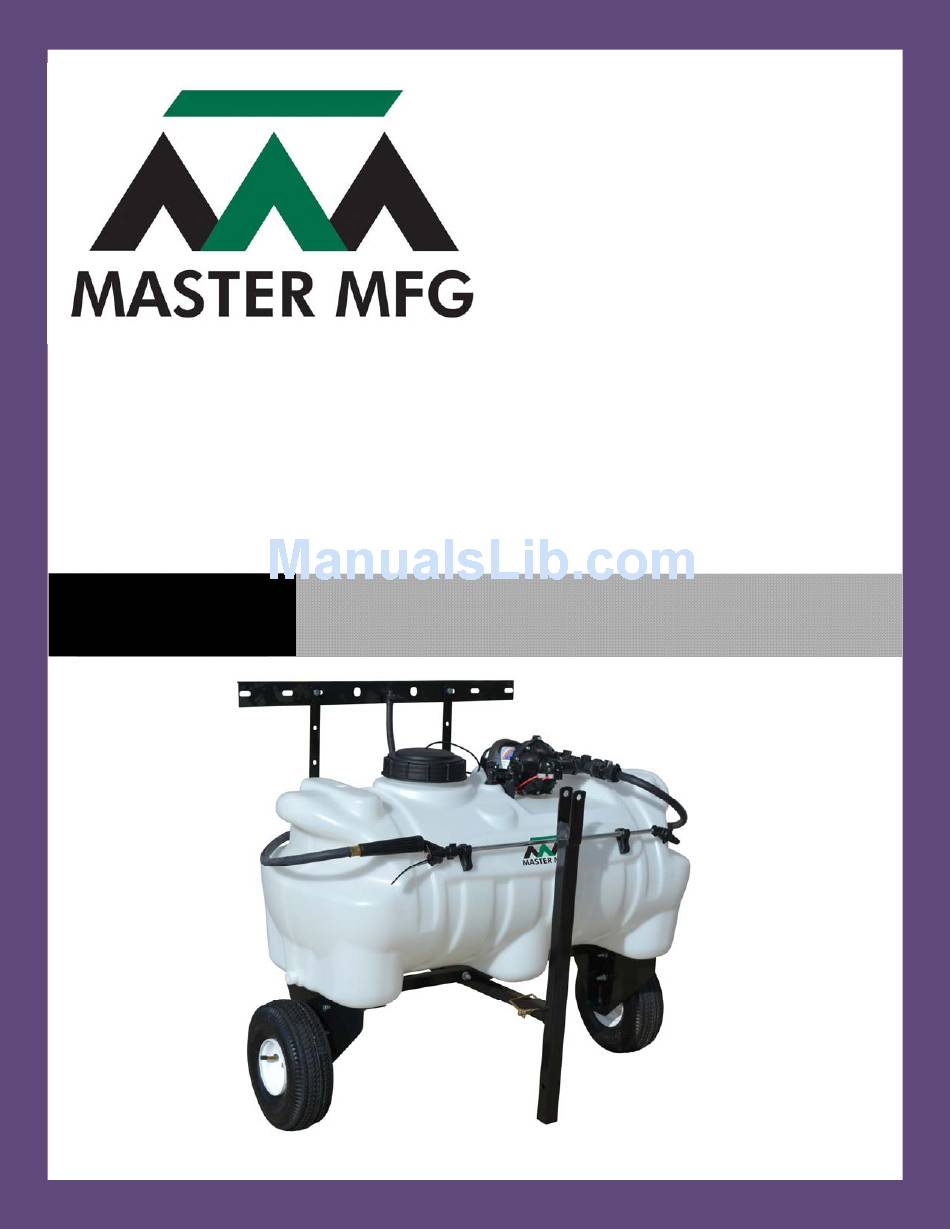

- Page 1 180 N Lake Ave Paynesville, MN 56362 Phone: 1-800-864-1649 www.master-mfg.com 15/25 ALLON EW IRECTION ASTER ANUFACTURING RAILER PRAYER SNP‐81‐025A‐MM Draft Oct. 2013...
- Page 2 864-1649 for any warranty work or replacement parts. INTRODUCTION Your Master Manufacturing New Direction Lawn Sprayer has been manufactured to provide years of dependable and The purpose of this manual is to efficient use. Proper operation and maintenance will ensure long satisfactory service.
- Page 3 5.) Locate the left axel assembly item 4 (PN 32-100075) and fasten to the left cross bracket Item 2 with two bolts item 13 (PN 33-100116) and nuts item 14 (PN 33-100113). Ensure the correct holes are used in the left axel assembly. Refer to Figure 1 or figure 2 for reference. Tighten securely. 6.) Place wheel item 8 (PN TWA410/350-4) over axel.
- Page 4 Repeat for Left Side 7.) Attach tongue item 3 (PN 32-100076) to center assembly with lock pin item 9 (PN 905PA). 8.) Attach stabilizer item 7 (PN 31-100283), boom mount item 6 (PN 31-100279) to center section using bolts item 11 (PN 33-100123) and nuts item 14 (PN 33-100113). Tighten securely.
- Page 5 Sprayer Tank mounting 1.) Position sprayer tank over holes in trailer frame. Using the four bolts item 17 and washers item 18 (PN 33-100114 and PN 33-100115), thread all four bolts by hand into the tank. Position tank squarely on frame and tighten bolts securely. Do not over tighten. Doing so may strip threaded insert in tank.
- Page 6 Adjust bolted holes in order to acquire desired boom height 2.) Attach the spray boom (PN 34-140052) to the upright spray boom brackets using two 5/16-18 x 1 bolts (PN 33-100116) and 5/16 nuts (PN 33-100113). 3.) Thread on the boom hose to the manifold valve and tighten securely. 4.) Optimum boom height is 14 to 15 inches above area to be sprayed.
-
Page 7: Cleaning And Storage
Operation Using the boom nozzles Four things must be considered before spraying with the boom. 1. How much chemical must be mixed in the tank? 2. Rate of spray (gallons per acre to be sprayed.) 3. What pressure (P.S.I) will be used. 4. - Page 8 The following steps should be followed for the maintenance and storage of your sprayer. 1. Wash and flush out sprayer after completion of each phase of your program. Flush out sprayer when changing chemicals if there is a possibility of the chemicals being incompatible. Use of a detergent is advisable if the chemical manufacturer does not make specific cleaning recommendations.
- Page 10 Gallons Per Acre Nozzle part # Flow 2 mph 3 mph 4 mph 5 mph 6 mph 7 mph BN2BP125FWX (2 GPM) BN2BP152FWX 22.5 15.5 (3 GPM) 12.5 32.5 10.5...
