Installation Instructions

Mounting the Hood

CAUTION
At least two installers are required due to the weight
and size of the hood.
1. Select preferred duct location (vertical or
horizontal) if ducting out of kitchen. Refer to page
13 for details.
2. Begin installation by removing the entire PAS panel
by (4) screws shown in FIG. B. Remove the mesh
filters and side panels (for 36" model) (FIG. C).
3. Reinforce cabinet with 1" x 2" wood strips if
additional strengthening is required or if cabinets
are framed.
4. Temporarily position the range hood in the
desired mounting location. Measure and mark the
mounting holes, duct and electrical locations with a
pencil.
5. Drill and cut out the required openings for duct and
electrical access; make sure the duct opening is
large enough to apply duct tape.
6. Fasten hood onto cabinet with (4) M4 wood screws
provided.
7. Install electrical and duct work and seal with duct
tape.
8. Reinstall mesh filters and side panels. Reinstall
entire PAS panel.
9. Power up hood and check for leaks around duct
tape.
10. If recirculating the hood, refer to page 15 for more
details.
14 Pyramid Use, Care, and Installation Guide
C O R E
P Y R A M I D
U N D E R - C A B I N E T

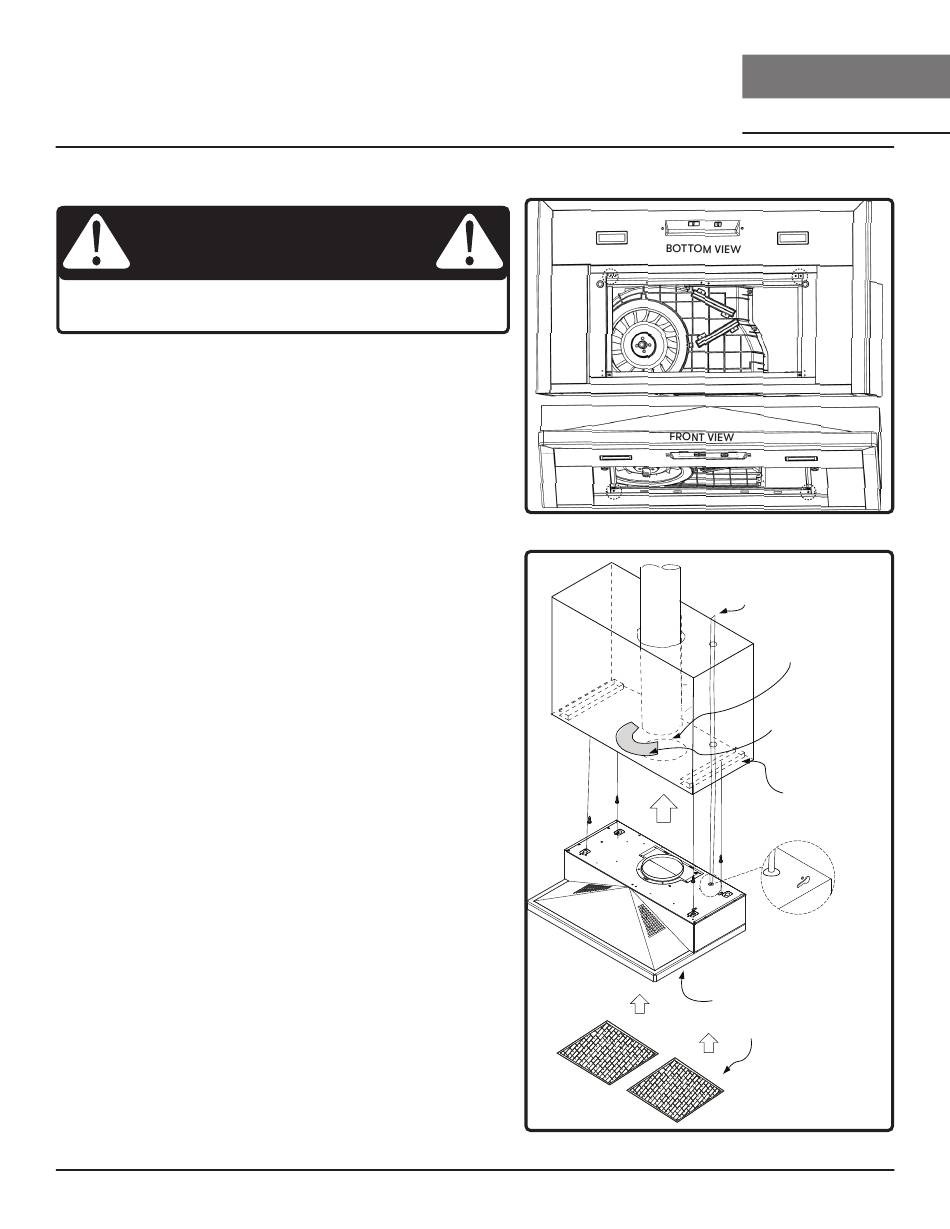

FIG. B
7. Electrical
5. Duct opening and
cutout
7. Aluminum duct tape
3. Add 1" x 2"
wood strips
2. PAS Panel and
mesh filters
FIG. C
