Installation

If replacing an older faucet
ensure water supply is turned
OFF before removing, then
turn faucet control valve ON to
relieve water pressure.
DO NOT use pipe dope
or thread sealant on drain
assembly, or any plastic
threaded components.

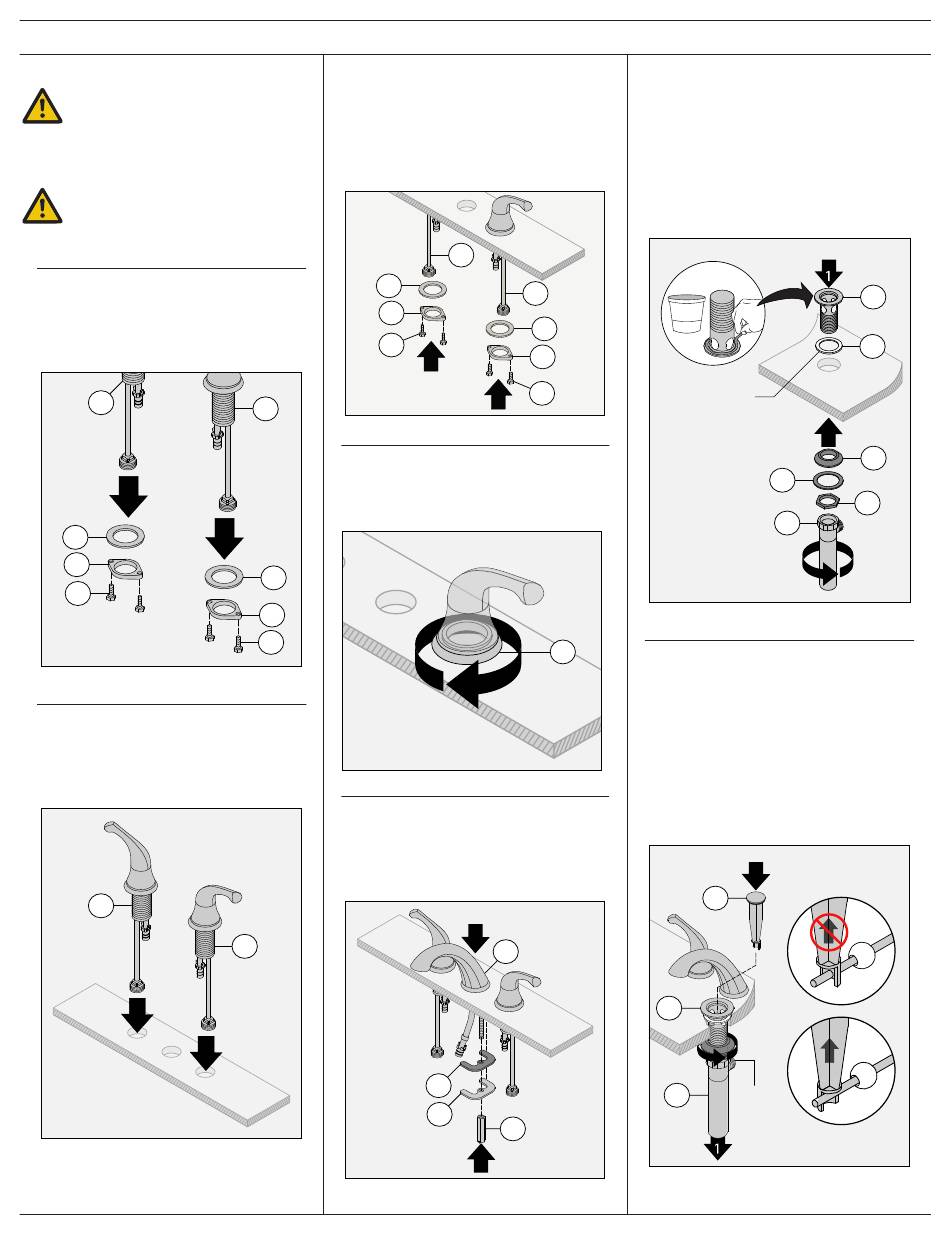

1) Remove washer (P), nut (Q) and
screws (R) from valve body (M).
M
P
Q
R
2) Insert valve bodies (M) through
sink holes.
M
3) Install washer (P), nut (Q) and
screws (R) to valve body (M) to
secure assembly under deck
surface.
P
Q
R
M
4) Turn escutcheon (D) clockwise to
seal to deck surface.
P
Q
R
5) Install gasket (L), washer (N) and
nut (O) to spout (F) to secure
assembly under deck surface.
M
M
M
P
Q
R
D
1
F
L
N
O
2
3
6) Seat flange (S4) into sink (S5 gas-
ket optional). Install gasket (S6),
washer (S9) and nut (S10) onto
flange (S4) from below sink, but
do not secure nut. Screw on tail
piece (S11) and hand tighten.
PLUMBER
PUTTY
OPTIONAL
S9
S11
3
7) Turn tail piece (S11) and flange
(S4) so pivot is facing toward
faucet. Pull assembly down into
drain hole. Secure hardware to
assembly from below sink. Install
stopper (S1) in the removable or
non-removable position.
3
S1
S4
2
S11 PIVOT
S4
S5
2
S6
S10
