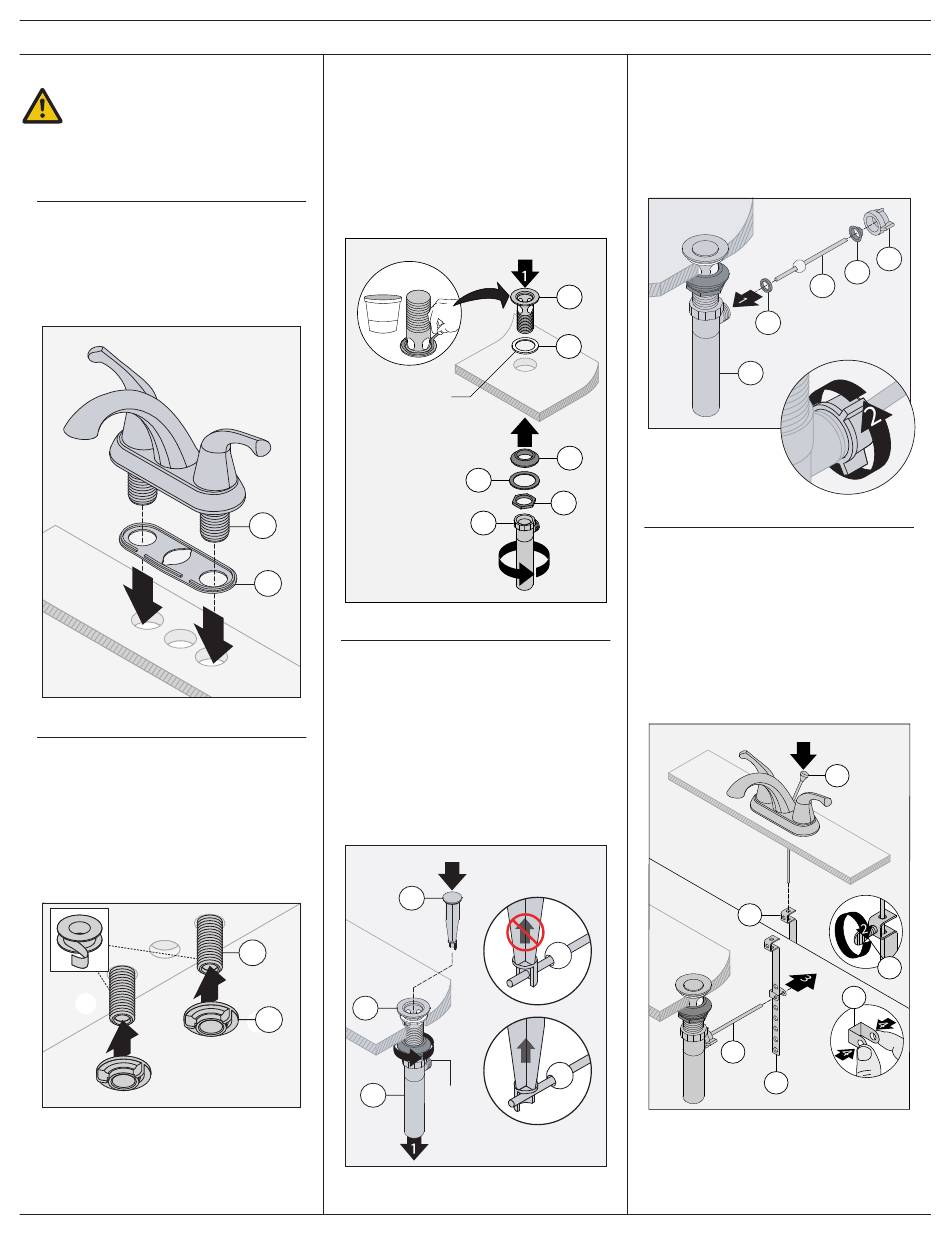

Installation

If replacing an older faucet
ensure water supply is turned
OFF before removing, then
turn faucet control valve ON to
relieve water pressure.
1) Insert faucet body (H) through
mounting gasket (I) and sink
holes.
2) Install mounting nuts (J) onto 1/2"
IPS inlet connections on faucet
body (H). Using a wrench, finish
with one-half turn. DO NOT over-
tighten.
1
1 1 1
3) Seat flange (K2) into sink (K3 gas-
ket optional). Install gasket (K4),
washer (K5) and nut (K6) onto
flange (K2) from below sink, but
do not secure nut. Screw on tail
piece (K7) and hand tighten.
PLUMBER
PUTTY
OPTIONAL
H
I
4) Turn tail piece (K7) and flange
(K2) so pivot is facing toward
faucet. Pull assembly down into
drain hole. Secure hardware from
below sink. Install stopper (K1) in
the removable or non-removable
position.
K1
H
K2
J
2
K7
K2
K3
2
K4
K5
K6
K7
3
3
PIVOT
3
5) Attach inner washer (K8), pivot rod
(K9) and outer washer (K10) to tail-
piece (K7). Hand tighten nut (K11)
to secure pivot rod (K9).
K9
K8
K7
6) Connect lift rod (B) to clevis strap
(K13) and secure with thumb
screw (K14). Insert pivot rod
(K9) through spring clip (K12)
and clevis strap (K13). Secure
with spring clip (K12) and adjust
linkage if necessary.
1
K13
K9
K13
K11
K10
B
K14
K12
