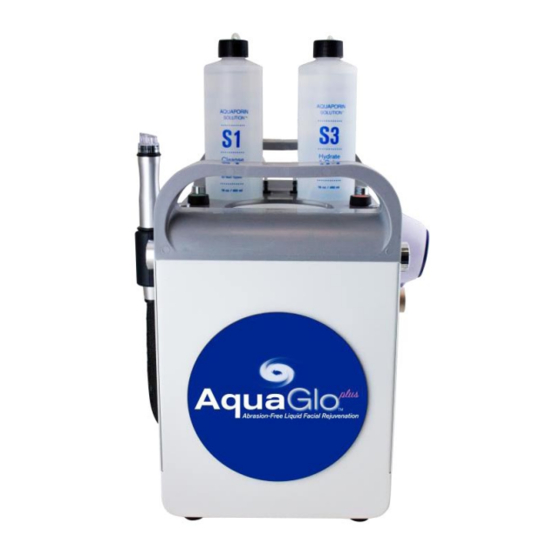

Wellness AquaGlo Plus N1581 Owner's Manual

Abrasion-free liquid facial rejuvenation

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Owner's Manual

206818 AG.10.1020.9.U

Table of Contents

Summary of Contents for Wellness AquaGlo Plus N1581

Page 1 Owner’s Manual 206818 AG.10.1020.9.U...
Page 2: Table Of Contents
TABLE OF CONTENTS Page Name of Product Summary Parts Specification Components Characteristics Functions and Purpose of Use Operation and Use of System Maintenance Troubleshooting Guide Express Glow Facial OxyCryo Stem Cells Energy Facial Warranty...
Page 3: Name Of Product
Name(s) of Product(s) Names of Products: Electric, motorized suction systems Brand names: AquaGlo, AquaGlo Plus Summary Equipped with main unit, suction bottle, suction tubes, hand piece and power cable. User can easily adjust the levels of solution flow rate depending on the desired solution flow quantity.
Page 4: Parts
Parts Front Name Function Remarks Hand piece Suction of sebum and acne ON/OFF Switch (green) for On/Off #1 Solution 1 ON/OFF Switch (orange) for On/Off #3 Solution 3 Solution #1 Solution Bottle #1 Solution #3 Solution Bottle #3 Cryo Chill Applicator Optional...
Page 5 Back Side Panel Name Function Remark Inlet Supplies AC Power Switch ON/OFF Flow Control for solution flow rate Left side panel* Right side Pressure Control for vacuum rate panel** Ensure bottle is mounted to back Suction Bottle Filters contents such as sebum of machine using supplied bracket.
Page 6 Top View Function Remarks ON/OFF Switch (green) for Solution 1 ON/OFF Switch (orange) for Solution 3 Solution Bottle #1 Solution Bottle #3 Storage Tray Options for storage tray:...
Page 7: Specification
Proprietary Cryo Chill Applicator (Optional): Technology Spec: Thermoelectric effect (Peltier effect) controls and provides constant cold temperature as low as -5 C (23F) on a stainless steel plate handpiece reinforced with blue LEDs (415 nm). Handpiece Diameter: 58 mm (2.28 inches) Benefits: Skin tightening, soothing, diminish the appearance of pores and puffiness.
Page 8: Characteristics
Solution 1 Solution 3 CD/Owner's Manual Power cable Sphere 8 dome tip with illite and tourmaline stone are optional upon purchase. Contact your sales representative for details. *All disposable products above are supplied by distributor. Characteristics Principles of Operation Power from the main power supply activates the pressure pump and controller.
Page 9: Operation And Use Of System
- Temperature: -15~50 C - Humidity: 10~95% Purpose of use Equipped with main unit, suction bottle, suction tubes, hand piece and power cable. User can easily adjust the levels of solution flow rate (LOW (-) to HIGH (+)) depending on desired flow quantity. prevent the reverse/over flow of contents in the suction bottle, AquaGlo Plus adopts Anti-reverse flow sensor.
Page 10 Connect “OUT” shown on Connect “IN” shown on suction bottle. suction bottle. • Make sure the stainless springs are in the two large tubes.
Page 11 Make sure that only authorized, qualified persons operate the unit. • Read the owner’s manual thoroughly before use. • Check the conditions of suction bottle. • Suctioned materials in the suction bottle should be removed after • every use. Operation and Procedures to Operate 1.
Page 12 Cleaning Procedure – After EVERY Service to Avoid Clogging and Deposit of Any Kind Inside Handpiece and Hoses. Replace clear solution tip on hand set with blue cleaning tip. To perform cleaning, remove Solution #1 bottle. Fill the white/opaque cleaning solution bottle with warm distilled water. Install the hose and cap from the S1 solution bottle on the cleaning bottle and connect to the S1 port on the top of the machine.
Page 13 S3 bottle if you have another service that dye. 11. Make sure to use a new clear tip for each service (tips used more than one time can prevent good suction and dispersion of solutions). PLEASE NOTE YOUR WARRANTY WILL BE VOID IF CLEANING IS NOT PERFORMED AFTER EACH SESSION.
Page 14 Caution Do not use the unit at extreme temperatures, either cold or hot. • Use only approved solutions and cleaners for servicing unit. • Do not renovate or disassemble the unit in any way except when • instructed by Customer Service. Stop the unit immediately if there is any error in operations.
Page 15: Maintenance
Misuse of the unit can result in electric and/or mechanical errors. • Therefore thorough understanding about usage is crucial. The use of the unit is strictly limited to those who are trained and • qualified. Maintenance Please clean the unit at the end of each day. •...
Page 16 2. Ensure the two hoses going into the collection jar from the machine are not kinked or twisted. 3. Check the seal in the top of the collection jar. If it is twisted, kinked or out of place, it will affect vacuum pressure. Collection Jar Seal 4.
Page 17 *Note Version 3 AquaGlo PN 408101, 409101 7. If no vacuum problem still exists, contact Sybaritic Customer Service. Slow\No Treatment Solution 1. Ensure the light in the switch (S1 or S3) is on indicating there is power to the switch and you can hear the vacuum pump running. 2.
Page 18 Make sure hoses are not kinked or obstructed in any way. 3. Ensure you can see solution in the tubes (solution bottle to machine). 4. Turn machine off and unplug from wall power. 5. Pull the hand piece apart (see picture above) and check for an obstruction or breakage at the tip and tubing.
Page 19 *Note for Version 4 AquaGlo PN’s 408101-V4, 409101-V4 c. Follow the tubing from the valve to the solenoids, ensuring there is fluid on both sides of the solenoids. If there is fluid on one side of the solenoid but not the other. The solenoid is bad and must be replaced.
Page 20 d. Follow the tubing from the solenoids to the top of the machine ensuring there are no obstructions or kinking in the tubes. 7. If all these items are operating properly and still no solution is flowing, contact Sybaritic Customer Service. Cleaning Procedure 1.
Page 21: Express Glow Facial
Express Glow Facial Cleanse, Exfoliate and Hydrates in an instant Lunch Time Express Facial Indications: All skin types Suggested Frequency of Treatment: 1 every 10 days for 6 treatments. 1 per month for maintenance. Supplies Required for Treatment: Oxygen Ceuticals Products Required for Treatment: Small beaker or glass/plastic bowl Anti-Redness Milk Cleanser Facial Gauze Masks...
Page 22: Oxycryo Stem Cells Energy Facial
OxyCryo Stem Cells Energy Facial Cleanse, Deeply Exfoliate, Hydrates and Rejuvenates Complete Pampering Facial Indications: All skin types Suggested Frequency of Treatment: 1 every 14 days for 6 treatments. 1 per month for maintenance. Supplies Required for Treatment: Oxygen Ceuticals Products Required for Treatment: Small beaker or glass/plastic bowl Double Makeup Remover Facial Gauze Masks...
Page 23 Acid Peel: AHA 24.5% & BHA 0.5% (optional) Apply directly onto the skin a thin layer with fan brush. Client will feel “stinging”. Leave on 1-5 min depending onto client ‘sensitivity. Rinse with water and follow with Ph Balancing Toner. Massage: Apply a small amount of Active C Massage Cream and perform lymphatic drainage and pressure points on the face, neck and décolleté.
Page 24: 13. Warranty
13. Warranty This One Year Product Warranty will expire 12 months from the Original Purchase Invoice Date. NuAge Beauty (hereinafter “NB”) agrees to provide warranty service according to the terms and conditions set forth in this document. 1. ACTIVATION: This Product Warranty shall become effective upon the original purchase date on the invoice.
Page 25 g) If a product is not covered by warranty, customer will sign an Authorization Repair Work Order of the evaluated findings and estimation of required work to bring the equipment up to manufacturer specifications. 4. RESPONSIBILITY: NB is not responsible for acts of war, terrorism, natural disaster or other force majeure or failure of services supplied by third party contracted or other sources.
Page 26 NB will be shipped via standard shipping only. Any upgrades to Express Overnight are the responsibility of the Customer. Under this Product Warranty Policy Customs Clearance, Duties or Taxes are not part of the freight expense cost. This warranty policy considers freight costs as transportation expense only, not administrative or government fees mandated by local governments.
Page 27 administrators, trustees and permitted assigns of Customer. This Product Warranty may be amended, altered or changed at any time by NB only. How to Obtain Product Warranty Service Contact NuAge Beauty/Sybaritic Customer Service Department at: Tel: 800-445-8418 or 952-888-8282 Enter Option 3 Fax: 952-888-8887 Email: customerservice@sybaritic.com...
