- Page 1 Operating instructions Universal vessel holder with urine and secretion bag cutter TopCut B Translation of the "Original operating instructions" Read operating instructions bevor using machine! 9680928 / Valid from: 2009-09 / Update: 2021-03 www.meiko-global.com...
-
Page 2: Table Of Contents
CONTENTS Page PREFACE Applicability General information DETERMINED USE Suitable bag types STRUCTURE FUNCTIONAL DESCRIPTION OPERATION: INSERTING THE BAG CLEANING SAFETY INSTRUCTIONS NOTES ON INSUFFICIENT FUNCTIONALITY OF THE TOPCUT MAINTENANCE REPLACING THE BLADE FINAL DECOMMISSIONING SPARE PARTS LIST 9680928 2 / 16... -
Page 3: Preface
The following operating instructions apply to the TopCut B urine and secretion bag cutter. The TopCut B is an accessory for the 2013 Topline and Topic cleaning and disinfection machines. It is designed as a replaceable holder to enable urine and secretion bags to be cut and emptied in TopLine and Topic machines. -
Page 4: Suitable Bag Types
2.1 Suitable bag types Bag types suitable for the TopCut B: The following bags may be inserted, cut and emptied. TopCut B Capacity Manufacturer Model in ml 1500 Physioneal 40 5000 Baxter 1500 Dianeal PD1 5000 Clear Flex Infusion bag... - Page 5 BBraun Worek with outlet Curion CuriBag Kendall mono-FLO BBraun Vacufix Serres 2000ml/3000ml 5 / 16 9680928...
-
Page 6: Structure

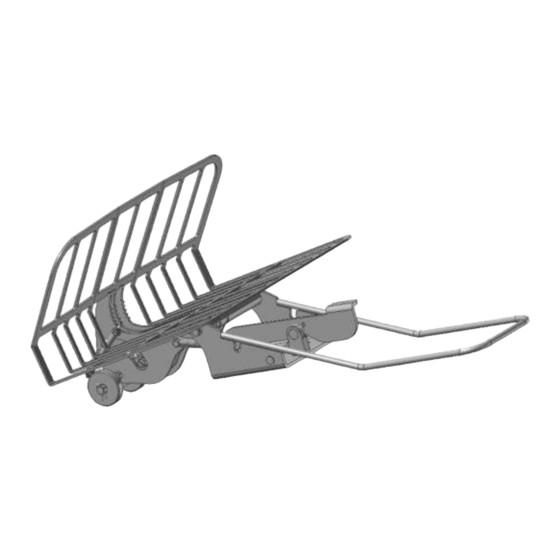

3 Structure Locking lever Knives TopCut B 9680928 6 / 16... -
Page 7: Functional Description
4 Functional description TopCut B is is used as a replaceable holder in the Topline and Topic model 2013 cleaning and disinfection device. The bag is cut longitudinally at one corner (30 to 40 mm); the bag then drains autonomously when the washing chamber is closed. -
Page 8: Operation: Inserting The Bag
5 Operation: Inserting the bag DANGER Cuts to fingers and hands! Do not activate the blade cover manually if the TopCut is not installed. TopCut is equipped with a sharp blade at the front. In idle position, the blade is covered by the cutting unit and is not exposed until the washing chamber door is closed. -
Page 9: Cleaning
When the programme has finished it means the bag has been emptied and disinfected, and can be removed! 6 Cleaning When the programme has finished it means the bag has been emptied and disinfected externally. The TopCut B has also been disinfected! 9 / 16 9680928... -
Page 10: Safety Instructions
Do not use in machines with an automatic door! If it is used in machines with an automatic door, the high load produced can result in damage to the door mechanism and to the TopCut device itself. For your own safety and to avoid any danger do only use original MEIKO spare parts! 9680928... -
Page 11: Notes On Insufficient Functionality Of The Topcut
Notes on insufficient functionality of the TopCut You are using bags that are not supported. Use only suitable bags as described in the chapter "Suitable bag types"! You are not inserting the bags correctly. -> Insert the bags as shown in the chapter "Suitable bag types". -
Page 12: Maintenance
Maintenance Maintenance work mark for work carried out daily monthly Check blade for sharpness and signs of damage Check TopCut for smooth running. Check the mechanical system for signs of damage, e.g. due to dropping Check the return spring ... -
Page 13: Replacing The Blade
10 Replacing the blade Dismount the TopCut B and fix in place on a stable workbench. Wear robust working gloves when working on the TopCut. Release the screw on the blade retainer (M5 x 6 – Phillips head) Pull out the blade ... -
Page 14: Spare Parts List
12 Spare parts list BAG CUTTER TOPCUT B TopCut B 9680928 14 / 16... - Page 15 BAG CUTTER TOPCUT B IDENT. NR. BEZEICHNUNG DESIGNATION DESIGNATION IDENT. NO. 9660285 HALTER AUSWECHSELBAR HOLDER EXCHANGEABLE SUPPORT REMPLACABLE 9658912 ZUGFEDER TENSION SPRING RESSORT DE TENSIONS 9658893 SCHENKELFEDER LEG SPRING RESSORT À BRANCHES 9662394 HEBELARM LEVER BRAS DE LEVIER 0308034 ZYLINDERSCHRAUBE...
- Page 16 MEIKO Maschinenbau GmbH & Co. KG Englerstraße 3 77652 Offenburg Germany www.meiko-global.com info@meiko-global.com Design and construction subject to change without prior notice! 9680928 / Valid from: 2009-09 / Update: 2021-03...
