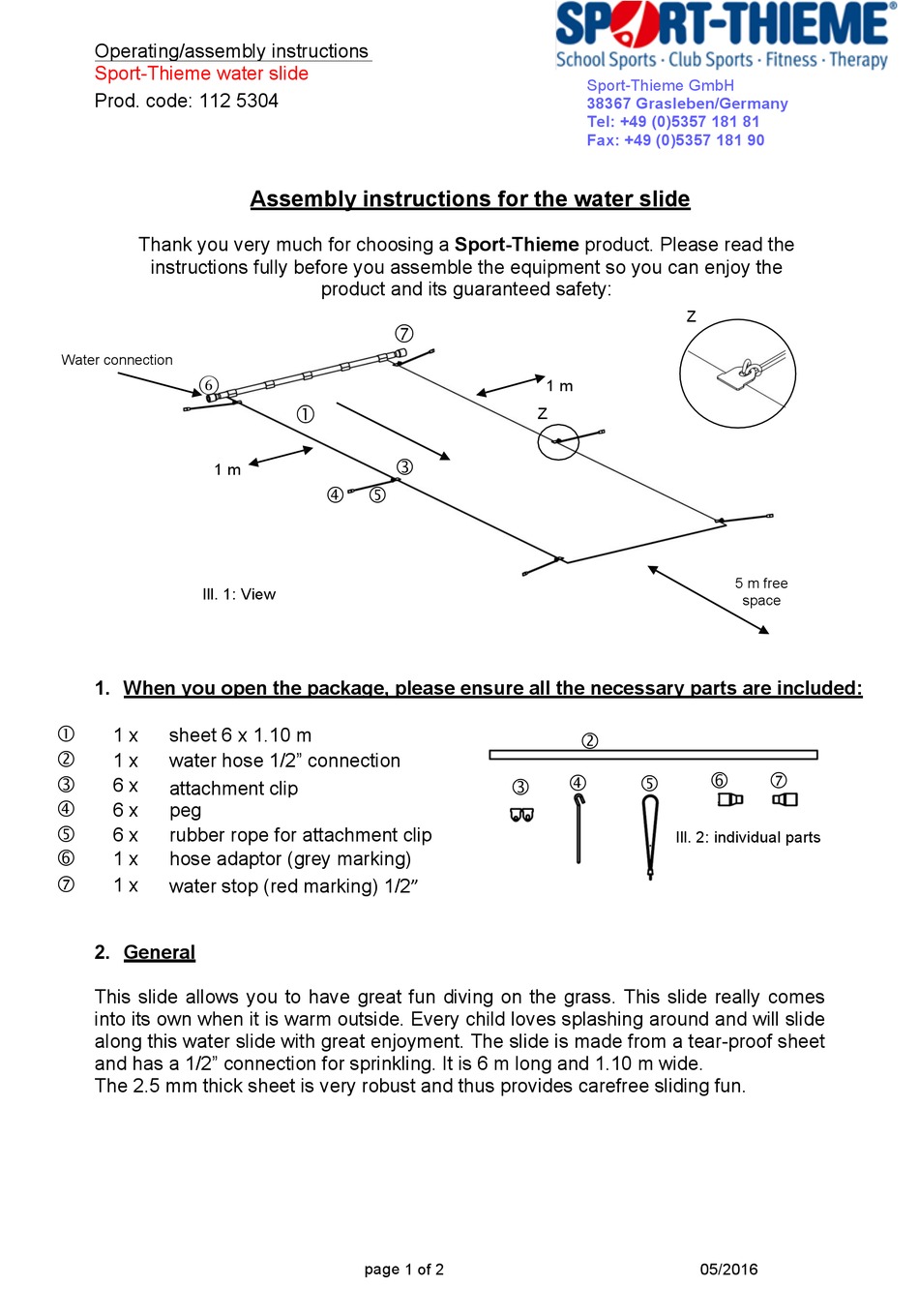

Sport-thieme 112 5304 Operating & Assembly Instructions

Operating/assembly instructions
Sport-Thieme water slide
Prod. code: 112 5304
Thank you very much for choosing a Sport-Thieme product. Please read the
instructions fully before you assemble the equipment so you can enjoy the
Water connection
⑥
1 m
Ill. 1: View

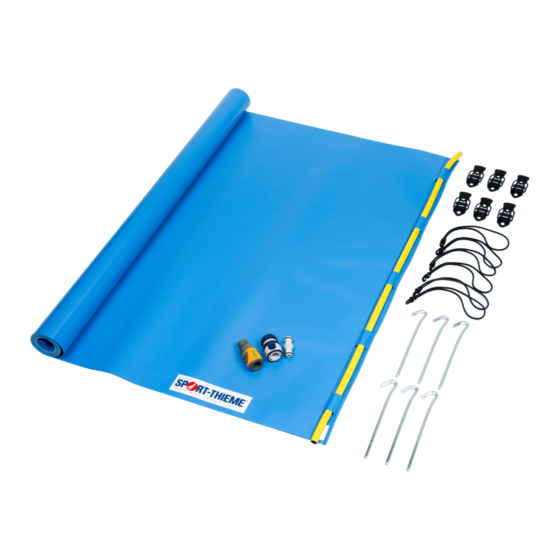

1. When you open the package, please ensure all the necessary parts are included:

1 x sheet 6 x 1.10 m
‚
1 x water hose 1/2" connection
ƒ
6 x
attachment clip
„
6 x peg
…
6 x rubber rope for attachment clip
†
1 x hose adaptor (grey marking)
‡
1 x water stop (red marking) 1/2"

2. General

This slide allows you to have great fun diving on the grass. This slide really comes
into its own when it is warm outside. Every child loves splashing around and will slide
along this water slide with great enjoyment. The slide is made from a tear-proof sheet
and has a 1/2" connection for sprinkling. It is 6 m long and 1.10 m wide.
The 2.5 mm thick sheet is very robust and thus provides carefree sliding fun.
Assembly Instructions for the water slide
product and its guaranteed safety:
‡

ƒ
„ …
page 1
of 2
Sport-Thieme GmbH
38367 Grasleben/Germany
Tel: +49 (0)5357 181 81
Fax: +49 (0)5357 181 90
1 m
Z
‚
„ …
ƒ
Ill. 2: individual parts
Z
5 m free
space
† ‡
05/2016
