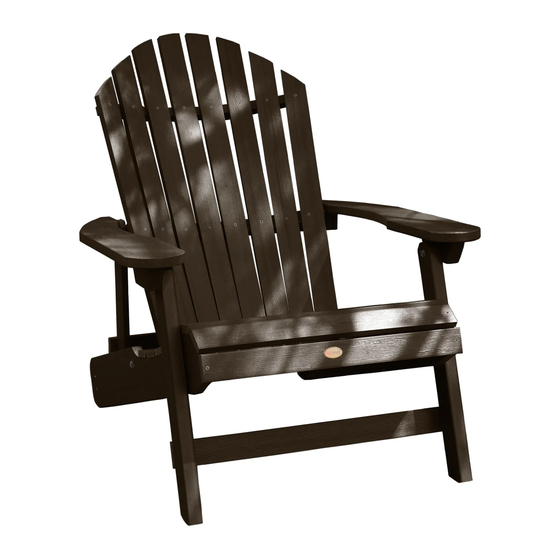

highwood ADIRONDACK HAMILTON KING CHAIR Assembly Manual

ADIRONDACK COLLECTION
HAMILTON KING CHAIR
ASSEMBLY GUIDE
1) Attach Seat Back to Seat with Bolt C.
2) Repeat on other side.
3) Attach Back Support Rail (Shorter Board)
to Back Support Sides with four A screws.
For information on Care and Cleaning your highwood® product visit www.highwood-usa.com
Visit our Website and Facebook page to see more highwood® products!
www.highwood-usa.com
4) Attach Leg to Arm Assembly
using Bolt B.
5) Repeat on other side.
www.facebook.com/highwoodUSA
HARDWARE
A x10
B
C
IMPORTANT!
DO NOT fully tighten the bolts until all
bolts are started. Once all bolts are inserted,
then go back and tighten all the bolts.

INCLUDED TOOLS

TORX BIT HEX KEY
CUSTOMER-SUPPLIED TOOLS
Cordless screwdriver/drill OR
Multi-bit handle for the Torx bit.
x4
x4
KING1
01.01.16
PAGE 1 OF 2
