4.3

Installing and Orienting the Junction Box

Before placing the BWT transducer into the FSPA/FWPA buffer permanently, you must make sure the transducer
junction box will be properly oriented after it is installed.
Note: The figures below show the FSPA Buffer only as an example.

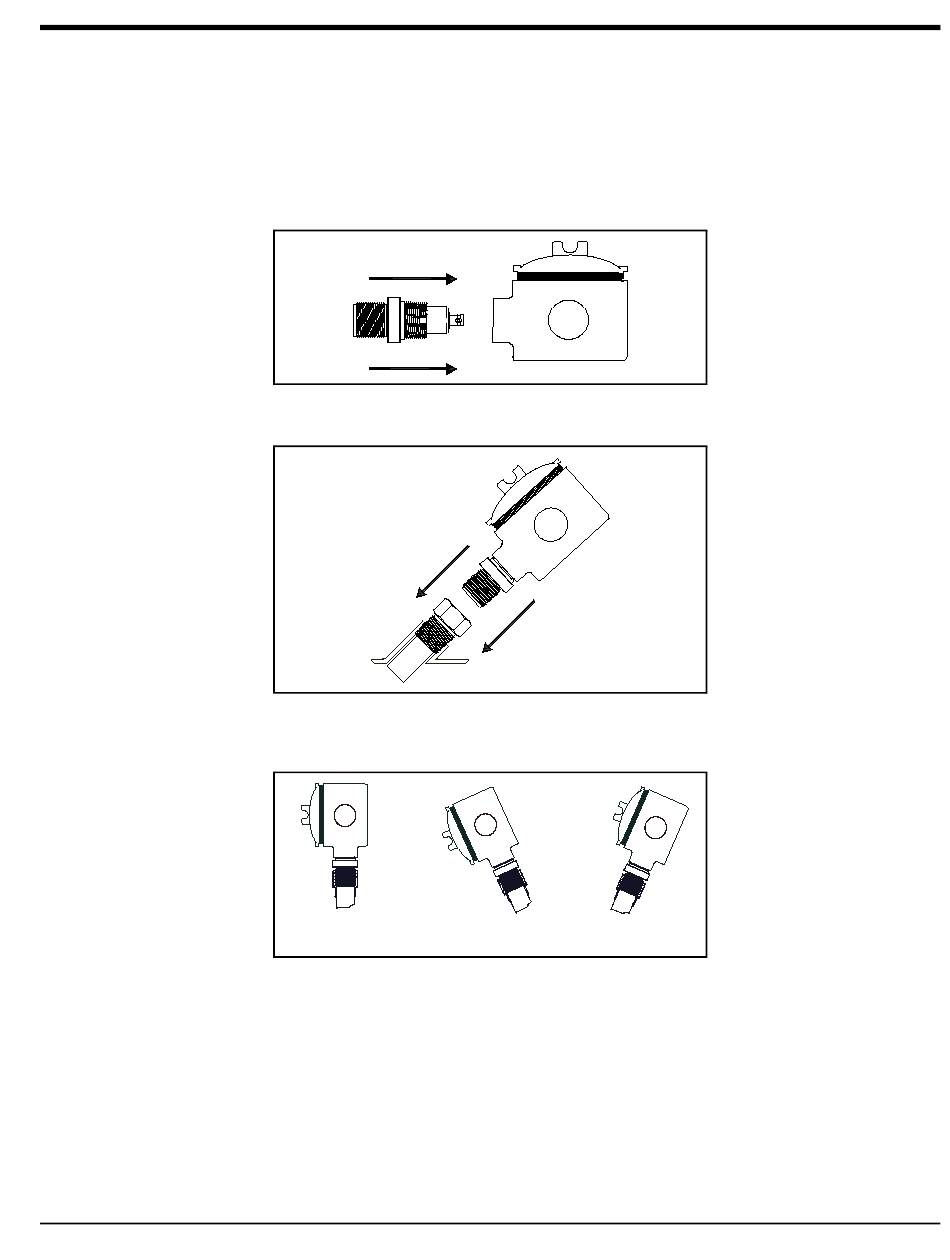

1. Screw the transducer into the junction box as shown below.
2.
Screw the transducer/junction box assembly into the FSPA/FWPA buffer.
3.
Check the junction box orientation. The junction box cover should be at a downward angle so that any liquid can
drain out of the box. If necessary, adjust the junction box until the cover is angled downward.
4. Remove the transducer/junction box assembly.
5. Repeat the above steps for the other transducer.
BWT™ System Installation Guide
OK Good
Chapter 4. Non-Flanged Installation (FSPA/FWPA Buffers)
Bad
