Chapter 3. Acoustic Isolation Installation (FIPA Buffers)
5.

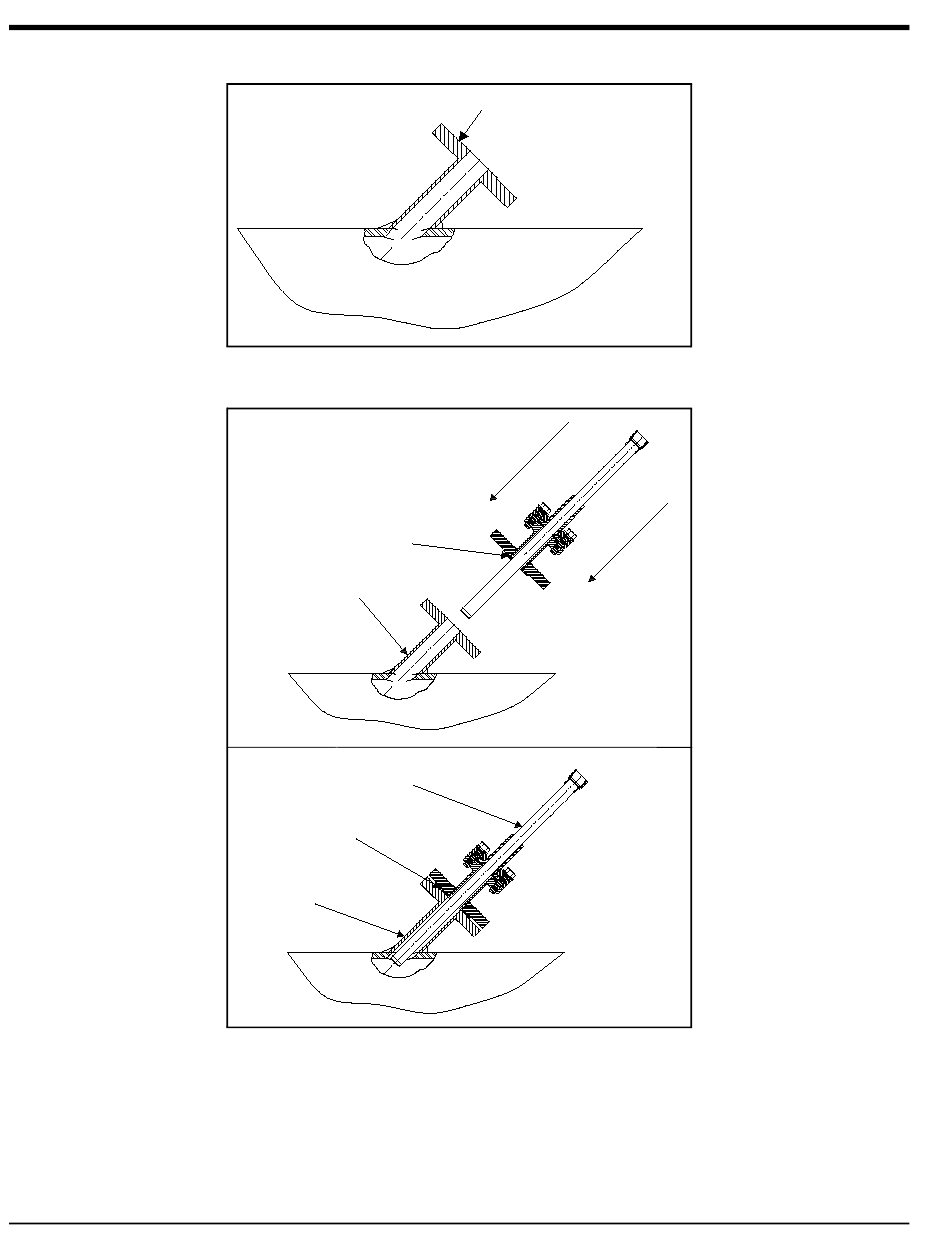

Insert the buffer/gasket assembly into the nozzle.
6. Apply Copperslip, Molykote or equivalent anti-seize compound on the first several threads at both ends of each
stud.
7. Insert one of the studs through the flanges. Make sure the stamped quality rating on the stud (e.g., B7) is facing
away from the meter body. Hand-tighten a washer and nut on each end of the stud. Make sure you leave an
equal number of threads exposed on each end of the stud.
24
Gasket
Nozzle
Buffer
Gasket
Nozzle
Inspect Pipe Nozzle
Top View
Top View
Top View
