Chapter 3. Acoustic Isolation Installation (FIPA Buffers)
3.5

Installing the BWT Transducer

Installing the BWT transducers into the FIPA Buffer requires the following three steps:
• Installing and orienting the junction box (see page 30 )
• Inserting the BWT transducers (see page 31 )
• Verifying the installation (see page 33 )
3.5.1

Installing and Orienting the Junction Box

Before placing the BWT transducer into the FIPA buffer permanently, you must make sure the junction box will be
properly oriented after it is installed.
1.

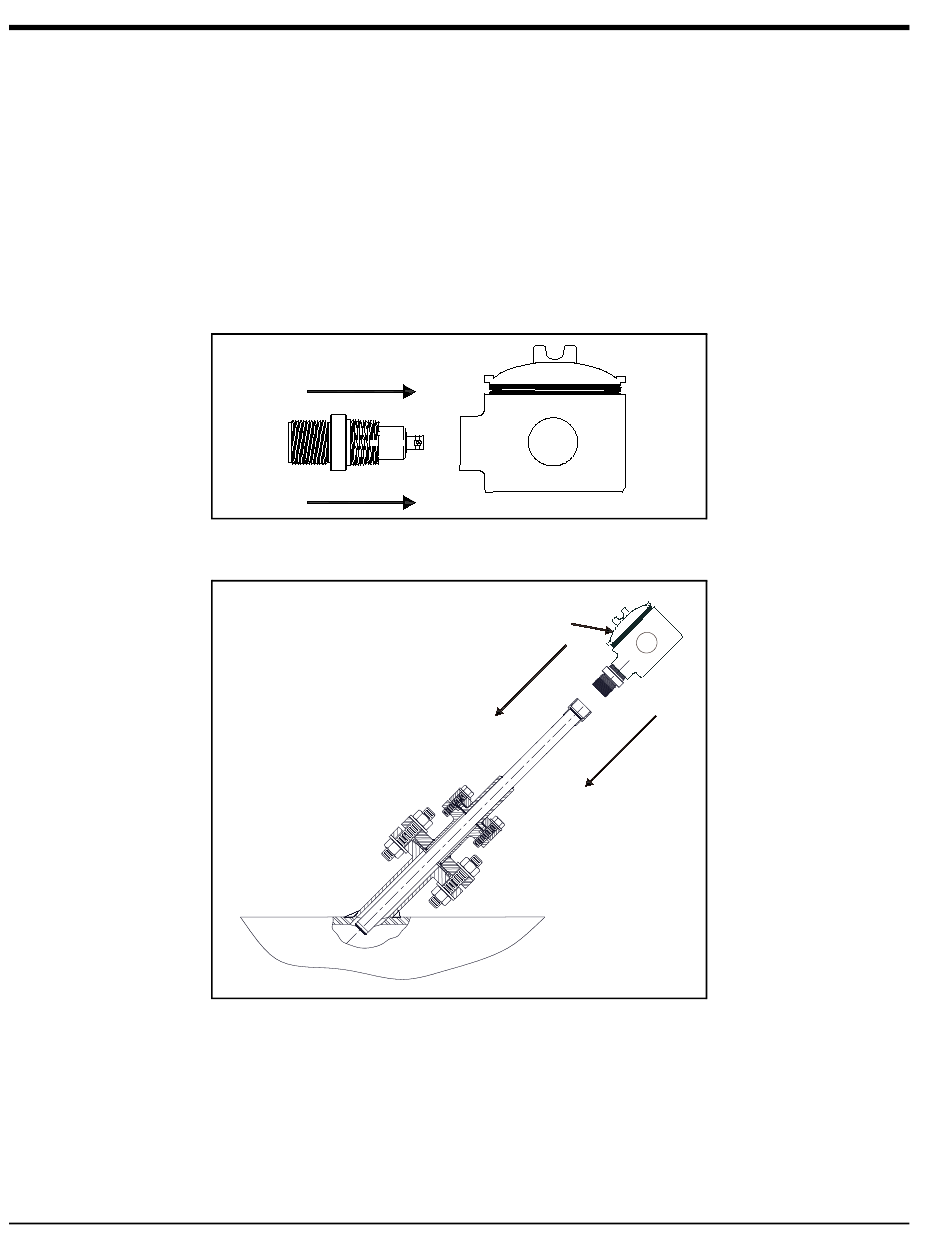

Screw the transducer into the junction box as shown below.
2. Screw the transducer/junction box assembly into the FIPA Buffer.
3.
Check the junction box orientation. The junction box cover should be at a downward angle so that any liquid can
drain out of the box. If necessary, adjust the junction box until the cover is angled downward.
30
BWT Transducer/Junction Box
Top View
