Panametrics BWT System Installation Manual page 40

Chapter 3. Acoustic Isolation Installation (FIPA Buffers)
IMPORTANT: In the next step, DO NOT overtighten the transducer.
3. Torque the transducer to a maximum of 15-18 ft-lb (20- 25 N-m).
Verify that the junction box is properly oriented as discussed in the previous section (see page 30 ).
4.
5. To connect the transducer electrical cables, see the Startup or User's Manual that was supplied with your
flowmeter.
CAUTION!
6. After you install the FIPA Buffers and transducers, you must allow the epoxy to cure for 8 hours. However, while the
epoxy cures, you should verify that the transducer and buffer are working properly (see the next section) below.
CAUTION!
7.
Repeat steps 1-6 to install the other transducer.
32

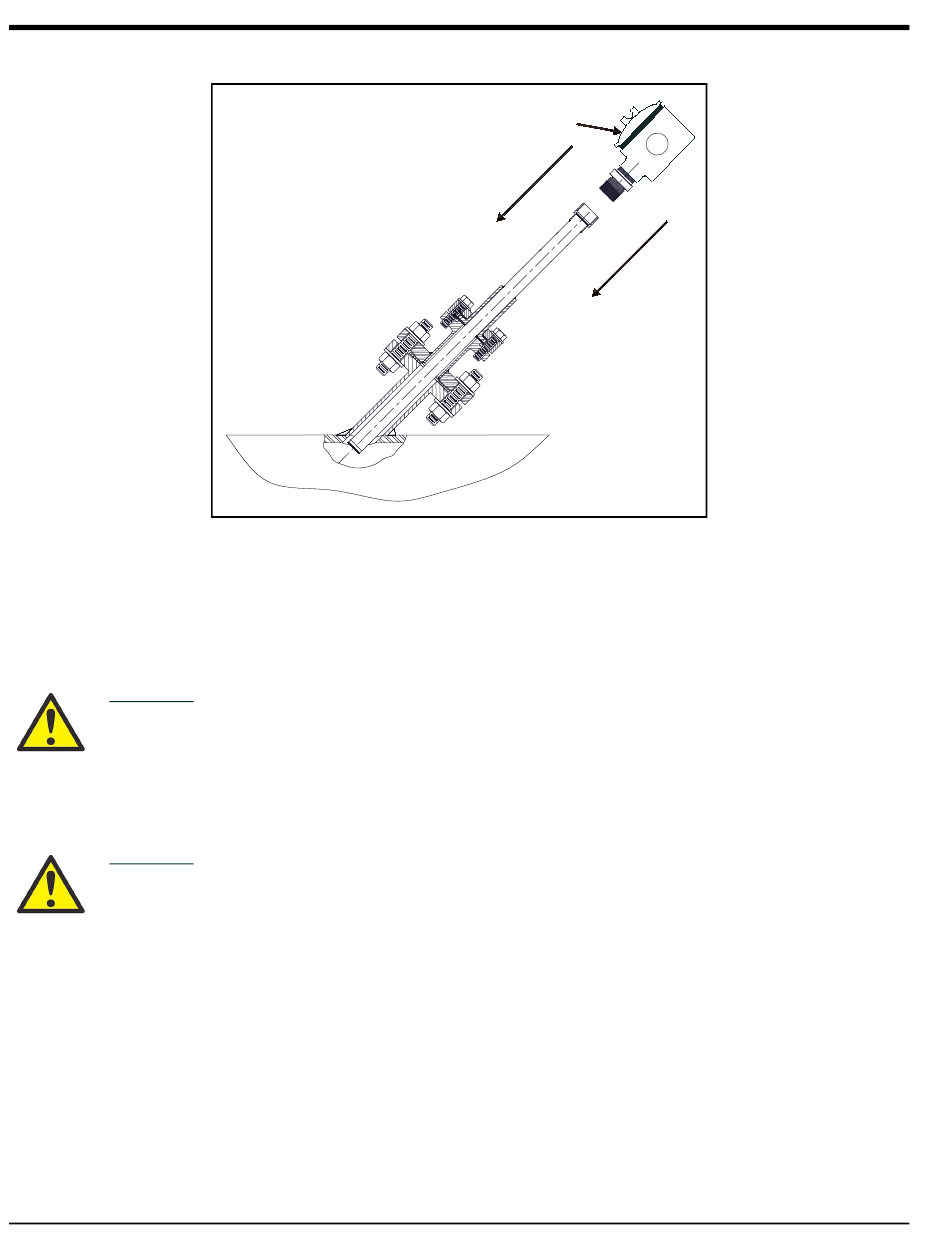

BWT Transducer/Junction Box
Do not place insulation on or around the transducer or junction box. The transducer and
junction box act as a heat sink that protects the transducer from high and low
temperatures.
While the epoxy cures, do not remove, re-torque or adjust the transducer or you will
crack the epoxy.
Top View
BWT™ System Installation Guide
