Replacing the battery

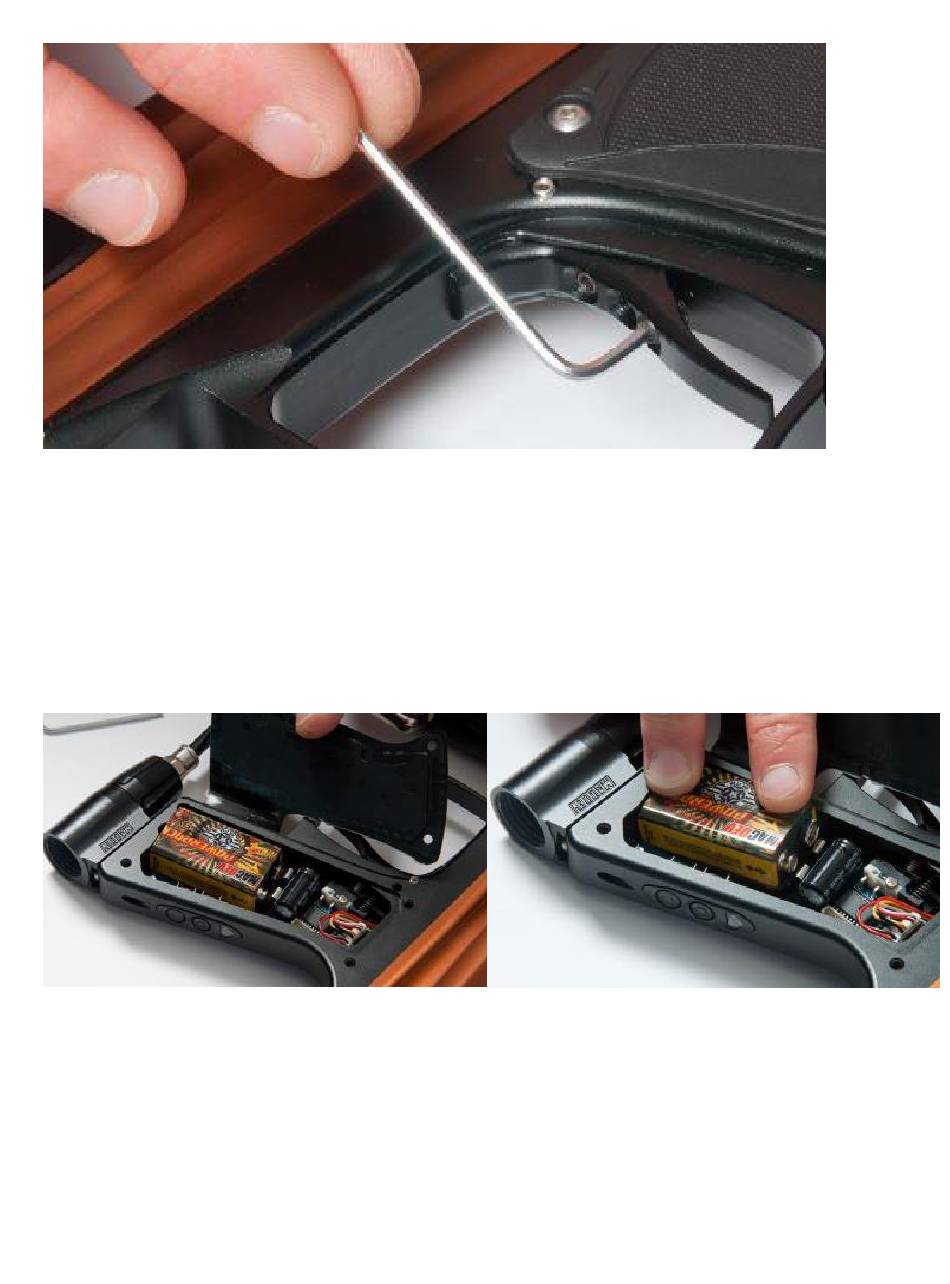

Remove the three screws holding the wrap around grip onto the left hand side of your grip frame. Gently
lever the battery out of the frame from the bottom. Take care that the terminals are not caught on the
battery.
Place the replacement battery into the marker, NOTE: make sure you put the bottom of the battery in first
then push it onto the terminals. Only use high quality alkaline 9V batteries, the best possible choice is to use
a MacDev Militia PowerPack (type 6LR61).
Programming your Drone DX
Tourney lock
Your board is equipped with a tourney lock system. When the tourney lock system is activated, settings on
the board cannot be changed.
The lock status can be changed by opening the left hand side of the marker wrap around grip to gain access
to the front of your circuit board. The tournament lock is a white button above the word MACDEV, as shown
