Care and Cleaning

Turn off the Zoneline and disconnect the power supply before cleaning.

Air Filters

NOTICE: Do not operate the Zoneline without the
filter in place. If a filter becomes torn or damaged, it
should be replaced immediately.
Operating without the filter in place or with a damaged
filter will allow dirt and dust to reach the indoor coil and
reduce the cooling/heating, performance, airflow, and
efficiency of the unit.
The most important thing you can do to maintain the
Zoneline is to change the filter at least every 30 days.
Dirty filters reduce cooling, heating performance and air
flow.
Changing the filter will: Decrease cost of operation,
save energy, prevent clogged heat exchanger coils, and
reduce the risk of premature component failure.
Replacement filters should be purchased from your local
retailer where air conditioner and furnace accessories
are sold.
Filter size for front of unit is 18" x 20" x 1".
Filter sizes for RAVRG4 is 24" x 20".
Filter sizes for RAVRG2B is 20" x 20".
NOTE: Use only one filter in the installation.
To replace the filter (unit mounted return air filter):
1. Slide the filter up to clear the filter holders.
2. Remove the filter.
3. Install new disposable filter.
To maintain optimum performance, change the filter
at least every 30 days.

Drain

Clean the drain system regularly to prevent clogging.
The condensate drain must be routed to a suitable drainage area. Check the unit condensate drain periodically. Keep
it free of anything that may block or impeded the flow of condensate water. If there is any accumulation of foreign
matter in the drainpipe, it should be removed and cleaned. The entire drain line must be protected from freezing.
8

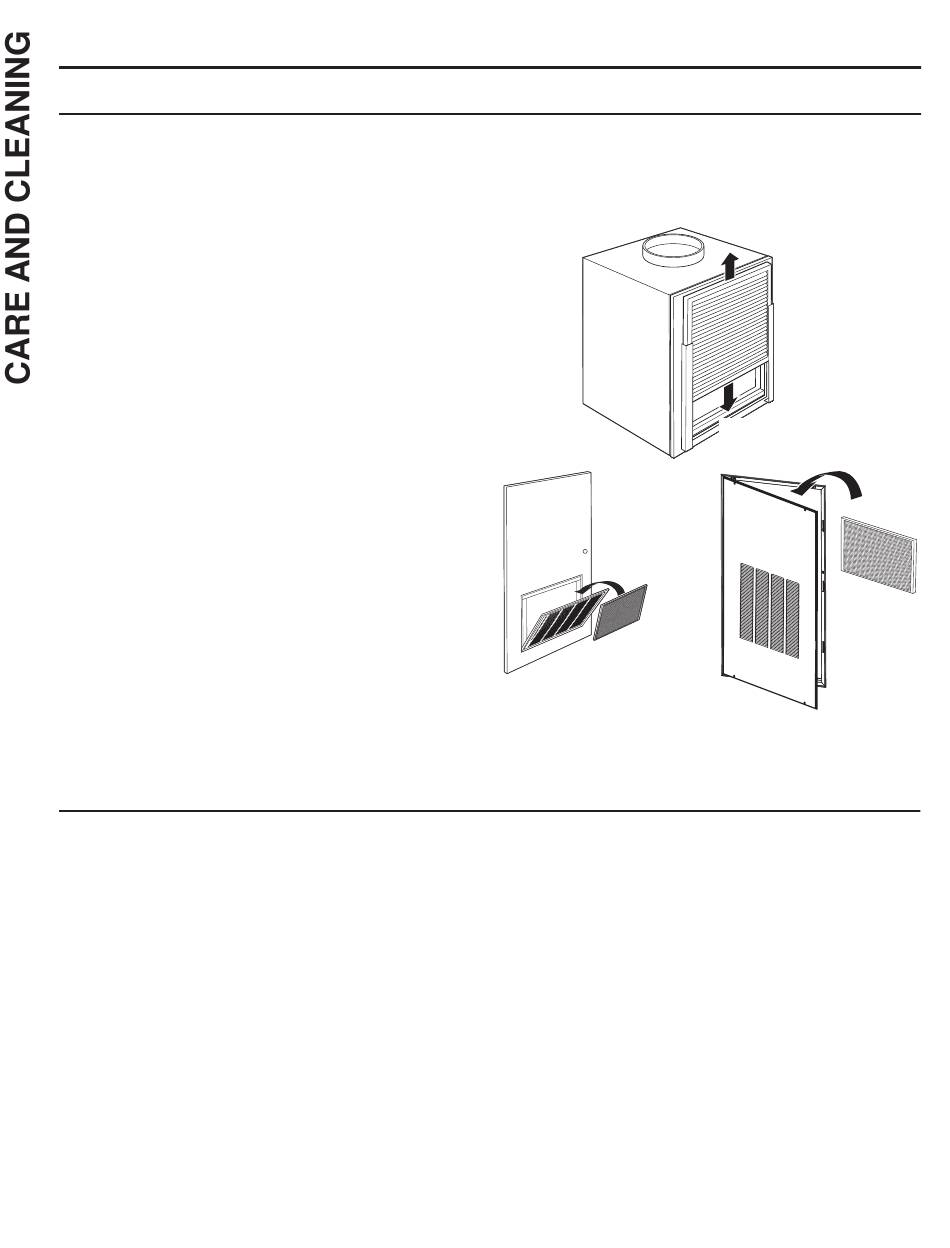

To remove
and replace
the filter:
Filter
Return air grille
Remove Filter
Unit-mounted filter
Filter
Access-panel with
return air grille
49-5000561 Rev. 1
