User Guide
ACU 2030
+
Read guide before use!
+
Observe all safety information!
+
Keep guide for future use!
If In Doubt ASK !
+44(0)1293 658360
tech@afriso-eurogauge.co.uk
Issue 6: 20/11/2018
About this User Guide
This guide is part of the device installation.
Read this guide before using the device.
Keep this guide during the entire service life of the device and
always have it readily available for reference.
Always hand this guide over to future owners or users of the
device.
Contents
2
General troubleshooting
3
General safety
General handling and storage
4
Modification
Warranty
Spare parts
Recycling
Limit of liability
Copyright
Contact Afriso Eurogauge
5
Mechanical installation
Electrical installation
6
Electrical wiring diagram
Commissioning
7
8
Declaration of origin
1 of 8

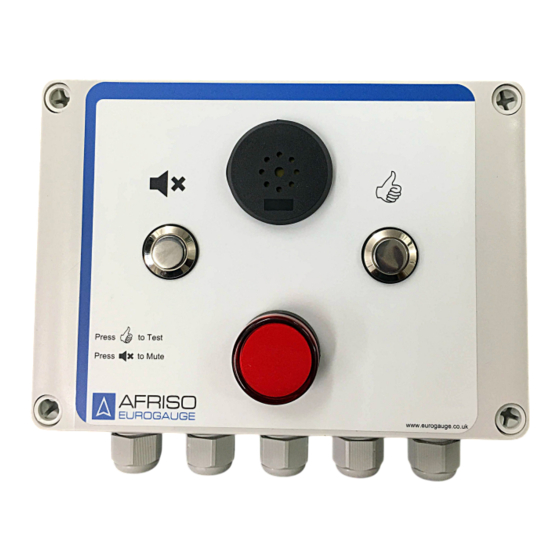

ACU 2030
Alarm Control
Unit
Advertisement
Table of Contents
Related Manuals for AFRISO ACU 2030
Summary of Contents for AFRISO ACU 2030
-
Page 1: Table Of Contents
User Guide ACU 2030 ACU 2030 Alarm Control Unit About this User Guide This guide is part of the device installation. Read this guide before using the device. Keep this guide during the entire service life of the device and always have it readily available for reference. -
Page 2: Warning Terms
Use commercially available standard RC combinations such as 0.1µF/100� for inductive load switching. Troubleshooting Repairs and fault finding may only be performed by Afriso Eurogauge personnel or qualified personnel under Afriso Eurogauge instruction. Refer to separately supplied installation guides for information regarding fault finding and repairs on external components. - Page 3 Liquids Granulated materials Powdered materials Any use other than the application explicitly permitted in this guide or authorised by Afriso Eurogauge is not permitted. Predictable incorrect application The device must never be used in the following cases:...
-
Page 4: Staff Qualification
User Guide ACU 2030 Staff Qualification The device may only be mounted, commissioned, operated, maintained, shut down and disposed of by trained staff. Electrical work may only be performed by trained electricians and in compliance with all applicable local and national directives. -
Page 5: Application
The unit is specifically designed for outdoor mounting and is protected to IP65. Operation The system consists of the ACU 2030 alarm control unit and any of the Afriso Eurogauge range of level switches possessing voltage free relay output contacts. The ACU 2030 incorporates both visual and audible alarms, a set of voltage-free output relay contacts, as well as an alarm Test switch and an audible alarm Mute switch. - Page 6 User Guide ACU 2030 Electrical Connection Diagram Live Earth Neutral Voltage free output contacts 24Vdc shown in alarm condition. +ve 0v 24/48Vac Input from external level or float switch (voltage free) Note: Supply Voltage depends on unit ordered 6 of 8...
-
Page 7: Specification
User Guide ACU 2030 Specification Part Numbers 2030 02 000-1 230Vac 2030 02 000-2 110 Vac 2030 02 000-3 24 Vac 2030 02 000-4 24 Vdc 2030 02 000-5 48 Vac Supply 110/230 Vac : 50 Hz : 3VA. Input voltage factory set. -
Page 8: Declaration Of Conformity
D C Ward Position: Technical Manager Date: 21/02/2007 8 of 8 Afriso Eurogauge Ltd, Unit 4, Satellite Business Village Fleming Way, Crawley, West Sussex. RH10 9NE Tel: +44(0) 1293 658360 Fax: +44(0)1293 528270 email: sales@afriso-eurogauge.co.uk Web: www.eurogauge.co.uk Issue 6: 20/11/2018...
