Summary of Contents for Zip HydroTap G4 BC100/75

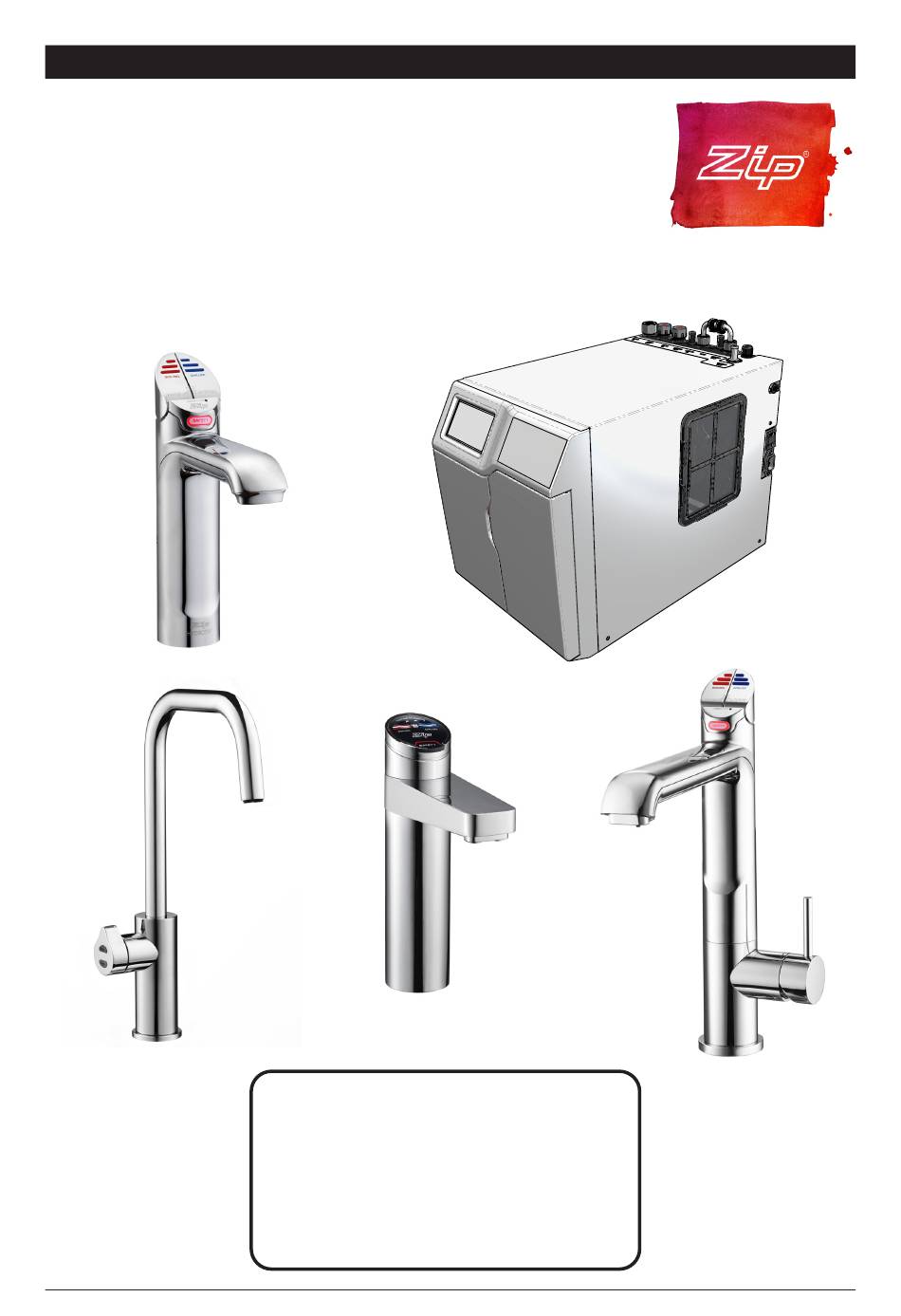

- Page 1 Zip HydroTap G4 ® Installation and Operating Instructions BC100/75 range Affix Model Number Label Here 802411 802411 v3.05 09.20 HT BC Compact Instructions Page 1 of 28...
-
Page 2: Step

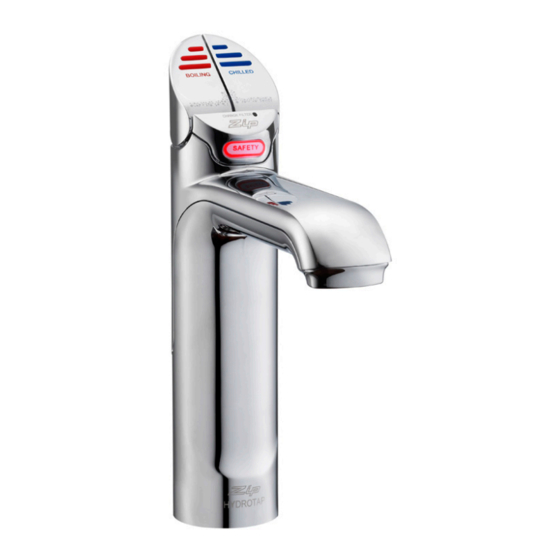

Tap Options The Zip HydroTap G4 appliance series offers a range of interchangeable taps to suit the customer’s needs Classic Tap These taps are directly compatible with the HydroTap G4 Command Centre. Arc / Cube Tap Elite Tap The Mixer tap range is an additional series of taps that... -
Page 3: Table Of Contents
Index HydroTap Specifications Installation Checklist ........................4 General Product Features ......................5 Important Safety Instructions ....................... 6 Warnings and Regulatory Information ..................7 Major Components and Accessories ................... 8 Technical Specification ........................ 9 Before Installation and Site Requirements ................... 10 Installation Instructions STEP 1 - Fit the tap to the benchtop or sink before installing the Command Centre. -
Page 4: Installation Checklist
Installation Checklist Before Installation: Read the instructions and check if there is adequate space to mount all of the components. Note: Not all fittings are supplied with the appliance kit. Isolation valves are not supplied. Check the mains water pressure is between 172 - 700kPa and 200 - 700 kPa when a booster is installed Check the water quality to determine if extra filtration will be required. -
Page 5: General Product Features
General Product Features Thank you for purchasing a Zip HydroTap. Please read and follow these instructions carefully to ensure safe and trouble free service. If service is required, please call 1800 460 222. What is the Zip HydroTap ? The Zip HydroTaps are electronically controlled, filtered, Boiling water and Chilled water drinking systems for kitchens and tea rooms. -
Page 6: Important Safety Instructions
Lifting Take care when lifting the Zip HydroTap unit. Some units may exceed safe lifting limits. If you feel this is beyond your personal capabilities, please seek assistance with the lift. The weights of the units are marked on the packaging. -
Page 7: Warnings And Regulatory Information
WARNINGS 1. The Zip HydroTap unit must be earthed. The resistance of the earth connection from each exposed metal part must be less than 1 ohm. 2. All Installation and service work must be completed by trained and suitably qualified Tradespeople. -
Page 8: Major Components And Accessories
Major Components and Accessories Parts supplied Description Accessories Description 1 x Tap HydroTap Booster option with hoses Water System with (Classic tap shown) connection hoses 1 x HydroTap Command Centre with air and water Font Kit for filters Arc & Cube Models 1 x Mains water connection hose Font Kit for Classic &... -
Page 9: Technical Specification
Technical Specifications Models Cups of Glasses Boiling of Chilled Boiling and Chilled Model Water per Water per BCHA 4 in 1 Hour Hour All in One - Mains All in One - Vented Disabled lever controls (optional accessory) Note: • The Cup measurement =167ml and the Glass measurement = 200ml •... -
Page 10: Before Installation And Site Requirements
/ or water softener if required. Refer to section 3 & 4, for Installation instructions. • For Zip HydroTap 100/75 models, a 220-240V, 10A AC power outlet will be required. For Zip HydroTap 140/75 models, two 220-240V, 10A power outlets will be required (one power outlet for the Zip HydroTap and the other for the Booster heater). -
Page 11: Refer To The Tap Installation Instruction Book 803341
Section 1 Tap Installation Refer to the Tap installation instruction book 803341. Section 2 Ventilation Ventilation for All Models Proper air circulation must be provided for all models. The system will operate correctly only if the recommend- ed air gaps are achieved during installation. It is important that the 4mm door buffers are fitted to the inside edge of the cupboard door to allow sufficient air circulation inside the cupboard (see diagram below). -
Page 12: Cupboard Air Circulation
Ventilation When installing air flow ducts, the following tools will be required: • Jigsaw and a 12mm Drill • Keyhole or Wall Board saw. The following instructions are critical if there is insufficient cupboard air circulation If the air flow, using the silicone door buffers, is insufficient, it will be necessary to fit a standard HydroTap vent kit, which ensures heat dissipation through natural convection via installed vents. - Page 13 Ventilation Typical Cut out procedure for 1. Mark out and cut the air inlet and door outlet holes as shown 2. Ensure the air inlet vent and air outlet vent are positioned at opposite ends of the same cupboard space. 3.
-
Page 14: Product Description
It is intended to provide pre heating of water before it enters the Zip HydroTap G4 boiling tank. The Booster is supplied as standard equipment with all 140 cup models. However, it may be later installed, as an accessory for the 100 cup models, to increase their delivery to 140 cups. -
Page 15: Installation Procedure
Booster Installation Installation Procedure Site requirements • The appliance must only be installed in a frost-free area. Never expose the appliance to frost. • The appliance is designed for wall mounted installation and must to be installed with water connectors facing upwards. -
Page 16: Braided Hose Connections
‘Bypass Out’ fitting to the water inlet of the booster unit (Marked Blue) and from the outlet of the booster unit (Marked Red) to the ‘Bypass IN’ fitting on the Zip HydroTap unit. Avoid exerting any mechanical pressure on the appliance. This can be achieved by applying a spanner on the flats of the inlet and outlet connections when tightening the braided hose connectors. -
Page 17: Step
The diverter bypass valve allows the user to choose to have the boiling feed water bypass the internal filter and only be filtered by external filtration. The diverter valve is located at the rear panel of the Zip HydroTap Command Centre on the filter door side. Refer to the image below to determine the correct valve position. -
Page 18: Model Bc
Installation Instructions Model: Boiling Chilled BC100/75 Note: Note: the hoses the hoses need to have a need to have a constant downward constant downward gradient to the gradient to the Hydrotap to allow Hydrotap to allow all water to drain all water to drain back into the tanks. -
Page 19: Model Aio Mains
Installation Instructions Model: All-In-One Mains Pressure Note: the hoses the hoses Note: need to have a need to have a constant downward constant downward gradient to the gradient to the Hydrotap to allow all Hydrotap to allow all water to drain back water to drain back into the tanks. -
Page 20: Model Aio Vented
Installation Instructions Model: All-In-One Vented Booster HT Mixer Note: the hoses the hoses Note: connections need to have a need to have a constant downward constant downward gradient to the gradient to the Hydrotap to allow all Hydrotap to allow all water to drain back water to drain back into the tanks. -
Page 21: Model 4-In-1 Vented
Installation Instructions Model: 4-In-One Vented Note: the hoses the hoses Note: Booster need to have a need to have a HT Mixer constant downward constant downward connections gradient to the gradient to the Hydrotap to allow all Hydrotap to allow all water to drain back water to drain back into the tanks. -
Page 22: Section 5 - Commissioning
Section 5 Commissioning Do not commission your HydroTap until it is ready to be used! The HydroTap is designed to be installed, commissioned and used within 48 hours. If your HydroTap is left idle before use, a filter change and sanitisation may be required. •... -
Page 23: Boiling Calibration
Commissioning Boiling Calibration • Press the calibration button and the system will commence the Boiling calibration procedure. This will take approx 5-6 minutes. Booster • Upon completion, a Booster reminder screen will appear and allow you to return home by pressing the [Home] button. -
Page 24: Safety Sensor Calibration
Safety Sensor Calibration (Lever taps) Safety Sensor Calibration Light intensity varies from site to site, therefore it is recommended that a re-calibration be performed at the time of the installation. All direct natural sun light must be shaded from the HydroTap, during the calibration. This can be achieved by closing any nearby curtains, blinds, or by shielding the HydroTap with a dark cloth. -
Page 25: Troubleshooting Table
Internal fault Call Zip Service Flow Sensor Fault Internal fault Call Zip Service Call an electrician, a plumber, or a Zip Service Provider for assistance, service, spare parts or enquiries. 802411 v3.05 09.20 HT BC Compact Instructions Page 25 of 28... -
Page 26: End Of Life Disposal
End of Life Disposal In order to help preserve our environment we ask that you dispose of this product correctly. Please contact your local city council for collection centre details. Page 26 of 28 802411 v3.05 09.20 HT BC Compact Instructions... - Page 27 Notes 802411 v3.05 09.20 HT BC Compact Instructions Page 27 of 28...
-
Page 28: Contact Details
Zip Water (Aust) Pty Ltd ABN 46 000 578 727 67-77 Allingham St, Condell Park NSW 2200 Postal: Locked Bag 80, Bankstown 1885 Australia zipwater.com | (+612) 9796 3100 | 1800 ZIP TAP (1800 947 827) WMKA00099 AS 3498 The terms “Zip” and “HydroTap” are registered trade marks of Zip Water (Aust) Pty Ltd.
