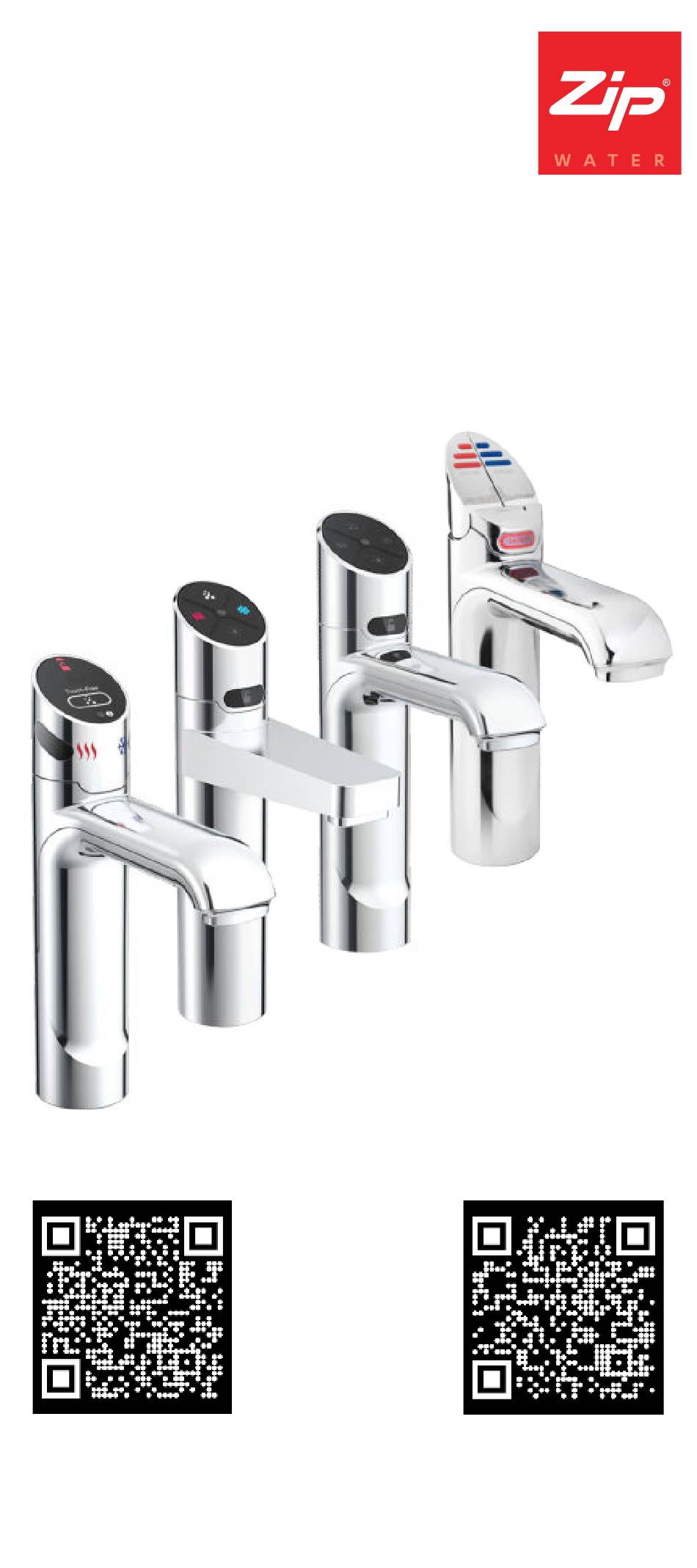

- Page 1 User Guide HydroTap G5 ® Australia Visit our website to download the manuals 806835 v1.08 05.23 G5 User guide...
-
Page 2: Table Of Contents
Table of contents SECTION 1: SAFETY ........4 1.1 Explanation of symbols .......... 4 1.2 Before you start ............. 4 SECTION 2: Using the HydroTap ....5 2.1 Classic Plus, Elite Plus ..........6 2.2 Touch-Free Wave ..........7 2.3 Arc, Arc Plus, Cube, Cube Plus and Celsius ... 9 2.4 Celsius Plus AIO &... - Page 3 Register product • Navigate to the register product menu. • Scan the QR code and follow the on screen steps to register your product. REGISTER PRODUCT 12:12 PM ® Congratulations on Congratulations on purchasing a HydroTap purchasing a HydroTap system. system.
-
Page 4: Section 1: Safety
SECTION 1: SAFETY 1.1 Explanation of symbols Read the instructions WARNING Danger of electric shock Hot surface 1.2 Before you start Read the WARNINGS and PRECAUTIONS. Download & read the complete Command Centre installation instruction manual and user guide. Read and use the instructions supplied with individual kit components for safe use and installation of replacement consumables. -
Page 5: Section 2: Using The Hydrotap
SECTION 2: Using the HydroTap Classic Plus, Elite Plus See page 6 Touch-Free Wave See page 7 Arc, Arc Plus, Cube, Cube Plus and Celsius See page 9 Celsius Plus AIO & Pull-Out See page 10 Classic See page 12 HydroTap Mixer Taps See page 13 806835 v1.08 05.23 G5 User guide... -
Page 6: Classic Plus, Elite Plus
SECTION 2: Using the HydroTap 2.1 Classic Plus, Elite Plus Controls Press to dispense Simply press to dispense chosen water type Safety lock Lights Service Safety FLASHING lock Change filter or CO . ON Safety lock on. OFF Safety lock off. Ready to dispense. -
Page 7: Touch-Free Wave
SECTION 2: Using the HydroTap 2.2 Touch-Free Wave Controls Touch-free Safety sensors on the tap top, sensor back and sides. (at back) Dispense sensors Clearance requirements 100mm 100mm Lights RED Boiling & safety sensors activated, water dispensed. Light BLUE Chilled sensor activated, water dispensed. - Page 8 SECTION 2: Using the HydroTap 2.2 Touch-Free Wave continued Dispense options Sensor range 1 - 4cm. To dispense, hold hand within range of the sensors. Tap will not operate and light will flash if the sensors are touched or if your hand is too close. Boiling Boiling Water Chilled...
-
Page 9: Arc, Arc Plus, Cube, Cube Plus And Celsius
SECTION 2: Using the HydroTap 2.3 Arc, Arc Plus, Cube, Cube Plus and Celsius Controls Bottle fill Indicator displays system status. (timed dispense) Select touch to select water type. Manual Boiling SELECT dispense Chilled SELECT Sparkling SELECT Safety When safety lock is on, touch twice to flash. -
Page 10: Celsius Plus Aio & Pull Out
SECTION 2: Using the HydroTap 2.4 Celsius Plus AIO & Pull-Out Controls Press & hold to dispense. Press & hold the relevant symbol to dispense chosen water type. Safety lock Safety Tap twice to flash. Touch to dispense boiling water. Lights Safety lock... - Page 11 SECTION 2: Using the HydroTap 2.4 Celsius Plus AIO Pull-Out continued Spray hose Pull out the spray nozzle with its integral handle. Use the mixer control to dispense, see page 13. Spray safety lock The boiling water icon turns off when the spray hose is pulled out indicating that...
-
Page 12: Classic
SECTION 2: Using the HydroTap 2.5 Classic Controls Push for manual dispense Pull for bottle fill (timed dispense) Lights Filter Boiling ready Chilled / sparkling Safety ready lock SAFETY ON active OFF inactive FILTER Ready to dispense. Filter within lifespan. FLASHING SLOWLY FLASHING SLOWLY Water temperature is not... -
Page 13: Hydrotap Mixers
SECTION 2: Using the HydroTap 2.6 HydroTap Mixers Controls mixed water Cold Rotate the lever front to back change the water temp. Rotate the lever left to right change the water flow. 806835 v1.08 05.23 G5 User guide... -
Page 14: Section 3: Command Centre Screen
SECTION 3: Command Centre Screen 3.1 How to use the Command Centre screen The Command Centre has a colour touch screen liquid crystal display. The screen turns OFF after 5 minutes of non-use. Touch the screen to reactivate. Navigate to the required screen. Here's an example : Set the language - from the home screen Touch the ‘top left’... - Page 15 SECTION 3: Command Centre Screen OFF screen Touch the power button to turn the Command Centre ON or OFF. The LCD screen visually shows OFF when it is non- operational. You will hear the sound of an internal “click” as the HydroTap Command Centre turns ON or OFF.
-
Page 16: Home Screen
SECTION 3: Command Centre Screen 3.2 Home screen Status screens shown here are representative and may vary. Use the home screen to monitor the HydroTap status. Touch each icon to view the system status. Boiling temperature Chilled temperature set set point point (Chilled models) CO gas remaining (Sparkling models) CO2 GAS REMAINING... -
Page 17: Main Menu
SECTION 3: Command Centre Screen 3.3 Main menu Use the Main menu to configure your HydroTap and access features and settings. Touch each icon to access further options. 3.4 General settings Language LANGUAGE 10:50 English English French Lorem ipsum German Imperial Metric Units:... - Page 18 Press the tick to confirm and save. DATE & TIME 12:12 PM 2021 24 hr Time Network Connect to Wi Fi (available with optional Zip Assist Kit). NETWORK 12:12 Zip Wi-Fi Cloud Wi-Fi Hotspot Registration...
-
Page 19: System Settings
SECTION 3: Command Centre Screen 3.5 System settings Configure your HydroTap to suit your needs. Navigate to system settings screen for all system settings. 806835 v1.08 05.23 G5 User guide... -
Page 20: Filter Settings
SECTION 3: Command Centre Screen 3.5.1 Filter settings FILTER SETTINGS 12:12 Filter Filter Filter Reset Flush Life Filter flush Use Filter flush during commissioning of a new installation, and after every filter change. See page 36 for filter change instructions. Flush line tap Open filter door, uncoil flush line. - Page 21 SECTION 3: Command Centre Screen Start flush. Approximately 10L of water will flow, for 2 minutes. FILTER FLUSH 12:12 PM RUNNING..Water is now being flushed through the filter. This process is automatic and will take 2 minutes. Press pause to pause filter flush. The screen will show the filter has been flushed.
- Page 22 SECTION 3: Command Centre Screen Filter reset Reset the filter counters after filter replacement and flush. FILTER RESET 12:12 PM This will reset the usage counters for the chosen item. Select an item and press reset to confirm. Internal External filter filter Filter life...
-
Page 23: Temperature Settings
SECTION 3: Command Centre Screen 3.5.2 Temperature settings Boiling / Chilled set point Adjust as required. COLD/HOT SETPOINT 12:12 PM Chill Set Point Boiling Set Point °C °C Chilled models Default chill set point: 5-9ºC Commercial, 6-10ºC Residential. Scroll to select alternatives. Sparkling models Chill set point: 3-6ºC Commercial, 3-7ºC Residential. - Page 24 SECTION 3: Command Centre Screen Boiling calibration Take care during boiling calibration as hot steam may vent from the tap spout. On start-up, the HydroTap self-calibrates, or go to this menu to recalibrate. Calibration will take around 10 minutes. BOILING CALIBRATION 12:12 Boiling Water Temp.
-
Page 25: Co Settings
SECTION 3: Command Centre Screen 3.5.3 CO settings CO2 SETTINGS 12:12 PM Purge Reset Life CO purge Purge the gas lines when fitting a new CO gas cylinder. Press the green start icon. The purge runs for 30 seconds. Water may be dispensed before CO gas escapes from the tap. - Page 26 SECTION 3: Command Centre Screen CO life CO life may be adjusted by months or litres. The Home screen displays a warning when the CO level reaches 20% (see page 16). CO life defaults to grams absorbed. Months of use may also be selected to trigger a reminder to prepare a replacement CO cylinder.
-
Page 27: Dispense Times
SECTION 3: Command Centre Screen 3.5.4 Dispense times Set the “bottle fill” dispense time for each water type. Minimum dispense time: 5 seconds. Maximum dispense time: 15 seconds (default). 3.5.5 Light sensor Follow the on screen instructions. Ensure the ambient light in the room is typical for operating conditions. -
Page 28: Quiet Mode
SECTION 3: Command Centre Screen 3.5.6 Quiet mode Lowering the fan speed can reduce noise. Increasing it may improve chilling performance. Residential models: 75% / 100% / Auto (default). Commercial models: 100% (default) / Auto. 3.5.7 Advanced settings 1 ADVANCED SETTINGS 1 12:12 PM Periodic Pulse Reduced Cavitation Mode Hot setpoint must be <... -
Page 29: Advanced Settings 2 (Wave Tap Only)
SECTION 3: Command Centre Screen 3.5.8 Advanced settings 2 (Wave Tap only) ADVANCED SETTINGS 2 12:12 PM Wave Tap Sensor Demister Mode Allows Control of Heating of Wave Tap Wave Tap Lock Mode Dual Sensors Required for Chilled/Sparkling Wave Tap Sensor Demister Mode •... -
Page 30: Safety & Security
SECTION 3: Command Centre Screen 3.6 Safety & security SAFETY & SECURITY 12:12 Safety & Password Security Protect 3.6.1 Boiling safety (Not applicable to Touch-Free Wave Tap) BOILING SAFETY 12:12 Boiling safety lock Use the safety button to dispense hot water Hot isolation (additional boiling safety) 3 slow safety button presses required prior to dispensing... -
Page 31: Passcode Protect
SECTION 3: Command Centre Screen 3.6.2 Passcode protect Activate passcode protection to limit access to certain settings. Users will be prompted for this passcode when attempting to access settings. Create a 4-digit passcode and re-enter, as prompted. The passcode will be deactivated if the HydroTap is reset (powered off and on again). -
Page 32: Energy Saving
SECTION 3: Command Centre Screen 3.7 Energy saving 3.7.1 Sleep mode • Disabled (default). • Enabled: Any attempt to dispense water will bring the HydroTap out of sleep mode. Allow sufficient time for the water to reach the set temperature. Sleep when... -
Page 33: On/Off Timer
SECTION 3: Command Centre Screen When sleeping Choose between the following modes: • Keep hot water at 68°C (default). Chilled water will be kept at setpoint, for chilled models. • Turn system OFF: boiling and chilled water will be OFF. WHEN SLEEPING... -
Page 34: Energy Use
SECTION 3: Command Centre Screen 3.7.2 On/Off Timer continued Select the day or range of days, then set the desired Off/ On times. Touch the tick to confirm and save. SET TIMER 12:12 PM Off at On at 3.7.3 Energy Use Track energy usage of your HydroTap by viewing the total energy consumed and the energy consumed since the last energy use reset. -
Page 35: Info & Logs
SECTION 3: Command Centre Screen 3.8 Info & logs INFO & LOGS 12:12 PM Filter System Recent About Logs Faults Faults System Filter Logs, System Faults, Recent Faults View the filter reset history, current and recent fault history. About System View the system information. -
Page 36: Section 4: User Maintenance
SECTION 4: User maintenance 4.1 Changing the internal filter The tap and screen will indicate that a filter needs to be changed. Depending on local water quality conditions and usage, the filter may require changing before the filter change indication is shown. You may also need to replace the filter if you notice an increase in chlorine, taste or odour. - Page 37 SECTION 4: User maintenance Moisten connector o-rings. Insert Rotate Push up Fit new filter. Initiate the filter flush programme by scrolling through the menu screen (see page 20). Clean up and dispose of old cartridge and packaging. If the HydroTap is switched off for a long period of time (e.g.
-
Page 38: Air Inlet Filter Maintenance
SECTION 4: User maintenance 4.2 Air inlet filter maintenance Remove and clean quarterly. Rinse off with tap water. Gently dry with a cloth or towel. Maintain at least a 50mm air gap in front of the air inlet screen at all times. Take care to keep the air inlet clear of blockage. -
Page 39: Co Cylinder And Regulator
SECTION 4: User maintenance 4.4 CO2 cylinder and regulator Significant concentrations of CO2 gas can cause harm. To prevent leaks, read and use the instructions and safety documents provided with the replacement cylinder, together with these instructions. Components Cylinder valve Regulator Hose Regulator to... - Page 40 SECTION 4: User maintenance Universal G5 CO2 regulator Cylinder pressure Outlet Gas hose pressure connection Set to 3.0 bar Regulator control knob Cylinder connection 1.2kg cylinder non-adjustable regulator Regulator control knob Braided hose connection Cylinder connection 806835 v1.08 05.23 G5 User guide...
-
Page 41: Changing The 2.64Kg Co Cylinder
Adjust outlet pressure 3.0 bar. Test for leaks by brushing with soapy water and looking for bubbles. Reseal if leaking, or call Zip for advice and assistance. Purge, reset and set the CO life, (see page 25). Test for leaks in these areas... -
Page 42: Changing The 1.2Kg Co2 Cylinder
3.0 bar. Test for leaks by brushing with soapy water and looking for bubbles. Reseal if leaking, or call Zip for advice and assistance. Purge, reset and set the CO life, (see page 25). Test for leaks in these areas... - Page 43 Strap in place. valve. Test for leaks by brushing with soapy water and looking for bubbles. Reseal if leaking, or call Zip for advice and assistance. Purge, reset and set the CO life, (see page 25). Test for leaks in these areas...
- Page 44 Images in this booklet have been modified and may not be true representations of the finished goods. The terms “Zip” and “HydroTap” are registered trade marks of Zip Heaters (Aust) Pty Ltd. 806835 v1.08 05.23 G5 User guide...
