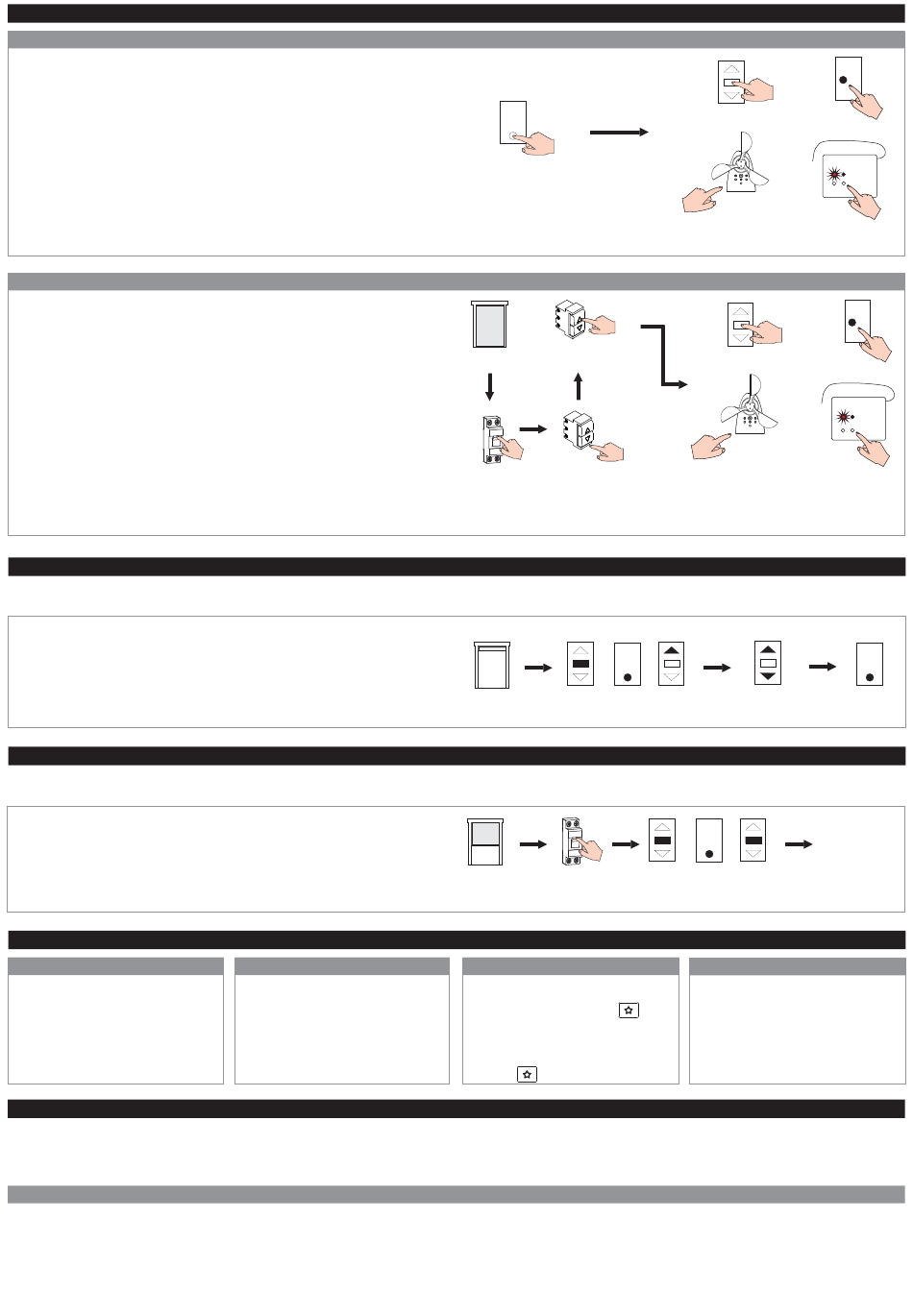

06. HOW TO MEMORIZE/DELETE A RADIO DEVICE

06.1 USING A TRANSMITTER
01. Bring the motor in an intermediate position.
02. Press PROG of an already memorized transmitter for 5 s. The motor performs 2
upward movements.
03. Within 15 seconds, to memorize/delete:
a transmitter: press STOP of transmitter you want to memorize/delete
a sensor: press « P1 » of sensor you want to memorize/delete
a rain sensor: press « P2 » of rain sensor you want to memorize/delete
04. 1 upward movement: device memorized!!
1 downward movement: device deleted!!
2 downward movement: error!!
NOTES:
point 03. in battery powered sensors may be necessary to keep the button pressed up to 10 seconds.
point 04. "error"is reported if the radio code is not received in time, if the receiver's memory is full, if you try to delete the only memorized transmitter, if you try to memorize
more than 1 sun sensor or more than 4 wind sensor
06.2 USING COMMAND BUTTONS
01. Bring the motor in lower limit switch.
02. Disconnect power supply, wait a few seconds; connect power supply.
03. Within 15 seconds, press DOWN 8 times
The motor performs 3 upward movements.
04. Within 15 seconds, press UP 3 times
The motor performs 2 upward movements.
05. Within 15 seconds, to memorize/delete:
a transmitter: press STOP of transmitter you want to memorize/delete
a sensor: press « P1 » of sensor you want to memorize/delete
a rain sensor: press « P2 » of rain sensor you want to memorize/delete
06. 1 upward movement: device memorized!!
1 downward movement: device deleted!!
2 downward movement: error!!
NOTES:
point 05. in battery powered sensors may be necessary to keep the button pressed up to 10 seconds.
point 06. "error"is reported if the radio code is not received in time, if the receiver's memory is full, if you try to delete the only memorized transmitter, if you try to memorize
more than 1 sun sensor or more than 4 wind sensor

07. FINE ADJUSTMENT OF UPPER LIMIT SWITCH

WARNING:
The modification of the upper limit switch is not possible if the upper limit switch has been learned by contact with an obstacle.
01. Bring the motor to the upper limit switch.
02. Disconnect power supply, wait a few seconds; connect power supply.
03. Press in sequence the STOP - PROG - UP
The motor makes 1 downward movement.
04. Using UP and DOWN adjust the upper limit switch.
05. Press PROG . The motor makes 1 down/up movement.
(*) briefly press, max 2 seconds between each press and the next.
08. MODIFY BOTH THE LIMIT SWITCHES
WARNING:
This procedure can change the limit also if it is not completed. For this reason, in case of interruption of the procedure is necessary completely repeat the same.
01. Bring the motor in an intermediate position.
02. Disconnect power supply, wait a few seconds; connect power supply.
03. Press in sequence the STOP - PROG - STOP
The motor makes 1 up/down movement.
04. Follow as described in section 6, point G and subsequent.
(*) briefly press, max 2 seconds between each press and the next.

09. FAVORITE POSITION

ARCO
To memorize:
01. Bring motor in the favorite position
02. Press together STOP and FOR ME
until the motor performs a signal.
To recall:
01. Press FOR ME
10. SUN, WIND, RAIN SENSOR
The sensors generate automatic manoeuvres without notice that can be dangerous. The installer must to inform the end-user and possibly integrate the installation with adequate
security systems. In some situations (eg power loss of motor or sensor, motor failure or sensor, radio noise ...) it is possible that the command imparted by the sensor is not detected by
the motor. The sensor must therefore not be understood as a safety device which ensures the integrity of the roller in every condition, but a means to reduce the possibility that the
shutter being damaged by adverse weather conditions.
10.1 COMPATIBLE SENSORS
The LINE series have integrated radio receiver and require the use of radio sensors. Use the sensor series BLAST or BLAST BT (wind sensor), VEGA or VEGA BT (sun/wind sensor),
X11C (rain sensor) with the power supply AT12. When the sensor detects the presence of wind, the "wind alarm" command is sent: the tuned motors move upward and manual
controls are disabled until the end of the alarm. When the sensor detects the presence of the sun, the "presence of sun" command is sent: the tuned motors move downward. When
the sensor detects the absence of the sun, the "absence of sun" command is sent: the tuned motors move upward. When the sensor detects the presence of rain, the "presence of
rain" command is sent: the tuned motors move up or down, depending on the settings of rain sensor. Each device can store up to 4 sensors wind, only one sun sensor. For more
information, consult the manual of sensors.
(briefly and quickly).
(briefly and quickly).
buttons(*).
buttons(*).
FLUTE, KUADRO, KORT
To memorize:
01. Bring motor in the favorite position
02. Press briefly STOP 6 times and then
hold DOWN until the motor performs
a signal.
To recall:
01. Press STOP 3 times (briefly)
PROG
(5 seconds)
3 x UP
ON
8 x DOWN
STOP PROG
ON
VISIO
To memorize:
01. Bring motor in the favorite position
02. Press together STOP and
the motor performs a signal
To recall:
01. Press FOR ME
04
STOP
P1
STOP
P1
UP
STOP PROG STOP
Other transmitters...
until Consult the manual of your transmitter in
the section about the functions
associated with the buttons.
P1
P2
P2
P1
P2
P2
PROG
Go to section
4, point F
