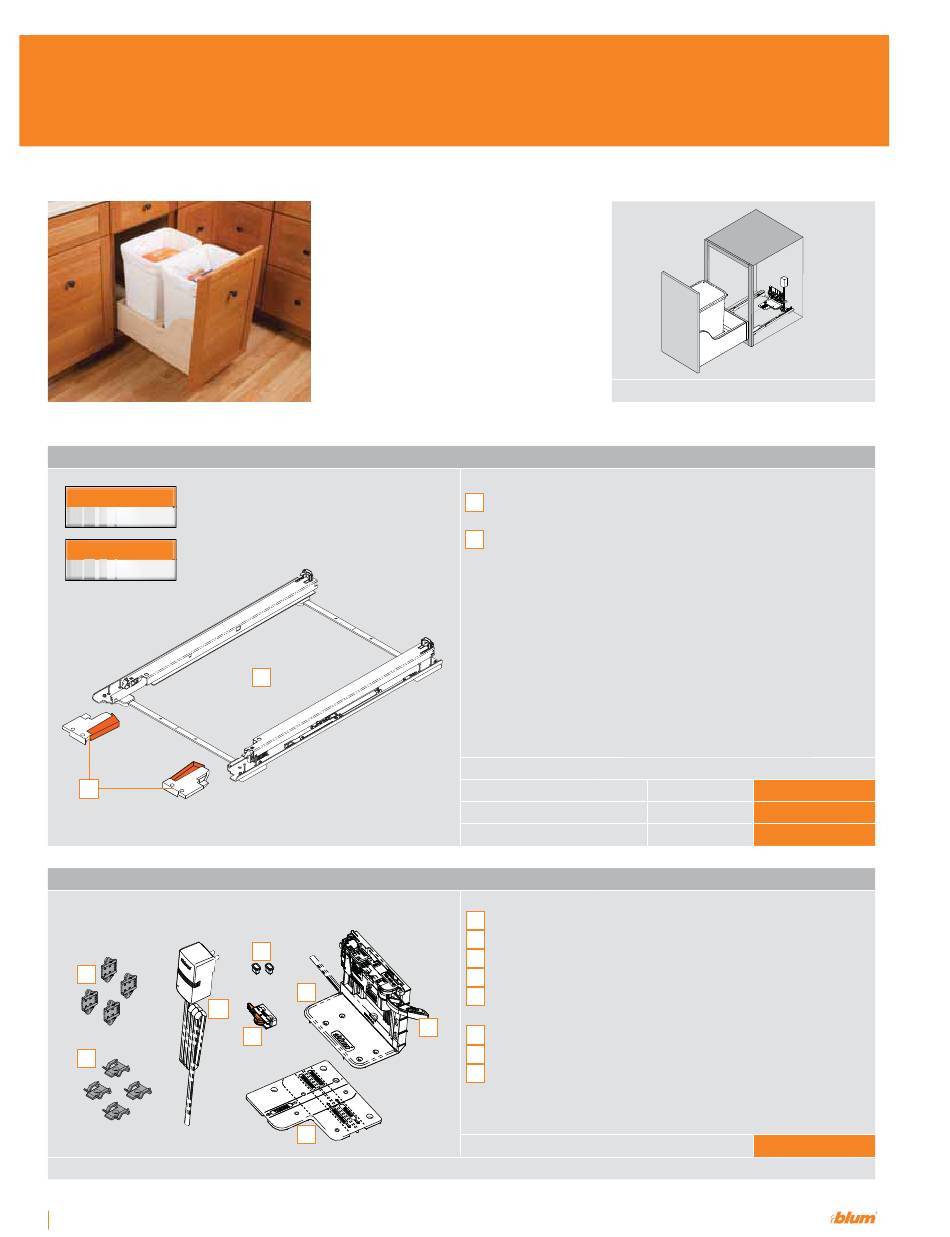

BLUM TANDEM 568R5337BB Quick Manual

TANDEM waste/recycle set
with SERVO-DRIVE
Application
Components
TANDEM waste/recycle set
SERVO-DRIVE
inside
BLUMOTION
inside
2
SERVO-DRIVE waste/recycle set
5
8
NOTE:
Power supply will operate up to two drive units in a double bottom bracket application (second drive unit sold separately)
6
© 2011 Blum, Inc. Subject to technical modifications without notice.
Description
■ Pre-assembled bottom mount set
■ TANDEM plus BLUMOTION heavy duty full
extension concealed drawer runners
■ For 15", 18" and 21" wide cabinets with
12", 15" and 18" minimum opening widths
For 16 (5/8") max. drawer side thickness
■
■ For face frame and panel applications
■ Tool-free height and tilt adjustment
Maximum 6 (1/4") cabinet bottom recess
■
■ 125 lb static, 110 lb dynamic load rating
■ SERVO-DRIVE touch-to-open feature
1
7
2
4
6
3
Set includes:
■ TANDEM plus BLUMOTION heavy duty runner set with
1
pre-mounted #6 x 1" wood screws for installation (qty 8)
■ 2 Standard locking device (qty 2) with #6 x 1/2" truss head wood
screws for installation (qty 4)
■ Installation template and instructions
TANDEM waste/recycle set
For 12" min. opening width
For 15" min. opening width
For 18" min. opening width
Set includes:
■ 1 Drive unit (pre-attached)
■ 2 Double bottom bracket with #6 x 1" wood screws (qty 2)
■ 3 Adapter plate
■ 4 110V plug-in power supply with six feet of universal cable
■ 5 Screw-on distance bumpers (qty 4) with #6 x 5/8" wood screws
for installation (qty 8)
1
■ 6 INSERTA cable connector
■ Cable end protectors (qty 2)
7
■ Cable clips (qty 4)
8
■ Installation template, instructions and user manual
SERVO-DRIVE waste/recycle set
Basic components
NOTE:
Drawer and bins not included
Drawer length
533 (21")
533 (21")
533 (21")
Z10NA20UGUS
Part no.
568R5337BB
568R5337BD
568R5337BF
Part no.
