Installation, Operation
and Maintenance Guide
Matterhorn 880/882
OUR MISSION
To improve health and wellness by actively restoring indoor air
to its pure, natural state where no pollution or contaminants
exist, while reducing energy use and emissions in the process.
IMPORTANT
Save this Document
for Future Reference &
Warranty Information
AtmosAir.com
CAG-06-21-003
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AtmosAir Matterhorn 880
Summary of Contents for AtmosAir Matterhorn 880
- Page 1 Installation, Operation and Maintenance Guide Matterhorn 880/882 OUR MISSION IMPORTANT To improve health and wellness by actively restoring indoor air Save this Document to its pure, natural state where no pollution or contaminants for Future Reference & AtmosAir.com exist, while reducing energy use and emissions in the process.
- Page 2 Installation, Operation & Maintenance Guide Matterhorn 880/882 !IMPORTANT! READ THIS BEFORE STARTING INSTALLATION. DO NOT THROW AWAY THIS GUIDE. For safe installation you MUST: ■ Always disconnect power to the unit before handling any of the components. ■ DO NOT connect to the power before the installation is complete and personnel are aware of the imminent operation.
-
Page 3: Table Of Contents
Installation, Operation & Maintenance Guide Matterhorn 880/882 Table of Contents 01 PRODUCT OVERVIEW Control Panel Diagram 02 INSTALLATION Mechanical Installation Mechanical Installation Continued Duct Cut-Out and Quick Change Plate Procedure Duct Cut-Out and Quick Change Plate Procedure Continued Electrical Installation... -
Page 4: Product Overview

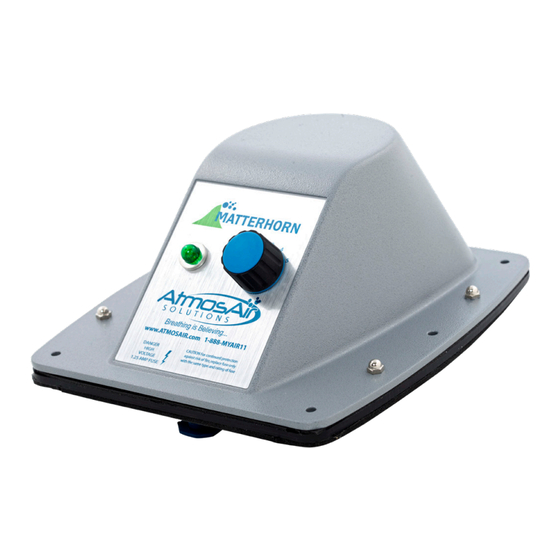

The Matterhorn 880/882 is a 220-250 VAC unit equipped with one (1) tube. However, it is capable of being supplied with two (2) tubes. -
Page 5: Installation
Installation, Operation & Maintenance Guide Matterhorn 880/882 02 INSTALLATION Mechanical Installation AtmosAir 880 series equipment can be mounted in an air handler 1. Carefully remove the equipment from its shipping wall, using the faceplate mounting flange and its weather-strip container. Inspect the main components, gasket, and gasket;... -
Page 6: Mechanical Installation Continued
Installation, Operation & Maintenance Guide Matterhorn 880/882 7. For in-plenum/AHU installation: Mounting varies with Duct Cut-Out Dimensions bracket-style. Follow mounting instructions provided with custom bracket. Typically, provide 101.6mm (4”) of 152.4mm 6” clearance from walls. Contact AtmosAir Sales for bracket. -
Page 7: Duct Cut-Out And Quick Change Plate Procedure
Installation, Operation & Maintenance Guide Matterhorn 880/882 Duct Cut-Out and Quick Change Plate Procedure PLEASE READ ENTIRE PROCEDURE BEFORE STARTING: Notes: ■ Utilize the Quick-Change Plate (Q.C.P.) in thin ducts, fiberboard ducts or where relatively frequent dismounts may occur. ■ Additionally, the Q.C.P. may be used to compress loose fiberglass insulation and prevent damage due to airflow. -
Page 8: Duct Cut-Out And Quick Change Plate Procedure Continued
■ Field-install a power plug outlet or junction box within 8 feet (2.5 m) of the unit(s). ■ Each Matterhorn 880/882 series unit is typically shipped with a 10-foot power cord with a C-30 connector on one end and a 3-prong NEMA 5-15 plug on the other end. The plug can be Go to next step cut off and wires stripped for junction box installations. -
Page 9: Installation Dimensions
Installation, Operation & Maintenance Guide Matterhorn 880/882 Matterhorn 880/882 Installation, Operation, and Maintenance Guide Page 9 Contact Us 1-888-MY-AIR11 CAG-06-21-003 AtmosAir.com 1-888-MY-AIR11 (1-888-692-4711) -
Page 10: Field Wiring Diagram
Installation, Operation & Maintenance Guide Matterhorn 880/882 03 FIELD WIRING DIAGRAM BLACK/BROWN HOT 120V/240VAC M-880/ 24" (61 CM) 50/60 Hz SUPPLY RJ-45 UMBILICAL WHITE/ BLUE= NEUTRAL FIXED GREEN=GROUND AIRFLOW SWITCH AHU/DUCT PRESSURE REMOTE SAMPLING TUBE CONTROL AND MONITOR FROM BMS(BACNET) -
Page 11: Operation
Your by plasma and (lack of) cleanliness of the electrodes. Old local AtmosAir dealer can provide you with an annual or excessively dirty tubes can also put undue stress on the service contract. -
Page 12: Troubleshooting
Installation, Operation & Maintenance Guide Matterhorn 880/882 06 TROUBLESHOOTING In the event that the system is not functioning, follow these 7. If physical inspection has not revealed the cause of failure, steps IN ORDER: one may carefully observe the tubes as the ionization system is turned on to determine whether arcing is 1. -
Page 13: Mechanical Installation Illustrations
07 MECHANICAL INSTALLATION ILLUSTRATIONS Above: Matterhorn 882 Ionization Above: Matterhorn 880 Ionization unit. Here you will see there is one Ionization unit. Here you will see there are Tube installed towards the center of the device. (This should always be installed with the tube closest to the center of the unit.) The remaining unused ‘Spring... -
Page 14: Explanation Of Technology
Installation, Operation & Maintenance Guide Matterhorn 880/882 08 EXPLANATION OF TECHNOLOGY AtmosAir Solutions’ ™ mission is to bring and restore every indoor environment the same clean and pure quality air that is typically found at higher mountain elevations. AtmosAir’s unique and proven air purification process significantly reduces mold, controls the spread of bacteria and airborne viruses, and reduces airborne particles that evade normal filtration solutions. -
Page 15: Product Warranty
Clean Air Group or the dealer where you purchased the unit. Disclaimer: The air purification technology provided by AtmosAir is intended to improve air quality. It is not intended to replace reasonable precautions to prevent the transmission of airborne contaminants. Customer, its employees, invitees and all persons having access to the serviced premises should comply with all applicable public health laws and guidelines issued by federal, state and local governments and health authorities such as the Centers for Disease Control and Prevention (CDC).
