Installation, Operation
and Maintenance Guide
500 Series
OUR MISSION
To improve health and wellness by actively restoring indoor air
to its pure, natural state where no pollution or contaminants
exist, while reducing energy use and emissions in the process.
IMPORTANT
Save this Document
for Future Reference
AtmosAirAsia.com
Advertisement
Table of Contents
Related Manuals for AtmosAir 500 Series
Summary of Contents for AtmosAir 500 Series
- Page 1 Installation, Operation and Maintenance Guide 500 Series OUR MISSION IMPORTANT To improve health and wellness by actively restoring indoor air Save this Document AtmosAirAsia.com to its pure, natural state where no pollution or contaminants for Future Reference exist, while reducing energy use and emissions in the process.
- Page 2 3,000 VAC. ■ Installation of AtmosAir equipment is not to be performed in areas with extreme conditions such as extreme heat or cold, or where water or condensing moisture can impact the system.
- Page 3 Installation, Operation & Maintenance Guide 500 Series Disclaimer: The air purification technologies provided by Clean Air Group are intended to improve indoor air quality. They are not intended as a replacement for reasonable precautions aimed at preventing the transmission of contaminants, airborne or otherwise.
-
Page 4: Table Of Contents
Installation, Operation & Maintenance Guide 500 Series Table of Contents 01 PRODUCT OVERVIEW Control Panel Diagram 02 INSTALLATION Mechanical Installation Mechanical Installation — Mounting Mechanical Installation — Mounting Continued Electrical Installation 03 FIELD WIRING DIAGRAMS 04 OPERATION 05 MAINTENANCE REQUIREMENTS... -
Page 5: Product Overview

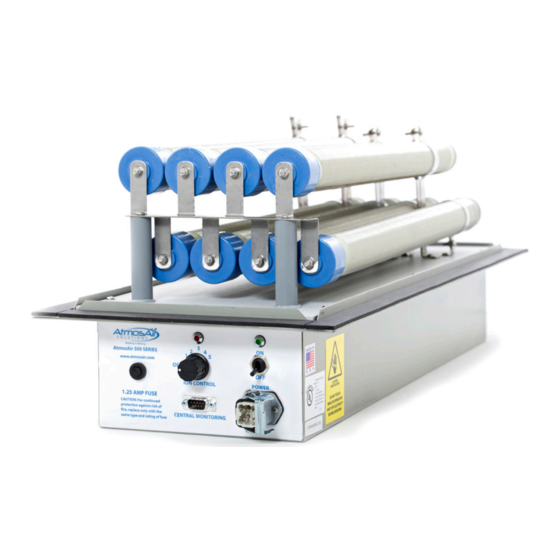

Installation, Operation & Maintenance Guide 500 Series 01 PRODUCT OVERVIEW Control Panel Diagram The AtmosAir 500 series, models 500EC, 500FC and 508FC, AtmosAir 500 Series Control Panel Layout: ionization generators are industrial quality units intended for installation in air conditioning systems or in custom-designed air distribution systems in commercial and industrial facilities. -
Page 6: Installation
AtmosAir). whenever possible; otherwise, perpendicular orientation is The 500 series operates on 110/120 VAC, 50/60 Hz or 220/240 acceptable. If multiple units are installed in the same duct, VAC, 50/60 Hz is available upon request. If using the integral... -
Page 7: Mechanical Installation - Mounting
Installation, Operation & Maintenance Guide 500 Series Mechanical Installation — Mounting Installation, Operation & Maintenance Guide - 500 Series TYPICAL HVAC DUCT Typical HVAC Duct Turning Vanes SINGLE UNIT INSTALLATION Single Unit Installation Min. Distance 152.5mm Duct DUCT Section SECTION... -
Page 8: Mechanical Installation - Mounting Continued
228.6mm As of August 2021, all 500 Series units are equipped with a power conditioning attenuator and thermistor. A fuse rating of 315mA Glass 5mm x 20mm Fast Blow (FSF) for 110/120V and fuse rating of 200mA Glass 5mm x 20mm Fast Blow (FSF) for 220/240V must be used. -
Page 9: Field Wiring Diagrams
Installation, Operation & Maintenance Guide 500 Series 03 FIELD WIRING DIAGRAMS 6.35mm POLYETHYLENE TUBING BLACK (HOT) WIRE TO N/O X 914.4mm PROVIDED NORMALLY OPEN AND COM AIRFLOW SAMPLING TUBE INSERT 152.4mm INTO AHU OR ARMORFLEX DUCT AFTER FAN, AIRFLOW INTO SHIELDED CABLE TUBE END. - Page 10 Installation, Operation & Maintenance Guide 500 Series CENTRAL MONITORING PORT. MALE ON CASEWORK PIN#1 FOR BMS 500mA PIN#5 FUSE FOR BMS MAIN SWITCH ON/OFF 0-10 VDC ION INTENSITY SELECTOR DIAL 20%>100% FIELD WIRING QUICK RELEASE CONNECTOR 120VAC/60HZ 3 WIRE=BLACK/WHITE/GREEN FEMALE DB-9...
-
Page 11: Operation
■ The local AtmosAir dealer can provide you with an annual Tube Replacements: service contract. Bi-annual tube inspections are recommended, in addition to... -
Page 12: Troubleshooting
Installation, Operation & Maintenance Guide 500 Series 06 TROUBLESHOOTING 7. If physical inspection has not revealed the cause of In the event that the system is not functioning, follow these steps IN ORDER: failure, one may carefully observe the tubes as the ionization system is turned on to determine whether 1. -
Page 13: Explanation Of Technology
07 EXPLANATION OF TECHNOLOGY 07 EXPLANATION OF TECHNOLOGY AtmosAir Solutions’ ™ mission is to bring and restore every indoor environment the same clean and pure quality air that is typically found at higher mountain elevations. AtmosAir’s unique and proven air purification process significantly reduces mold, controls the spread of bacteria and airborne viruses, and reduces airborne particles that evade normal filtration solutions.
