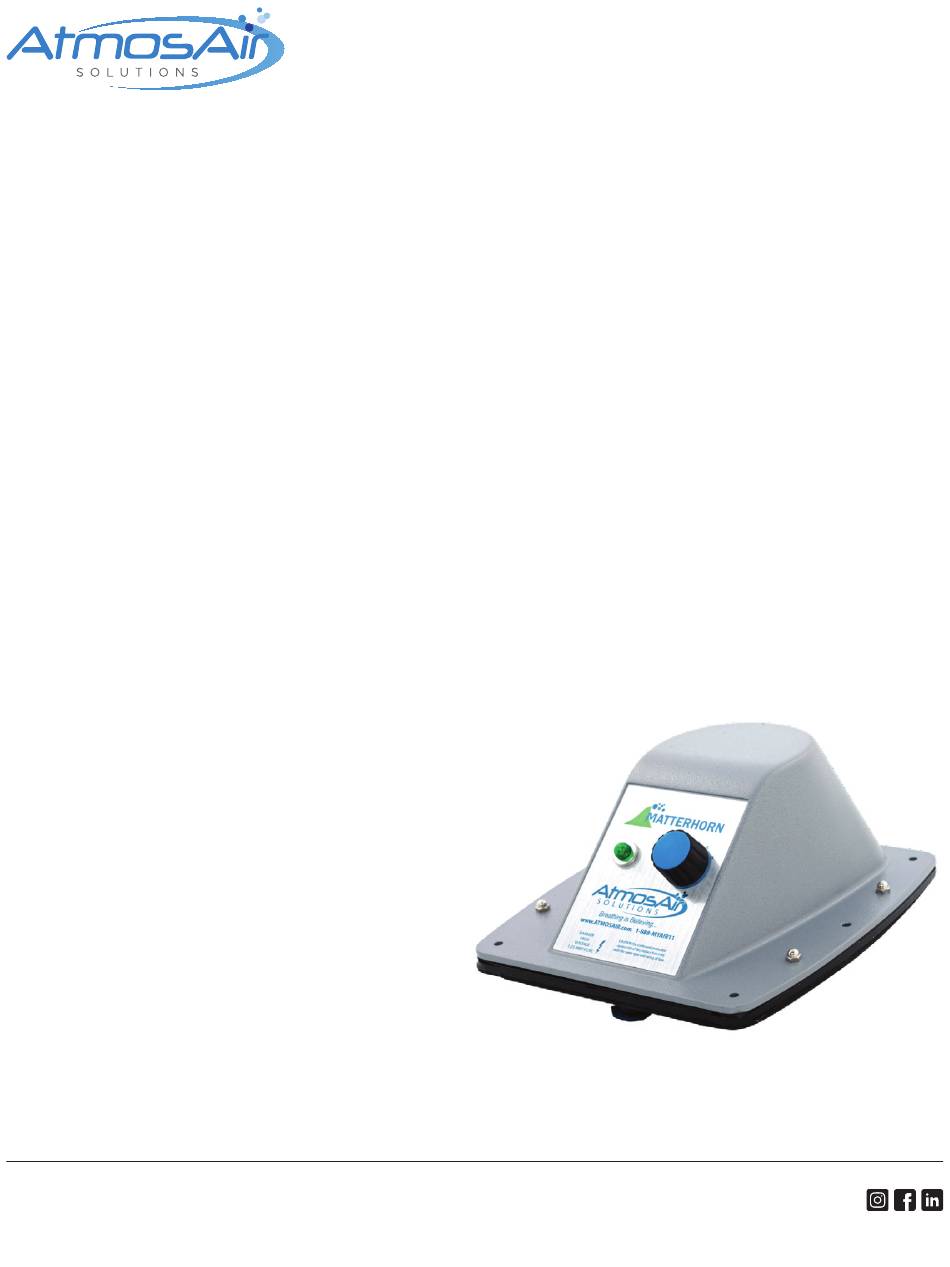

Installation, Operation
and Maintenance Guide
Matterhorn 1000/1002
OUR MISSION
To improve health and wellness by actively restoring indoor air
to its pure, natural state where no pollution or contaminants
exist, while reducing energy use and emissions in the process.
IMPORTANT
Save this Document
for Future Reference &
Warranty Information
AtmosAir.com
CAG-23-10-005
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AtmosAir Matterhorn Series
Summary of Contents for AtmosAir Matterhorn Series
- Page 1 To improve health and wellness by actively restoring indoor air Save this Document to its pure, natural state where no pollution or contaminants for Future Reference & AtmosAir.com exist, while reducing energy use and emissions in the process. Warranty Information CAG-23-10-005...
- Page 2 3,000 VAC. ■ Installation of AtmosAir equipment is not to be performed in areas with extreme conditions such as extreme heat or cold, or where water or condensing moisture can impact the system.
- Page 3 (CDC). Clean Air Group does not maintain that its products will protect people from all modes of transmission of bacteria, viruses or other contaminants, and excludes liability for loss or damage arising from any such claims or the consequences arising out of the application, use or misuse of its products. 1-888-MY-AIR11 CAG-23-10-005 AtmosAir.com...
-
Page 4: Table Of Contents
Duct Cut-Out and Quick Change Plate Procedure Duct Cut-Out and Quick Change Plate Procedure Continued Electrical Installation Installation Dimensions 03 FIELD WIRING DIAGRAM 04 OPERATION 05 MAINTENANCE REQUIREMENTS 06 TROUBLESHOOTING 07 MECHANICAL INSTALLATION ILLUSTRATIONS 08 EXPLANATION OF TECHNOLOGY 09 PRODUCT WARRANTY 1-888-MY-AIR11 CAG-23-10-005 AtmosAir.com... -
Page 5: Product Overview
The Matterhorn 1000/1002 is a 120 or 240 VAC unit equipped with one (1) specified tube. The Matterhorn 1002 is equipped with two (2) specified tubes. The AtmosAir Matterhorn 1000/1002 series equipment is designed for minimal maintenance efforts. The 1000/1002 series has two components that require inspection and maintenance: 1. -
Page 6: Installation
3. Location and Orientation: Install the unit downstream access panel for servicing should be installed over the AtmosAir of filters, coils, and fans with the ionization tubes vertical equipment. Contact AtmosAir Sales for A.W.E. specifications. -
Page 7: Mechanical Installation Continued
Follow mounting instructions provided with custom bracket. Typically, provide 50.8mm (2”) of 152.4mm 6” clearance from walls. Contact AtmosAir Sales for bracket options. 8. Units should be installed to allow easy access for maintenance. Install units so that the 5-step power adjustment knob and status light are easily accessible and 139.7mm... -
Page 8: Duct Cut-Out And Quick Change Plate Procedure
5. Drill out the 6 marked holes with a 5 mm ( 3/16”) or 6.5 mm (¼”) drill bit. NOTE: The Q.C.P. is sized so it will JUST slip into duct at an angle as shown in the image in the bottom-right. Continue on Next page 1-888-MY-AIR11 CAG-23-10-005 AtmosAir.com... -
Page 9: Duct Cut-Out And Quick Change Plate Procedure Continued
10. Angle the Matterhorn into position with the BLUE tube Dimensions on Next Page Electrical Installation AtmosAir Matterhorn 1000/1002 series systems require approximately 6 watts per tube. An internal 1.25-amp, slow-blow fuse protects the unit. ■ Follow proper electrical procedures, guidelines, and codes for providing power to the systems, including requirements for conduit, sufficient ampacity, phase balancing, etc. -
Page 10: Installation Dimensions
Installation, Operation & Maintenance Guide Matterhorn 1000/1002 1-888-MY-AIR11 CAG-23-10-005 AtmosAir.com... -
Page 11: Field Wiring Diagram
FINISH AFS-262 AIR SWITCH TO LINE VOLTAGE REPRODUCTION IN PART OR AS A WHOLE NEXT ASSY USED ON WITHOUT THE WRITTEN PERMISSION OF ATMOSAIR SOLUTIONS IS PROHIBITED. SCALE: 1:3 SHEET 1 OF 1 APPLICATION DO NOT SCALE DRAWING 1-888-MY-AIR11 CAG-23-10-005... -
Page 12: Operation
A tube replacements once every two years as the production bi annual tube replacement is required. Your local AtmosAir efficiency slowly declines over time due to the stress caused dealer can provide you with a service contract. -
Page 13: Troubleshooting
(See step 4 for more information on this eliminated, the system should be serviced by a qualified process.) If the voltages are lower than expected, check AtmosAir technician. Please see contact information at the that all the connections are secure and rust-free; also bottom of this page. -
Page 14: Mechanical Installation Illustrations
With the power plug removed, use Once popped loose, pull the drawer The ‘operating’ fuse is now exposed, a flathead screwdriver to pop the completely out towards you. along with the spare fuse (right). fuse drawer towards you. 1-888-MY-AIR11 CAG-23-10-005 AtmosAir.com... -
Page 15: Explanation Of Technology
Installation, Operation & Maintenance Guide Matterhorn 1000/1002 08 EXPLANATION OF TECHNOLOGY AtmosAir Solutions’ ™ mission is to bring and restore every indoor environment the same clean and pure quality air that is typically found at higher mountain elevations. AtmosAir’s unique and proven air purification process significantly reduces mold, controls the spread of bacteria and airborne viruses, and reduces airborne particles that evade normal filtration solutions. -
Page 16: Product Warranty
Installation, Operation & Maintenance Guide Matterhorn 1000/1002 09 PRODUCT WARRANTY 1-888-MY-AIR11 CAG-23-10-005 AtmosAir.com...
