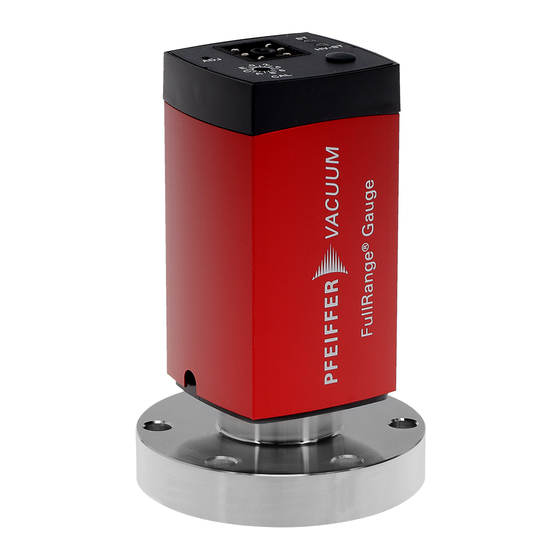

Pfeiffer Vacuum IKR 360 Operating Instructions Manual

Compact cold cathode gauges, compact fullrange gauges
Hide thumbs Also See for IKR 360:
Table of Contents

Advertisement

Quick Links

A P A S S I O N F O R P E R F E C T I O N
IKR 360, IKR 360 C, IKR 361, IKR 361 C
Compact Cold Cathode Gauges
PKR 360. PKR 360 C, PKR 361, PKR 361 C
®
Compact FullRange
Gauges
Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IKR 360 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pfeiffer Vacuum IKR 360

Summary of Contents for Pfeiffer Vacuum IKR 360

  • Page 1 A P A S S I O N F O R P E R F E C T I O N IKR 360, IKR 360 C, IKR 361, IKR 361 C Compact Cold Cathode Gauges PKR 360. PKR 360 C, PKR 361, PKR 361 C ®...
