Quick Start Guide
60GHz Access Point
MLTG-CN
1
1.

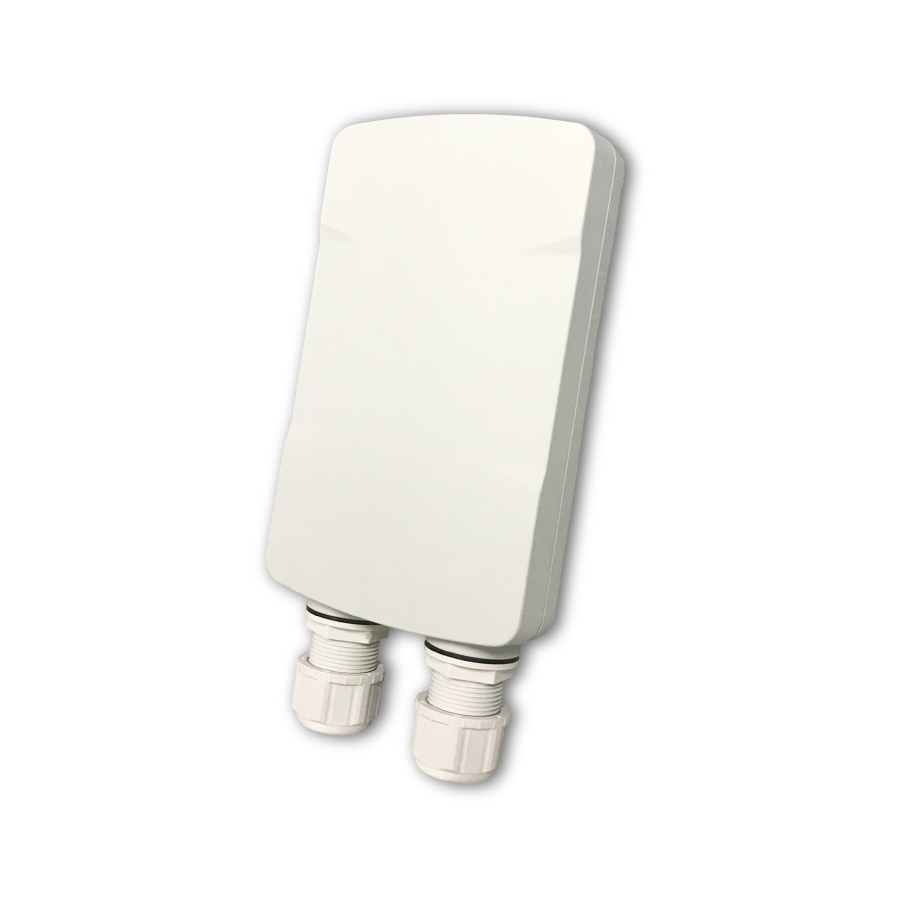

60GHz Access Point MLTG-CN
2.
1 x 24 W PoE injector
3.
1 x Power cord
4.
2 x Steel-band clamps for pole mount (3 inch diameter max.)
www.edge-core.com

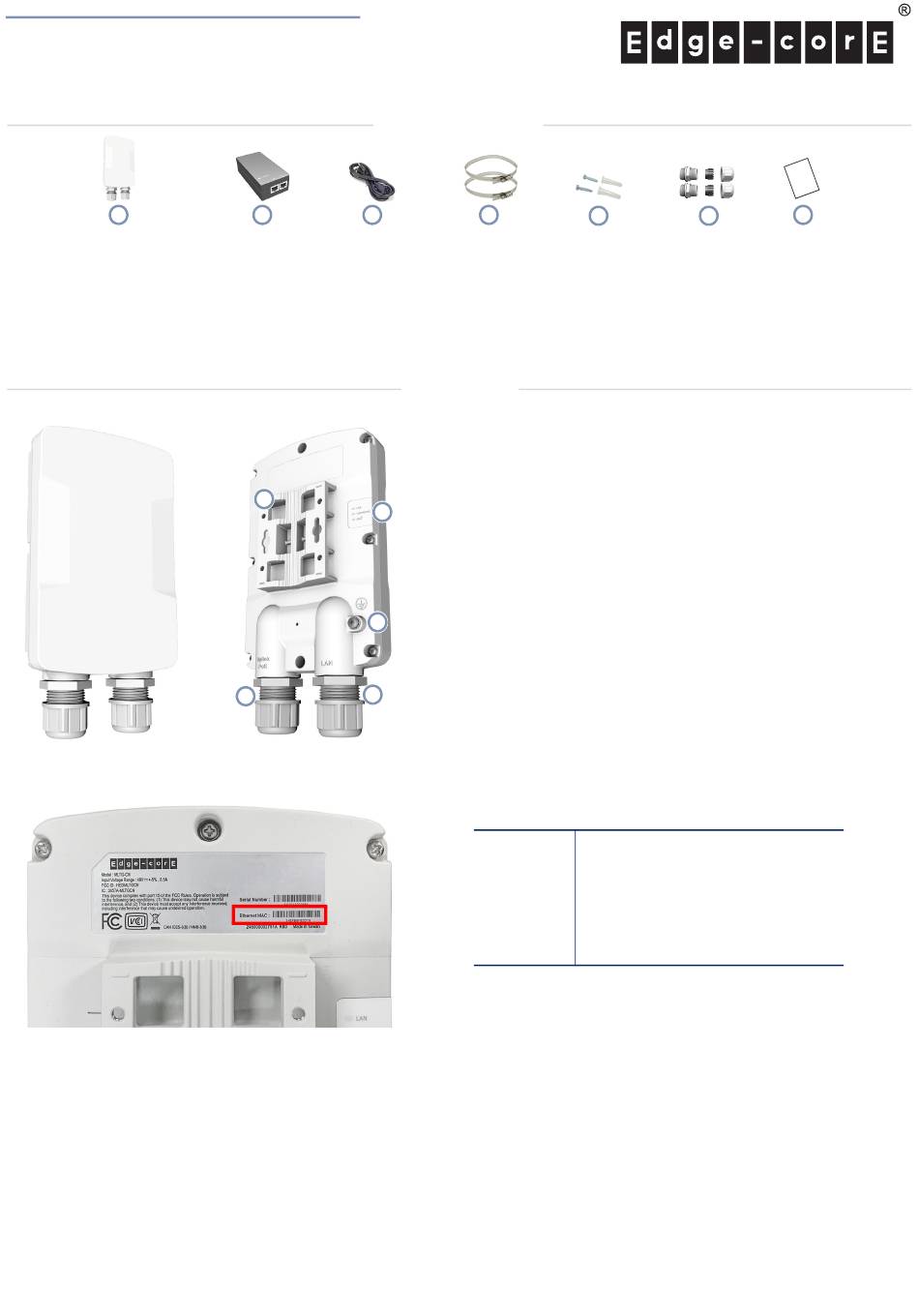

Package Contents

2
3
1
2
3
4
5
4
5.
2 x Screws with nylon expansion plugs for wall mount
6.
2 x Cable glands
7.
Documentation QR-code card

Overview

1.
Integrated pole and wall mounting bracket.
2.
System LED Indicators:
LAN: On (LAN port link), Blinking (activity).
Uplink(PoE): On (Uplink PoE port link), Blinking (activity).
Slow blink during system boot up.
60G: On (60GHz wireless link), Blinking (activity).
3.
Grounding Screw: For ground wire connection.
4.
LAN Port: Connects to LAN devices.
5.
Uplink PoE Port: Connects to PoE injector and LAN devices.
Interface
Uplink PoE
LAN
60 GHz
– 1 –
5
6
MAC Address
Ethernet MAC
(Printed on the device's label)
Ethernet MAC + 1
Ethernet MAC + 2
7
E012021-MR-R02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MLTG-CN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Edge-Core MLTG-CN

  • Page 1 Quick Start Guide 60GHz Access Point MLTG-CN Package Contents 60GHz Access Point MLTG-CN 2 x Screws with nylon expansion plugs for wall mount 1 x 24 W PoE injector 2 x Cable glands 1 x Power cord Documentation QR-code card 2 x Steel-band clamps for pole mount (3 inch diameter max.)
  • Page 2 Ground the MLTG-CN Feed the steel-band clamps through the pole-mount bracket points on the back of the MLTG-CN and then lightly fasten them around the pole. Align the MLTG-CN antenna with a nearby Distribution Node before tightening the clamps securely.
  • Page 3 Using the LAN Port Connect a PC directly to the MLTG-CN’s LAN port. Set the PC IP address to be on the same subnet as the MLTG-CN LAN port default IP address. The PC address must start 192.168.2.x with subnet mask 255.255.255.0).
  • Page 4 The Declaration of Conformity (DoC) can be obtained from This equipment complies with FCC radiation exposure limits set forth for www.edge-core.com -> support -> download. an uncontrolled environment. This equipment should be installed and operated with minimum distance 22 cm between the radiator and your Japan VCCI Statement body.
  • Page 5 Quick Start Guide Hardware Specifications AP Chassis Size (WxDxH) 177.3 x 111.6 x 43 mm (6.98 x 4.39 x 1.69 in) Weight 518 g (1.14 lb) Temperature Operating: -20° C to 55° C (-4° F to 131° F) Storage: -20° C to 70° C (-4° F to 158° F) Humidity Operating: 5% to 95% (non-condensing) Network Interfaces...
