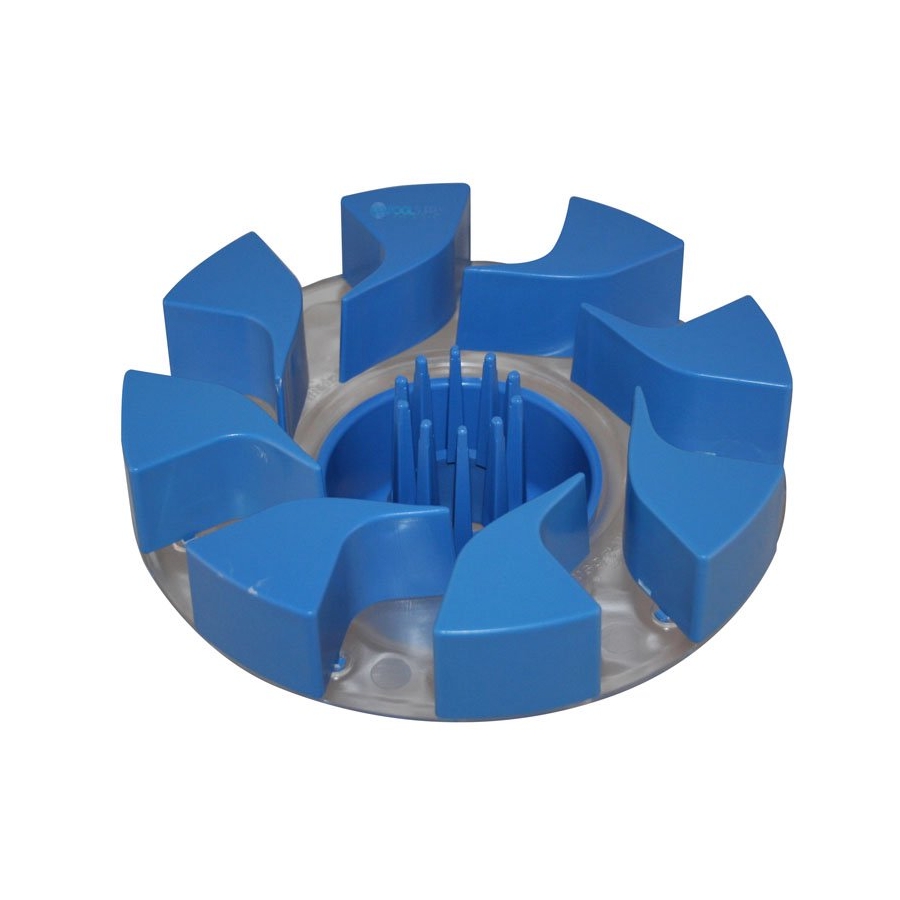

Zodiac SkimmerMotion SKM-10 Installation Manual

Installation Guide
1

Unpack

Make sure you have all the above parts. If
anything is missing, contact Only About
Innovations® as described on the back of
this sheet.
After unpacking the hose, Stretch it (this is very
important). The SkimmerMotion® hose should
be as straight as possible.
2

Turn Pump Off

WARNING: Always turn off the pool
pump and any electrical source from
the pool before installing your
SkimmerMotion®. Also, turn off your
filter system.
Baracuda® is a trademark of Zodiac Pool Care, Inc.
Zodiac® is a registered trademark of Zodiac International.
Hayward® is a registered trademark of Hayward Industries, Inc.
Kreepy Krauly® is a trademark of Pentair Water Pool and Spa, Inc.
3

Disconnect

Disconnect the main hose from your pool
cleaner (Baracuda®, Kreepy Krauly®, Hay-
ward® etc.)
REMEMBER: Your pool cleaner's hose must be 1¼" diame-
ter for it to work properly with your new SkimmerMo-
tion®
4
Tee-Joint

Connect Tee-Joint

Connect the Tee ("T") that comes with
your SkimmerMotion®.
NEED HELP: Check our Web Site FAQ / CONTACT support@onlyaboutinnovation.com / CALL: +1 (305) 677-2644
5

Reconnect

Reconnect your original pool hose (lead)
into the Tee placed on Step 4.
6

Attach Skimmer

Connect the other end of the Skimmer
hose to your new SkimmerMotion®.
7

Insert Basket

Lastly, insert the basket provided inside
your SkimmerMotion®. Set the suction
power setting PIN to #2
8

Place O-ring

The o-ring provided is to avoid bigger
leaves to obstruct the center of the
basket. Check the o-ring stays ¼"
above water level
