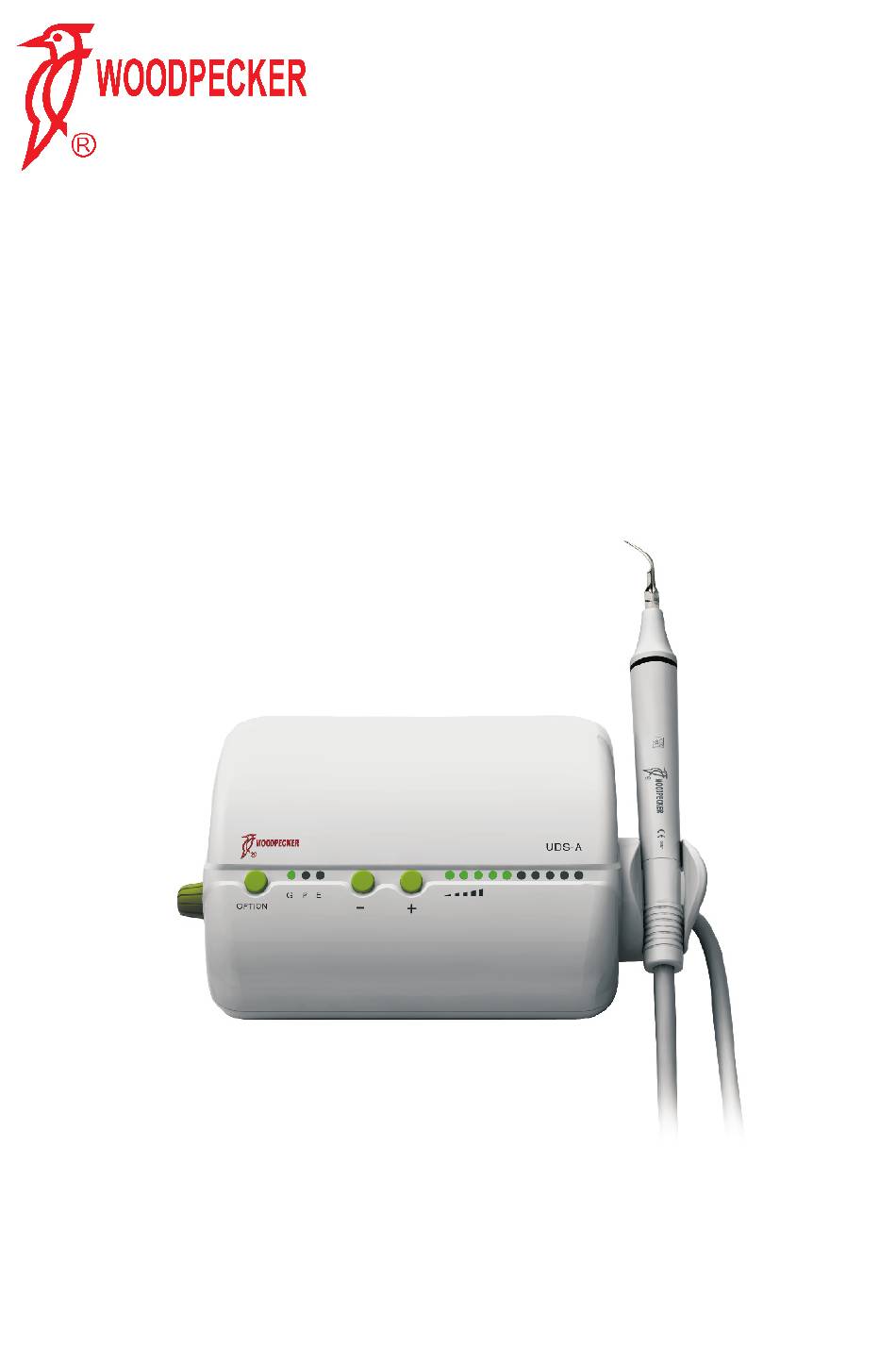

ULTRASONIC PIEZO SCALER
UDS-A
INSTRUCTION MANUAL
(Please read this manual before operating)
Guilin Woodpecker Medical Instrument Co.,Ltd.
Website:www.glwoodpecker.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UDS-A and is the answer not in the manual?

Questions and answers

Summary of Contents for Woodpecker UDS-A

  • Page 1 ULTRASONIC PIEZO SCALER UDS-A INSTRUCTION MANUAL (Please read this manual before operating) Guilin Woodpecker Medical Instrument Co.,Ltd. Website:www.glwoodpecker.com...
  • Page 2: Table Of Contents

    Contents 1.The installation and components of equipment 1.1 Instruction 1.2 Components 1.3 The main technical specifications 1.4 Installation of the main components 2.Product function and operation 2.1 Scaling function 2.2 Endo function 3.Sterilization and maintenance 3.1 Sterilization of detachable handpiece 3.2 Sterilization of scaling tips,endo wrench and endochuck 3.3 Sterilization of torque wrench 3.4 Cleaning of tips,endochuck,torque wrench and endo wrench...
  • Page 3: The Installation And Components Of Equipment

    The product is mainly used for teeth cleaning and also an indispensable equipment for tooth disease prevention and treatment. The product UDS-A ultrasonic piezo scaler has scaling , perio and endo functions. It contains the following features: 1.Automatic frequency tracking ensures that the machine always works on the best frequency and more steadily.
  • Page 4: Components

    Qualified certificate Endochuck Endo wrench The Woodpecker scaling tips and their accessories are not listed in this instruction manual completely. The detail can be found in the instruction for tips and packing list attached to the machine. 1.2.2 Product performance and structure a)Ultrasonic piezo scaler is composed of electrocircuit, waterway and...
  • Page 5: The Main Technical Specifications

    1.3 The main technical specifications 1.3.1 Technical specifications of ultrasonic scaler a)Power source Input: 100V-240V~ 50Hz/60Hz 1.2A (max) b)main unit input: 30VDC 1.3A c)Output primary tip Vibration excursion:≤100μm d)Output half-excursion force:<2N ± e)Output tip Vibration frequency:28kHz 3kHz f)Output power: 3W ~20W g)main unit fuse: 250V/ T 1.6AL h)power source fuse: 250V /T 2.0AL i)Water pressure: 0.1bar~5bar (0.01MPa ~0.5MPa)
  • Page 6: Installation Of The Main Components

    1.4 Installation of the main components 1.4.1 Sketch map for installation and connection. a)The components of the equipment Picture 1 Power indicator Endo indicator Perio indicator Scaling indicator Options switch Increasing power Decreasing power switch switch Water control knob Power s witch Socket for foot switch Water entrance...
  • Page 7 、 )Sketch map for connection of foot switch power supply and main unit Picture 2 Foot switch Plug of foot switch Plug of foot switch Foot switch ocket Power supply Input voltage 100V-240V~ Power cord plug Power cord plug Socket for power supply c )Sketch map for connection of wate supply system Picture 3 Cap of one-way connector...
  • Page 8 d )Sketch map for connection of detachable handpiece Picture 4 Seal Nipple Handpiece Shaft The connector of cable Handpiece Autoclavable Handpiece Brand CE mark The connector Seal symbol Cable of cable Nipple e )Sketch map for how to install tip and endochuck with wrench Picture 5 Screw on Torque wrench...
  • Page 9: Product Function And Operation

    2.Product function and usage 2.1 Scaling function 2.1.1Usage a) Open the packing box, make sure that all the parts and accessories are complete according to the packing list. Take the main unit out of the box and put it on a stable plane. b) Turn the water control switch to the max based on symbol as shown as 3.5.2[note 1].
  • Page 10 m) During the clinical treatment, be sure not to make the end of tip touch the teeth vertically and not to make the tip overexert on the surface of the teeth in case of hurting the teeth and damaging the tip. n) After finishing operation, keep the machine working for 30 seconds on the water supply condition in order to clean the handpiece and the scaling tip.
  • Page 11: Endo Function

    direction. ④ Sterilize it in sterilizer after each treatment. ⑤ The torque wrench must be cooled naturally after sterilization to avoid scald when using next time. ⑥ Keep the torque wrench in a cool, dry and ventilated place and be clean. c) Precaution The following sterilizing methods are forbidden.
  • Page 12: Sterilization And Maintenance

    3.Sterilization and maintenance 3.1 Sterilization of detachable handpiece 3.1.1 Autoclaved in high temperature/pressure: a)121 C/1bar(0.1MPa), 20 minutes b)135 C/2.2bar (0.22MPa), 18minutes c) Pull out the handpiece and unscrew scaling tip and endochuck after each operating. d) Pack the handpiece with sterile gauze or sterile bag before sterilizing. e) Reuse handpiece after it cools naturally in case of burning hand.
  • Page 13: Cleaning Of Tips,Endochuck,Torque Wrench And Endo Wrench

    a)The torque wrench and endo wrench can be disinfected by neutral non- corrosive disinfector for cleaning and sterilizing, or be sterilized in high temperature and pressure. b) The following sterilization ways for torque wrench are forbidden: ① Braise in liquor; ②...
  • Page 14 There is still water There is impurity in the flowing out after the Contact our dealers or us electric-magnetic valve power is off. The handpiece The water control switch is Turn the water control switch to a higher grade【note 2 】 in a low setting generates heat The water pressure is not...
  • Page 15: Precaution

    ① Cut the water line at a distance of 10cm~20cm from the water entrance. ② Turn on the electricity and get through the electricity. ③ Connect the three-way syringe of dental unit to the water line. ④ Disassemble the tip or handpiece. ⑤...
  • Page 16: Contraindication

    4.1.14 The internal screw thread of the scaling tips produced by some manufac- tures is coarse, rusty and collapsed. This will damage the external screw thread of the handpiece irretrievably. Please use "Woodpecker" brand scaling tips. 4.1.15 This model was only matched the adapter of our company.
  • Page 17: Working Condition

    4.5 Working condition a)Environment temperature:5 C~40 C b)Relative humidity:≤80% tmosphere pressure : 50kPa~106kPa c)A 5.After-service We offer one year's free repair to the equipment from the date when it is sold and lifetime maintenance. The repair of the equipment should be carried out by our professional technician.
  • Page 18: Environmental Protection

    7.Environmental Protection There is not any harm factor in our product. You can deal with it based on the local law. We reserve the right to change the design of the equipment , the technique , fittings , the instruction manual and the content of the original packing list at any time without notice .
  • Page 19 Guidance and manufacturer’s declaration - electromagnetic emissions The model UDS-A is intended for use in the electromagnetic environment specified below. The customer or the user of the model UDS-A should assure that it is used in such an environment. Compliance...
  • Page 20 If the measured field strength in the location in which the model UDS-A is used exceeds the applicable RF compliance level above, the model UDS-A should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the model UDS-A.
  • Page 21 RF communications equipment and the model UDS-A The model UDS-A is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the model UDS-A can help prevent...
  • Page 22 Guilin Woodpecker Medical Instrument Co.,Ltd. Add:2 Fuxing Road, Guilin, Guangxi , China Tel: 86-773-5855350(English service for 24 hours) 86-773-5831172 Fax:86-773-5822450 E-mail:woodpecker@gx163.net Website:www.glwoodpecker.com (Edition Copyright WOODPECKER ,Mar.22,2008)...
